07-18 Wrangler JK Alpine IR Long Arm & Bracket Kit 8-Arm 3-6 Inch Lift TeraFlex - 1315011 - TeraFlex

TeraFlex
FNNT_1315011
1315011
Lift Kits
$3,077.97

customers are viewing this product
07-18 Wrangler JK Alpine IR Long Arm & Bracket Kit 8-Arm 3-6 Inch Lift TeraFlex - 1315011 - TeraFlex

TeraFlex JK: Alpine IR Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts.

Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance. CAD-engineered TeraFlex JK: Long Arm Brackets are designed for maximum strength.

By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Can be added to any existing suspension lift.

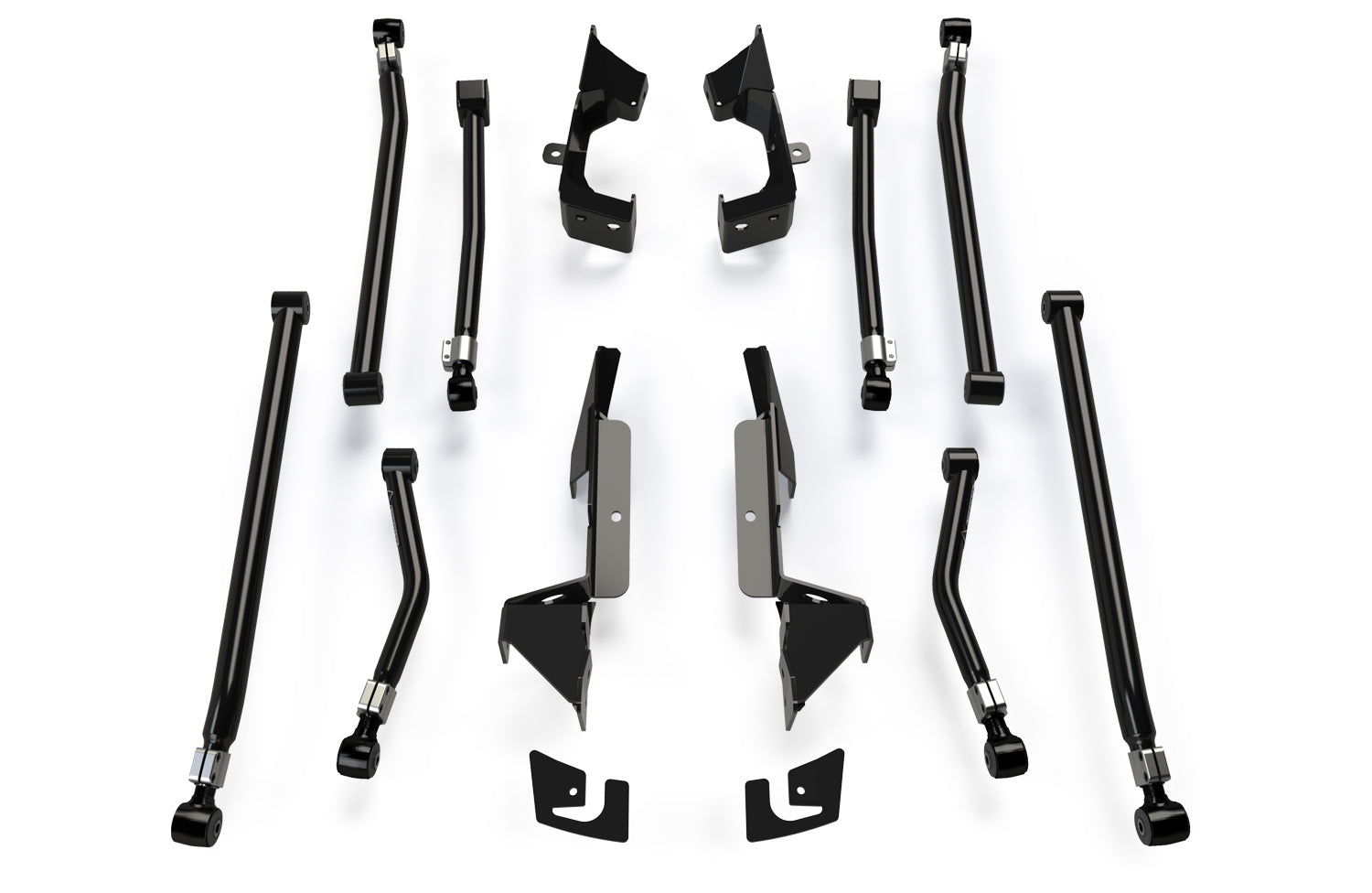

Includes:

  • Alpine IR Long Arm Kit - 8-Arm (# 1415612):
    • Arm Pair - Front Upper (# 1315570)
    • Arm Pair - Front Lower (# 1315580)
    • Arm Pair - Rear Upper (# 1315590)
    • Arm Pair - Rear Lower (# 1315600)
  • Long Arm Bracket Kit (# 1957000):
    • Brackets - Front
    • Brackets - Rear
    • Gussets - Rear
    • All necessary hardware

Fitment:

  • JK Wrangler (2-door)
  • JK Wrangler Unlimited (4-door)

Specs:

  • Lift Height: 3-6 Inch

Control Arm Specs:

  • JK: Alpine IR Long Arm Pair - Front Upper (# 1315570):
    • Tube Diameter & Wall: 42mm x 4mm
    • Factory Length: 18-3/4 Inch
    • Min. Length: 27-3/8 Inch
    • Max. Length: 28-7/8 Inch
    • Bolt - Axle: 12mm
    • Bolt - Frame: 14mm
    • IR Bushing - Axle: OEM
    • IR Bushing - Frame: 611019
  • JK: Alpine IR Long Arm Pair - Front Lower (# 1315580):
    • Tube Diameter & Wall: 50mm x 5mm
    • Factory Length: 22-5/8 Inch
    • Min. Length: 33-3/4 Inch
    • Max. Length: 35-1/4 Inch
    • Bolt - Both: 14mm
    • IR Bushing - Both: 611015
  • JK: Alpine IR Long Arm Pair - Rear Upper (# 1315590):
    • Tube Diameter & Wall: 42mm x 4mm
    • Factory Length: 17-7/16 Inch
    • Min. Length: 20 Inch
    • Max. Length: 21-1/2 Inch
    • Bolt - Both: 14mm
    • IR Bushing - Both: 611016
  • JK: Alpine IR Long Arm Pair - Rear Lower (# 1315600):
    • Tube Diameter & Wall: 50mm x 5mm
    • Factory Length: 19-3/4 Inch
    • Min. Length: 35-3/4 Inch
    • Max. Length: 37-1/4 Inch
    • Bolt - Both: 14mm
    • IR Bushing - Both: 611015


Specifications:

Country of Origin Taiwan
Sold As Kit
UPC 843885051336
Availability Available
Universal No
Harmonized Tariff Code 8708.80
NAFTA B


This Part Fits:

Year Make Model Submodel Notes
2007 Jeep Wrangler X
2008 Jeep Wrangler X
2009 Jeep Wrangler X
2010 Jeep Wrangler X
2007 Jeep Wrangler Rubicon
2008 Jeep Wrangler Rubicon
2009 Jeep Wrangler Rubicon
2010 Jeep Wrangler Rubicon
2011 Jeep Wrangler Rubicon
2012 Jeep Wrangler Rubicon
2013 Jeep Wrangler Rubicon
2014 Jeep Wrangler Rubicon
2015 Jeep Wrangler Rubicon
2016 Jeep Wrangler Rubicon
2017 Jeep Wrangler Rubicon
2007 Jeep Wrangler Unlimited X
2008 Jeep Wrangler Unlimited X
2009 Jeep Wrangler Unlimited X
2010 Jeep Wrangler Unlimited X
2007 Jeep Wrangler Sahara
2008 Jeep Wrangler Sahara
2009 Jeep Wrangler Sahara
2010 Jeep Wrangler Sahara
2011 Jeep Wrangler Sahara
2012 Jeep Wrangler Sahara
2013 Jeep Wrangler Sahara
2014 Jeep Wrangler Sahara
2015 Jeep Wrangler Sahara
2016 Jeep Wrangler Sahara
2017 Jeep Wrangler Sahara
2007 Jeep Wrangler Unlimited Sahara
2008 Jeep Wrangler Unlimited Sahara
2009 Jeep Wrangler Unlimited Sahara
2010 Jeep Wrangler Unlimited Sahara
2011 Jeep Wrangler Unlimited Sahara
2012 Jeep Wrangler Unlimited Sahara
2013 Jeep Wrangler Unlimited Sahara
2014 Jeep Wrangler Unlimited Sahara
2015 Jeep Wrangler Unlimited Sahara
2016 Jeep Wrangler Unlimited Sahara
2017 Jeep Wrangler Unlimited Sahara
2007 Jeep Wrangler Unlimited Rubicon
2008 Jeep Wrangler Unlimited Rubicon
2009 Jeep Wrangler Unlimited Rubicon
2010 Jeep Wrangler Unlimited Rubicon
2011 Jeep Wrangler Unlimited Rubicon
2012 Jeep Wrangler Unlimited Rubicon
2013 Jeep Wrangler Unlimited Rubicon
2014 Jeep Wrangler Unlimited Rubicon
2015 Jeep Wrangler Unlimited Rubicon
2016 Jeep Wrangler Unlimited Rubicon
2017 Jeep Wrangler Unlimited Rubicon
2010 Jeep Wrangler Unlimited Sport
2011 Jeep Wrangler Unlimited Sport
2012 Jeep Wrangler Unlimited Sport
2013 Jeep Wrangler Unlimited Sport
2014 Jeep Wrangler Unlimited Sport
2015 Jeep Wrangler Unlimited Sport
2016 Jeep Wrangler Unlimited Sport
2017 Jeep Wrangler Unlimited Sport
2010 Jeep Wrangler Sport
2011 Jeep Wrangler Sport
2012 Jeep Wrangler Sport
2013 Jeep Wrangler Sport
2014 Jeep Wrangler Sport
2015 Jeep Wrangler Sport
2016 Jeep Wrangler Sport
2017 Jeep Wrangler Sport
2011 Jeep Wrangler Unlimited 70th Anniversary
2011 Jeep Wrangler 70th Anniversary
2016 Jeep Wrangler 75th Anniversary
2016 Jeep Wrangler Sport S
2016 Jeep Wrangler Unlimited Sport S
2016 Jeep Wrangler Unlimited 75th Anniversary
2018 Jeep Wrangler JK Sport S
2018 Jeep Wrangler JK Unlimited Rubicon
2018 Jeep Wrangler JK Sport
2018 Jeep Wrangler JK Unlimited Sahara
2018 Jeep Wrangler JK Sahara
2018 Jeep Wrangler JK Unlimited Sport
2018 Jeep Wrangler JK Unlimited Sport S
2018 Jeep Wrangler JK Rubicon
