1" Driver Horn Kit 120 Watts 1" Phenolic 8-Ohm Vc (PRO-DR1P +PRO-H44/BK)

DS18
PRO-DR1PK44
Car Audio : Drivers
$32.95

Secure Checkout

  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

customers are viewing this product
1" Driver Horn Kit 120 Watts 1" Phenolic 8-Ohm Vc (PRO-DR1P +PRO-H44/BK)

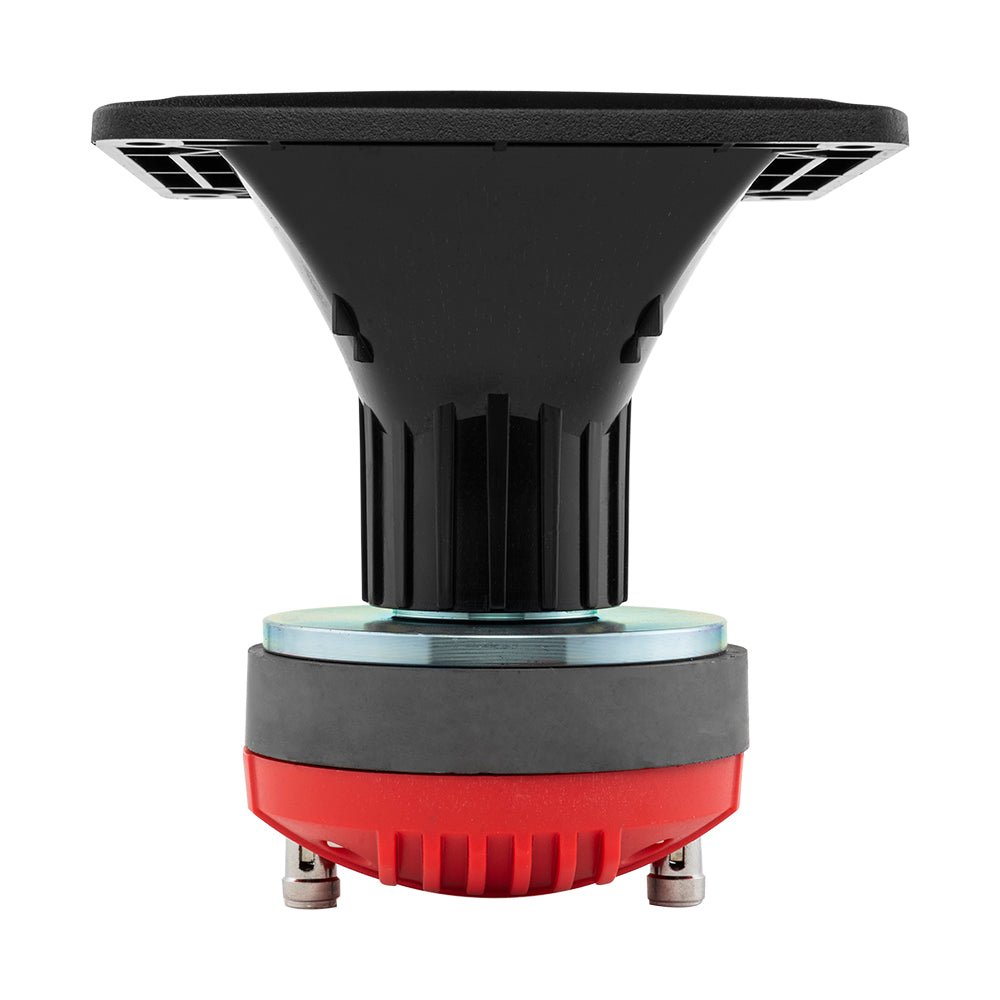

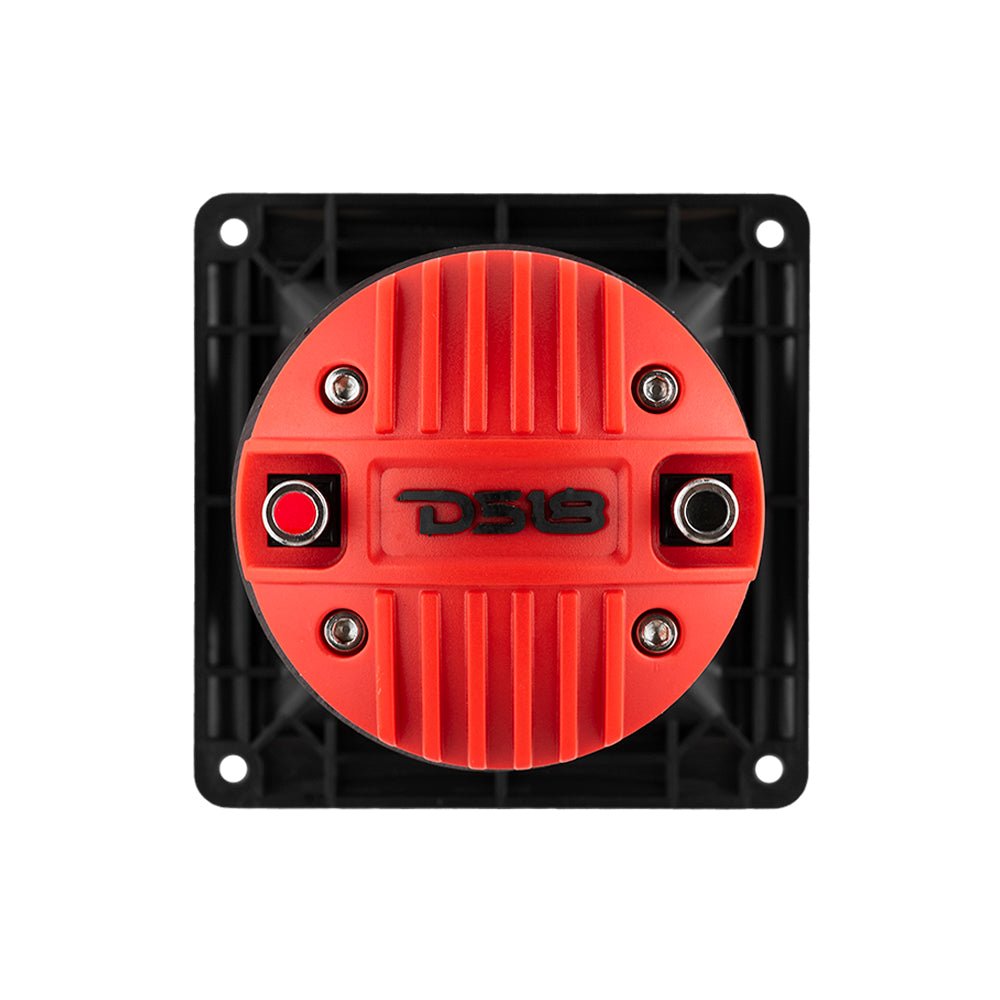

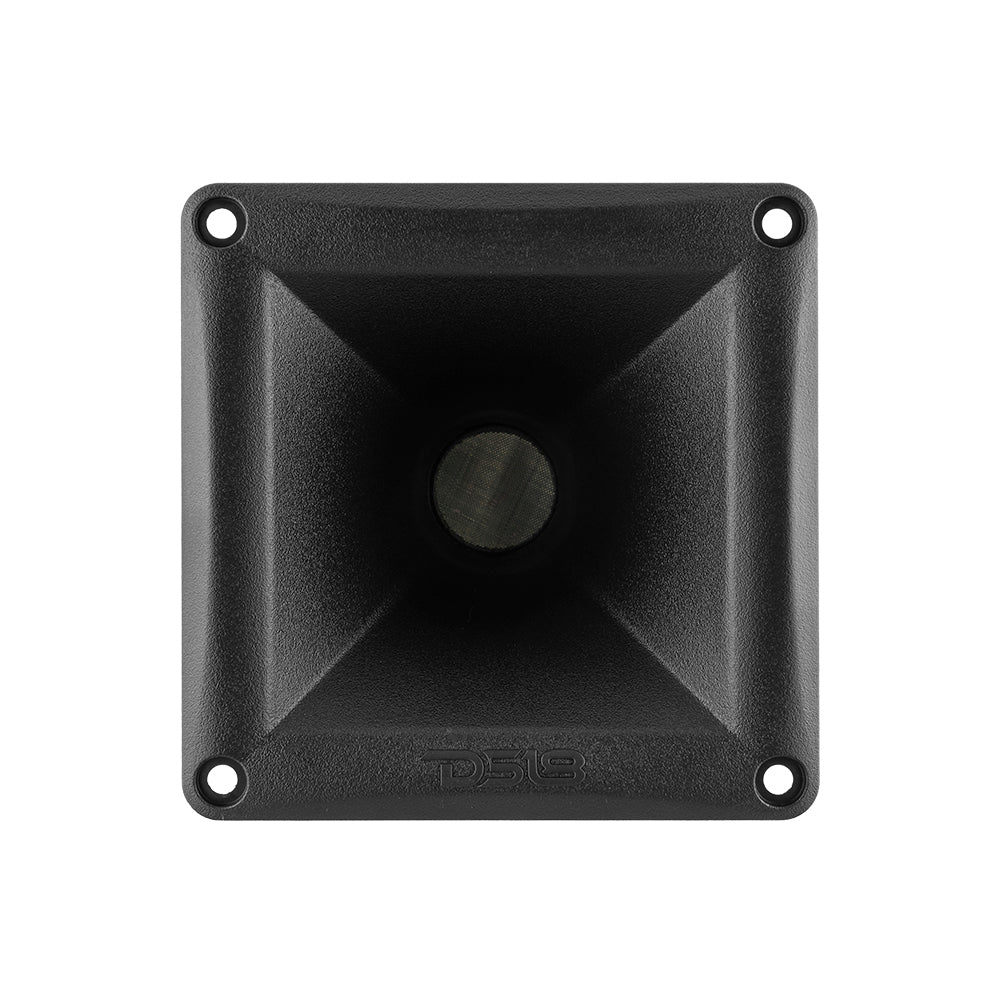

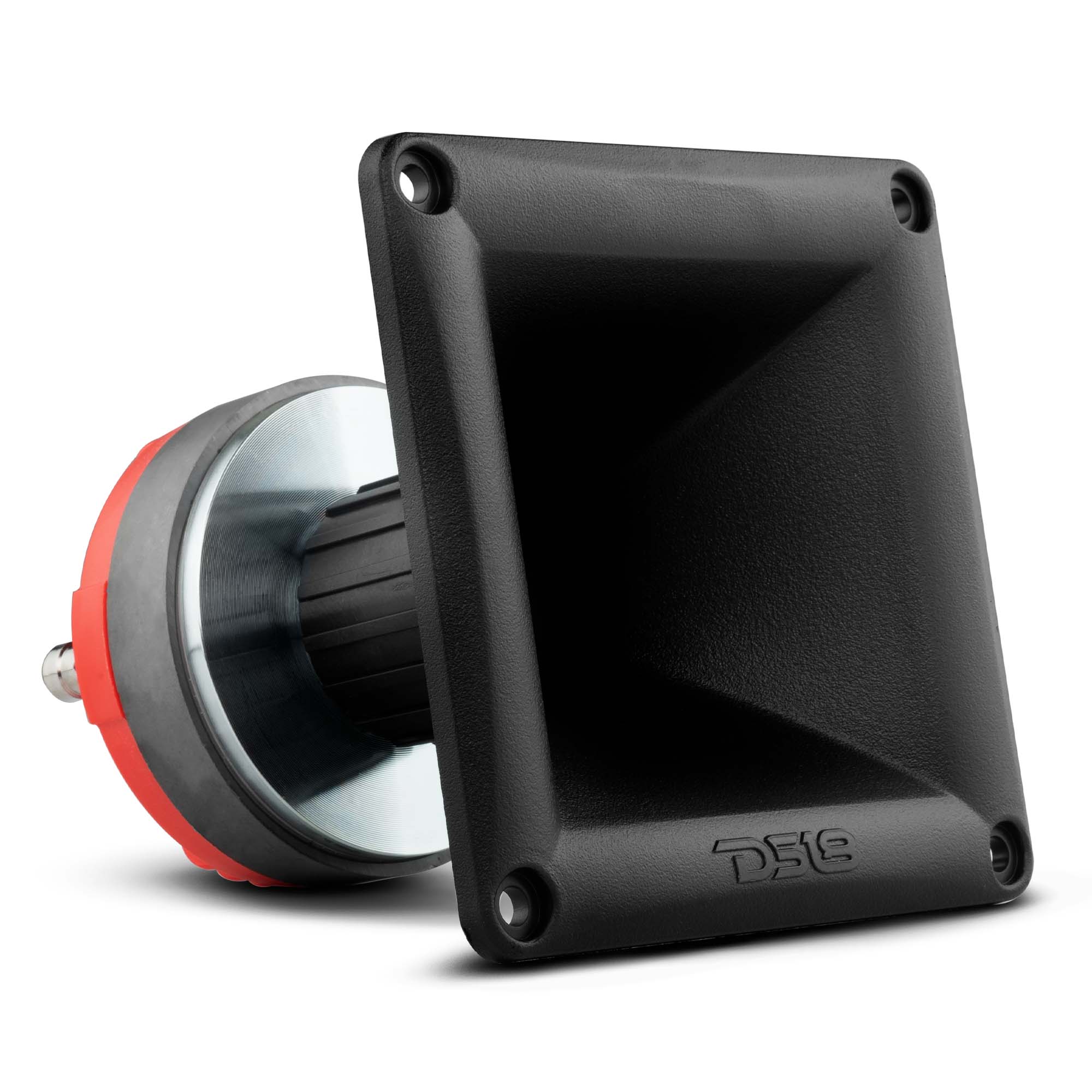

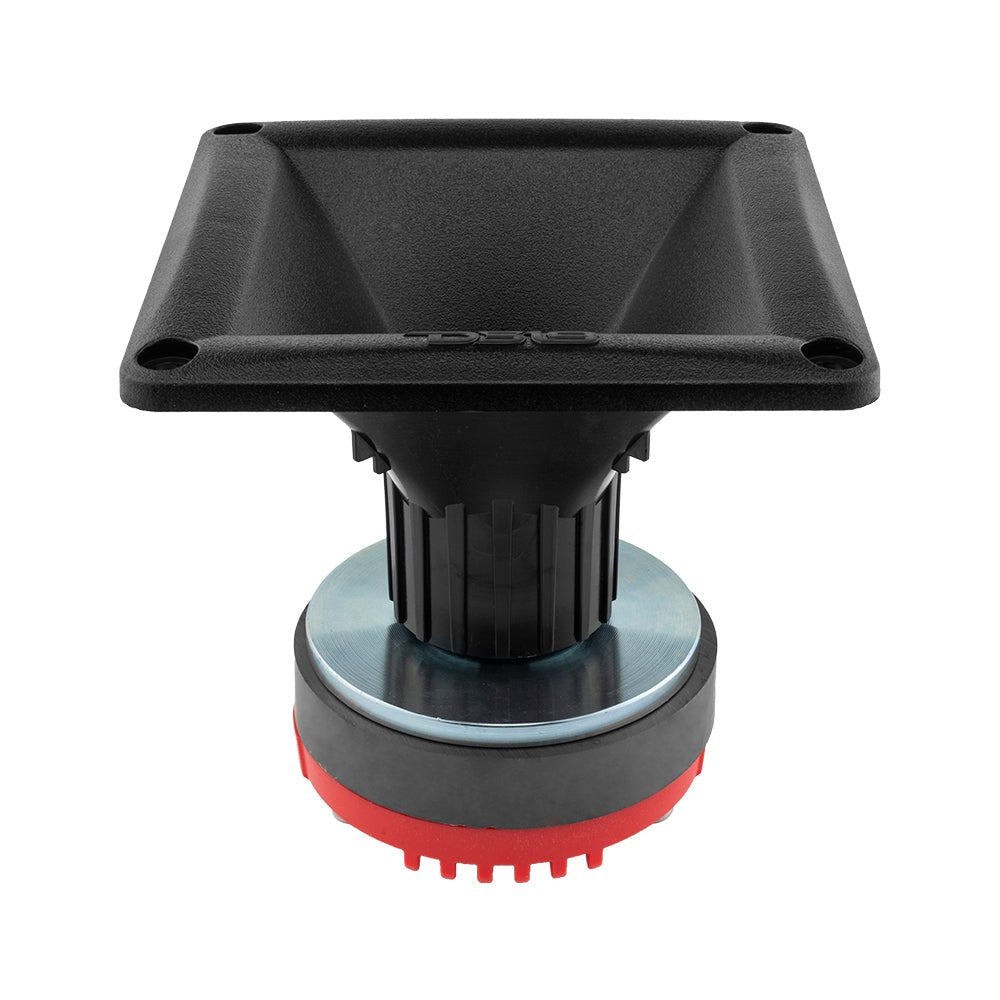

DS18 PRO-DR1PK44 1" Twist On Throat Compression Driver with 1" Phenolic VC and PRO-H44/BK Horn 240 Watts 8 ohm

Screaming onto the scene is DS18's PRO-DR1PK44 that has an all new design and has been tweaked for maximum performance and loudness. This horn driver sports a 1" 8-ohms CCA voice coil to absorb the 240w Peak power and is designed to really make it loud with efficiency.

This driver comes with an attached square shaped screw on throat that makes it very versatile while also enhancing acoustics and decibel levels. This driver has a 107.3 dB sensitivity so the potential of screaming loudness is easily obtainable with the right combination of power. This driver's frequency range is very wide starting at 800 Hz all the way up to ear drum shattering 20 KHz!

The PRO-DR1PK44 is sure to complete your pro audio system and complement all your other speakers with crisp and clear high range sound.

Highlights

  • Utilizes a CCA 1" voice coil to maximize loudness per watt.
  • 240w Peak power and 120w Program power will make these compliment your entire system
  • Mounting depth of only 4.56 which gives them extreme mounting versatility.
  • Removable voice coil so if you happen to need to repair on the go, it can be done in minutes.
  • Wide frequency response of 800Hz to 20KHz so you won't miss one high-hat or cymbal crash.
Technical Details
Throat Diameter 1"
Horn Diameter 3.14 x 3.14"
Horn Depth 2.36"
Installation Type Screw Down
Nominal Impedance 8 Ohms
Peak Power Handling 240W
Program Power Handling 120W
AES Power Handling 60W
Sensitivity with Horn (1w/1m) 107.3dB
Frequency Response 800Hz - 20KHz
Recommended HI Pass Crossover 900Hz
Motor
Voice Coil Diameter 1"
Voice Coil Former Material Kapton
Winding Material CCA
Diaphragm Material Phenolic
Magnet Material Ferrite
Magnet Weight 0.38 oz
Measurements
Overall Diameter 4.52"
Overall Depth 4.88"
Bolt Pattern 3.95"
Mounting Depth 4.56"
Mounting Hole 3.26" x 3.26"
