Overview
Description
Perfect for Silverado/Sierra/Denali 2007-2019, F150 1999-2020, Tundra Double Cab 2018-2020, and more!

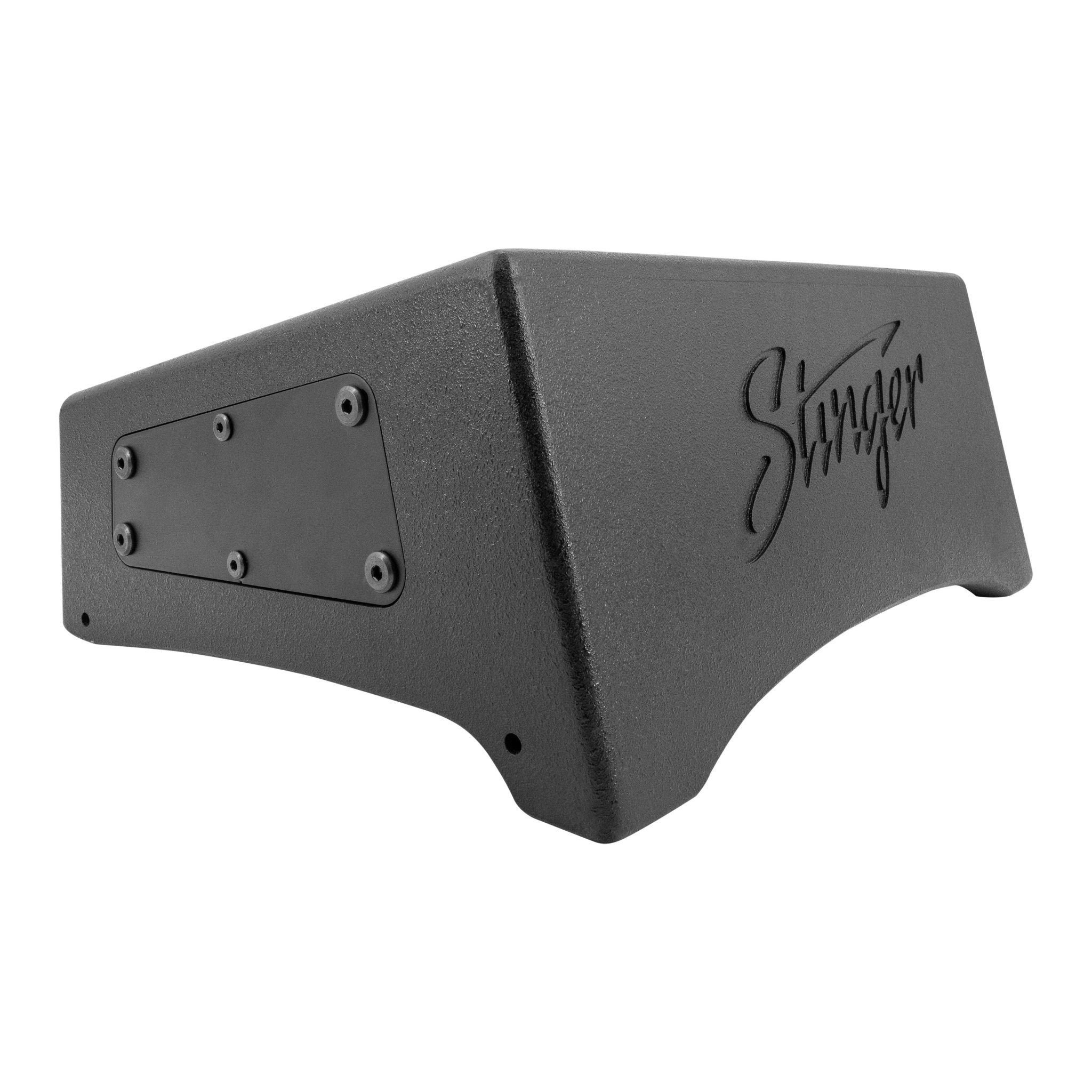

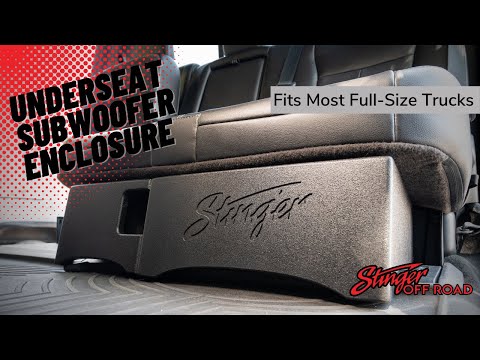

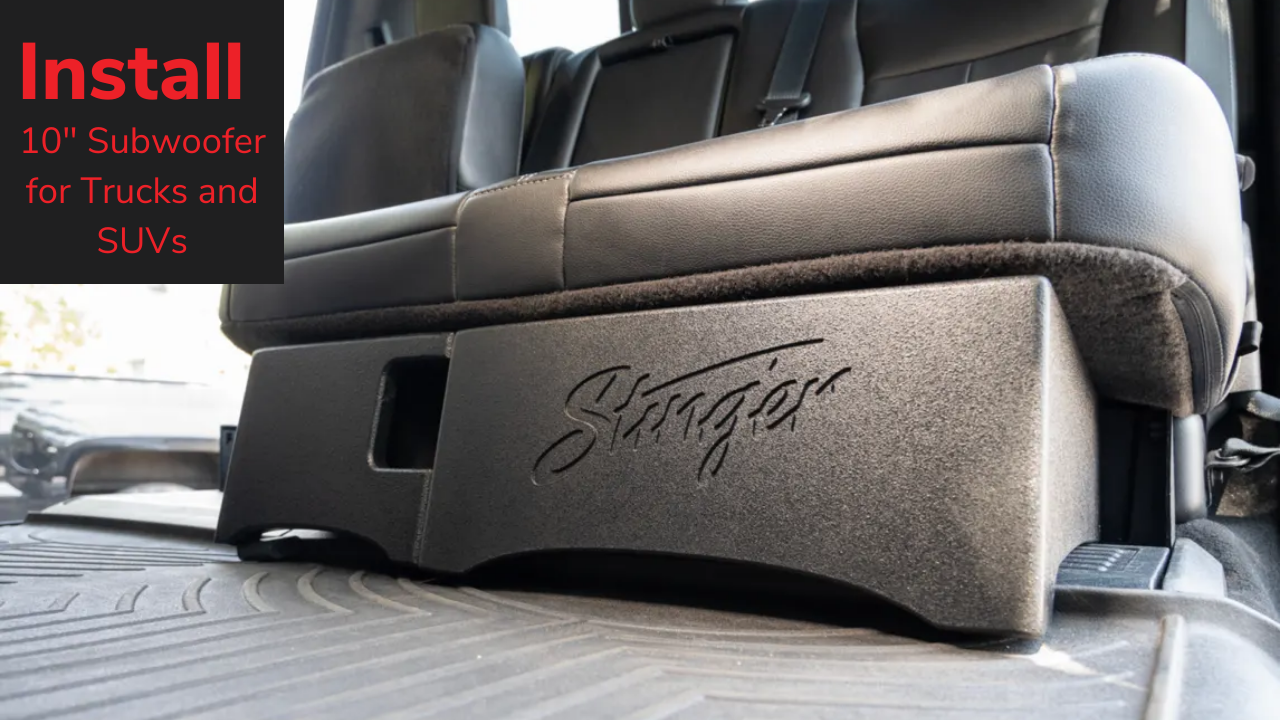

Built tough and made to fit many under-seat truck installations, this 10” bass enclosure offers a quick and easy way to add a high-powered subwoofer solution to your audio system. Phoenix Gold designed a subwoofer specifically for this enclosure to maximize the performance and deliver deep, accurate bass. Want more output? Add a bass expansion module that adds the correct airspace and a 37-Hz tuned port that gives you over 6-dB of extended bass; that’s like adding another subwoofer!
The enclosure also works well behind seats as a footrest, over-center humps, and in hatchbacks.
All mounting hardware included. We also recommend adding our extension port TXTRB10BB for enhanced sound quality.
The amplifier is not included, the amp is sold separately.
Features
Extreme Bass
Push your truck's audio to the limit. Engineered to overcome the lack of space hurdle and adds BIG BASS in trucks where space is a premium.

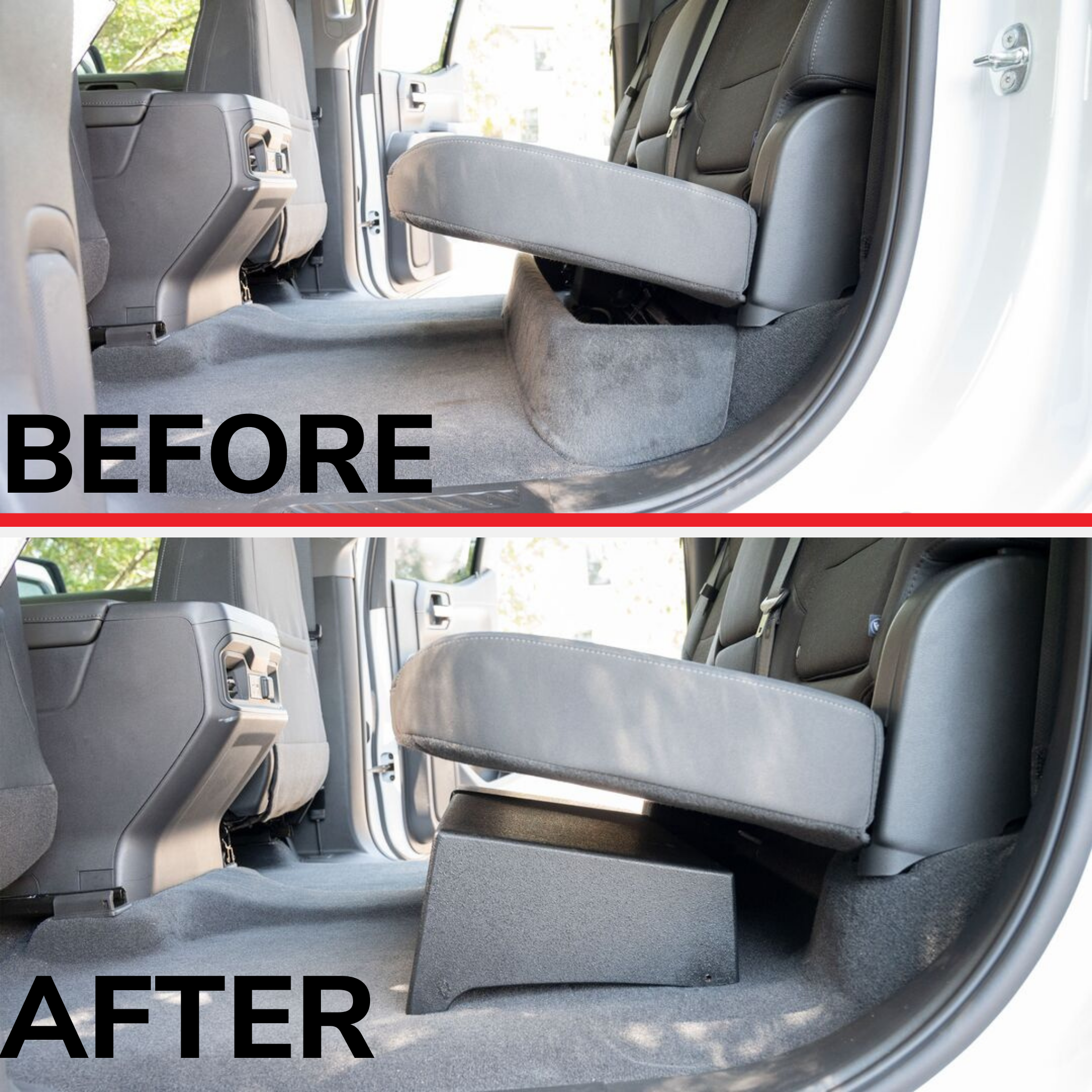

Space-Saving Fit

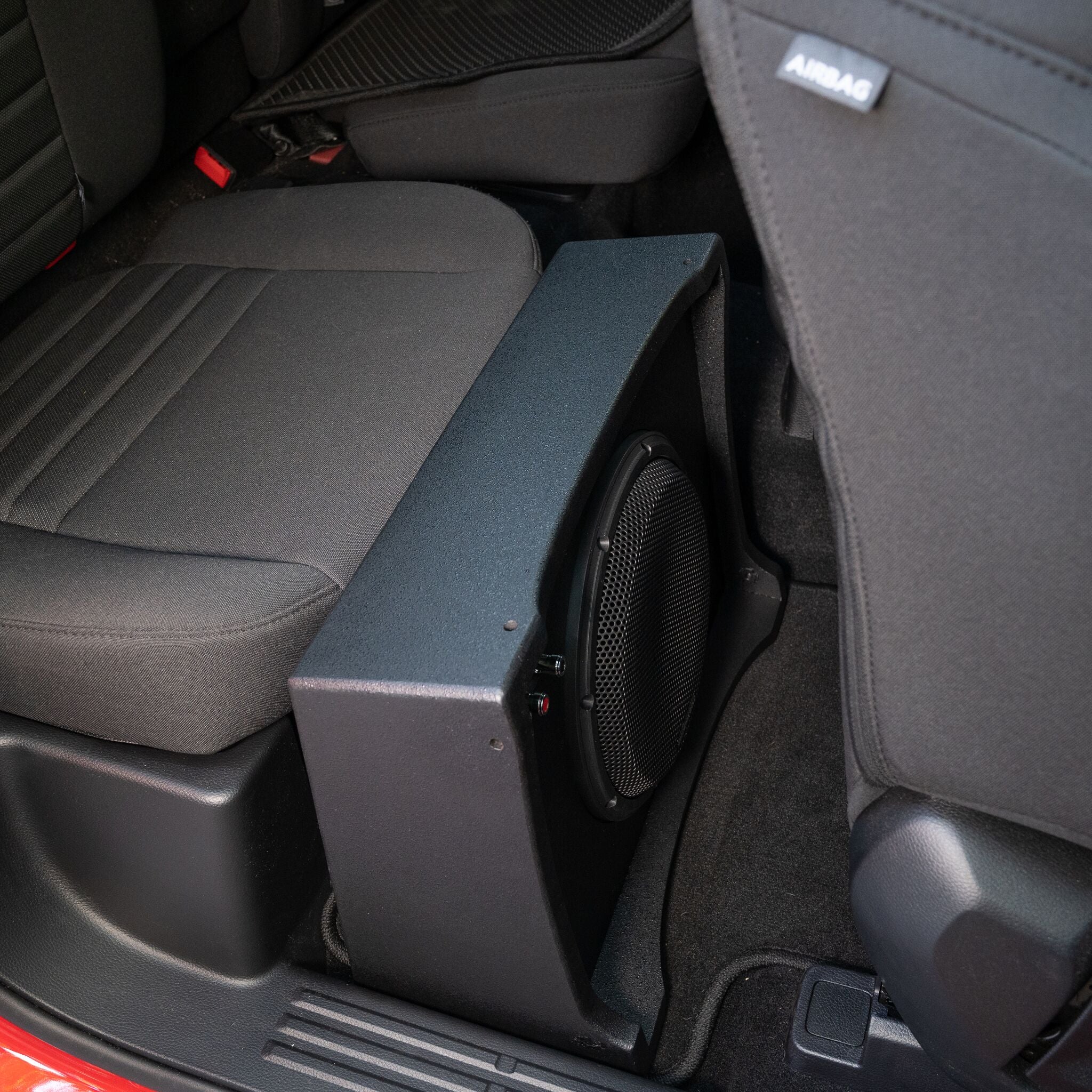

Add some more bass to that wasted space. The enclosure works well behind seats as a footrest, over-center humps, and in hatchbacks.
Weather-Resistant
Designed to withstand harsh outside elements including water, dirt, dust, and debris.
ENCLOSURE FEATURES
- Roadkill-Liquid Coat
- Durable Texture UAT (Urethane Acrylic Terpolymer) Enclosure Coating
- Weather-Resistant for Harsh Outdoor Environments
- Sound Dampening Properties for Resonance Reduction
- Impact Absorption
- Scratch, Crack, and Peel-Resistant
- Chemical and Stain-Resistant
- Provides Leak and Corrosion Prevention
- UV Protection
- Heavy-Duty MDF Construction
- Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
- Durable, Coated Steel Subwoofer Grill for Extra Protection
- Double the output - Add the optional modular port enclosure (TXTRB10BB) for an extra 6dB bass extension
SUBWOOFER FEATURES
- 800w RMS 10” Weather-Resistant Subwoofer
- Rugged Weatherproof Design
- Fiber Matrix Injection Molded Polypropylene Cone
- Rubber Surround
- Powder-Coated Frame
- Wrap-Sealed Rubber Gasket
-
THERMAL & MECHANICAL ELEMENTS
- 2.5” Dual 4ohm (wired 2 ohm load) Voice Coil with CFL³ and MBL Technologies
- MLB Collar Technology- Enables Micro-Level Bonding with Cone & Spider for Increased Strength
- G-Lock Technology Utilizes Adhesive and Mechanical Bonding Between the Cone and Voice Coil
- Air-Cooled Ventilated Motor Topology for Providing Optimal Thermal Efficiency, Reducing Motor Compression and Extending
- Low-Frequency Response
- Black Anodized Voice Coil Former-Provides Heat Dissipation
- CFL³ Technology Voice Coil- 3x More Structurally Rigid, Prolonging the Life of the Voice Coil
- Concave-X Cone Technology Strengthens the Rigidity of the Woofer’s Cone Body and Minimizes Distortion While Increasing High-Pressure Handling Produced in Shallow Enclosures
- Magnetic FEA High-Efficiency Motor-Provides Highest Possible, Efficient Motor Design
- Linear Surround Technology-For High Excursion and Increased Output
- Linear Excursion Suspension - For Accurate Bass with Impact
Specifications
| Model Number | TXRB10 |
| Speaker Model | P-TX10D4 |
| Subwoofer Size | 10” |
| Voice Coil | 2.5" Dual 4 ohm |
| DC Resistance (Re) | 2 ohm |
| Sensitivity 1W/M (SPL) | 86.3 dB |
| Frequency Response | 20Hz - 250Hz |
| RMS Power | 400 watts |
| Peak Power | 800 watts |
| Enclosure Specifications | |
| Height1 | 5" |
| Height2 | 7.72" |
| Width | 18.11" |
| Depth | 12.52" |
| Depth2 | 14.3" |
