12" Loaded Subwoofer Ported Enclosure With ZR12.2D 800 Watts Rms

DS18
ZR112LD
Car Audio : Enclosures
$349.95

Secure Checkout

  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

customers are viewing this product
12" Loaded Subwoofer Ported Enclosure With ZR12.2D 800 Watts Rms

DS18 ZR112LD Bass Package 1 x ZR12.2D 12" Subwoofer In a Ported Box 1600 Watts

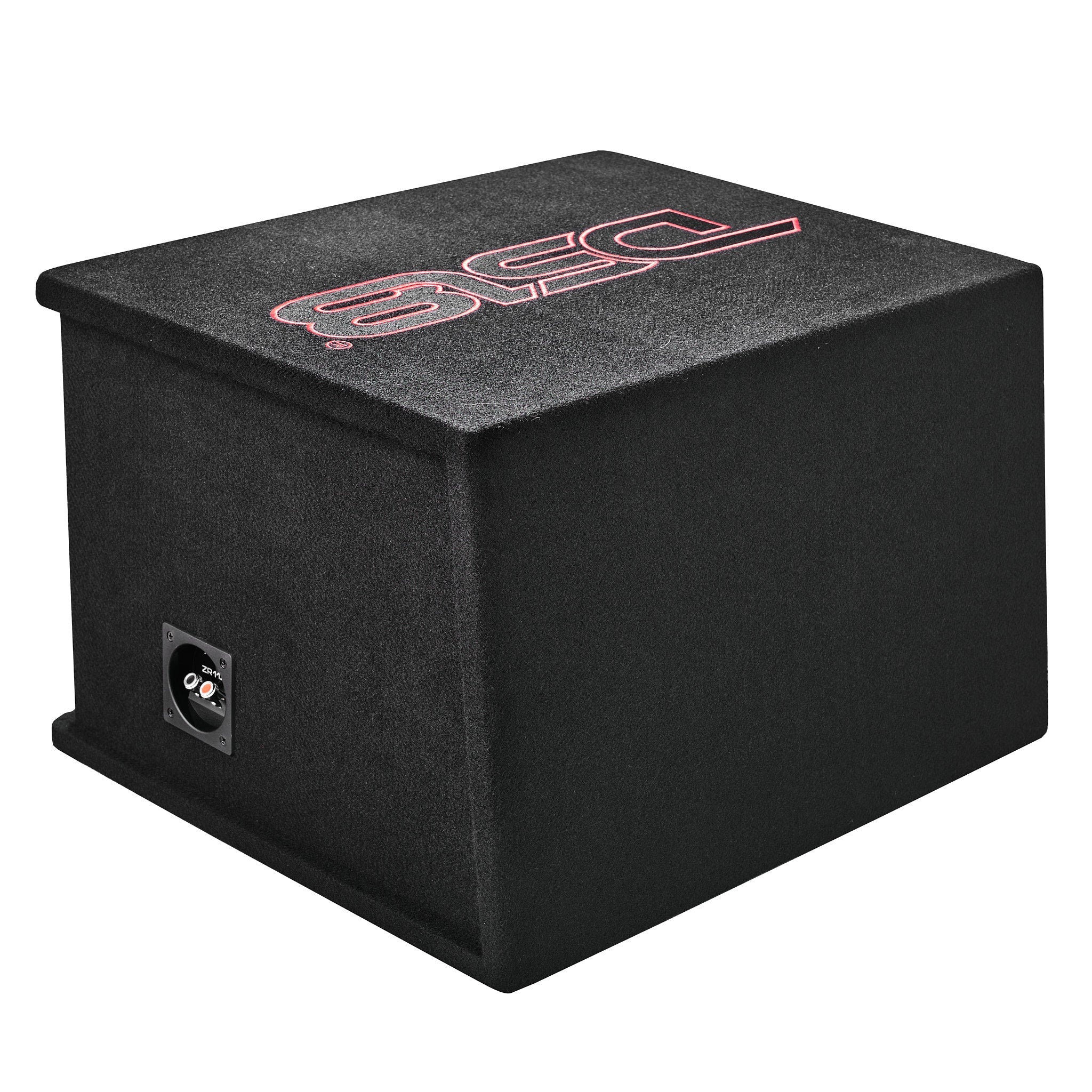

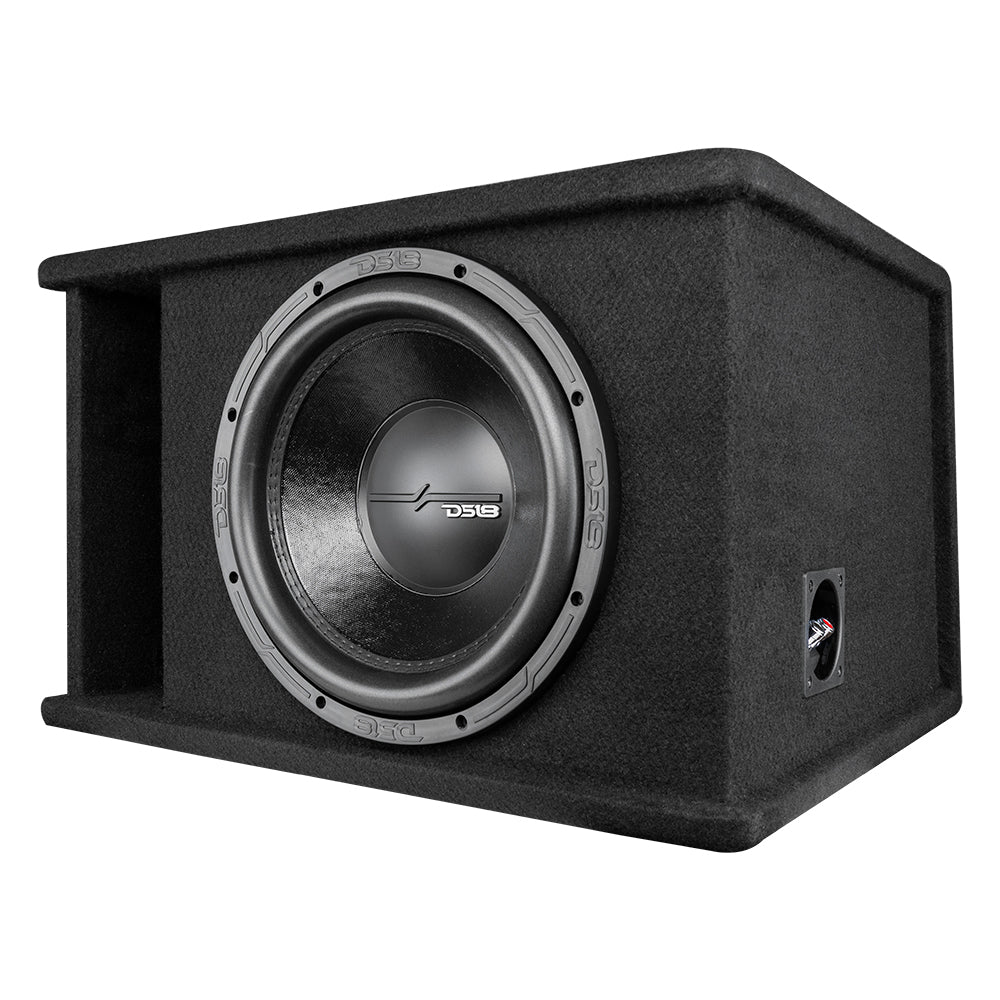

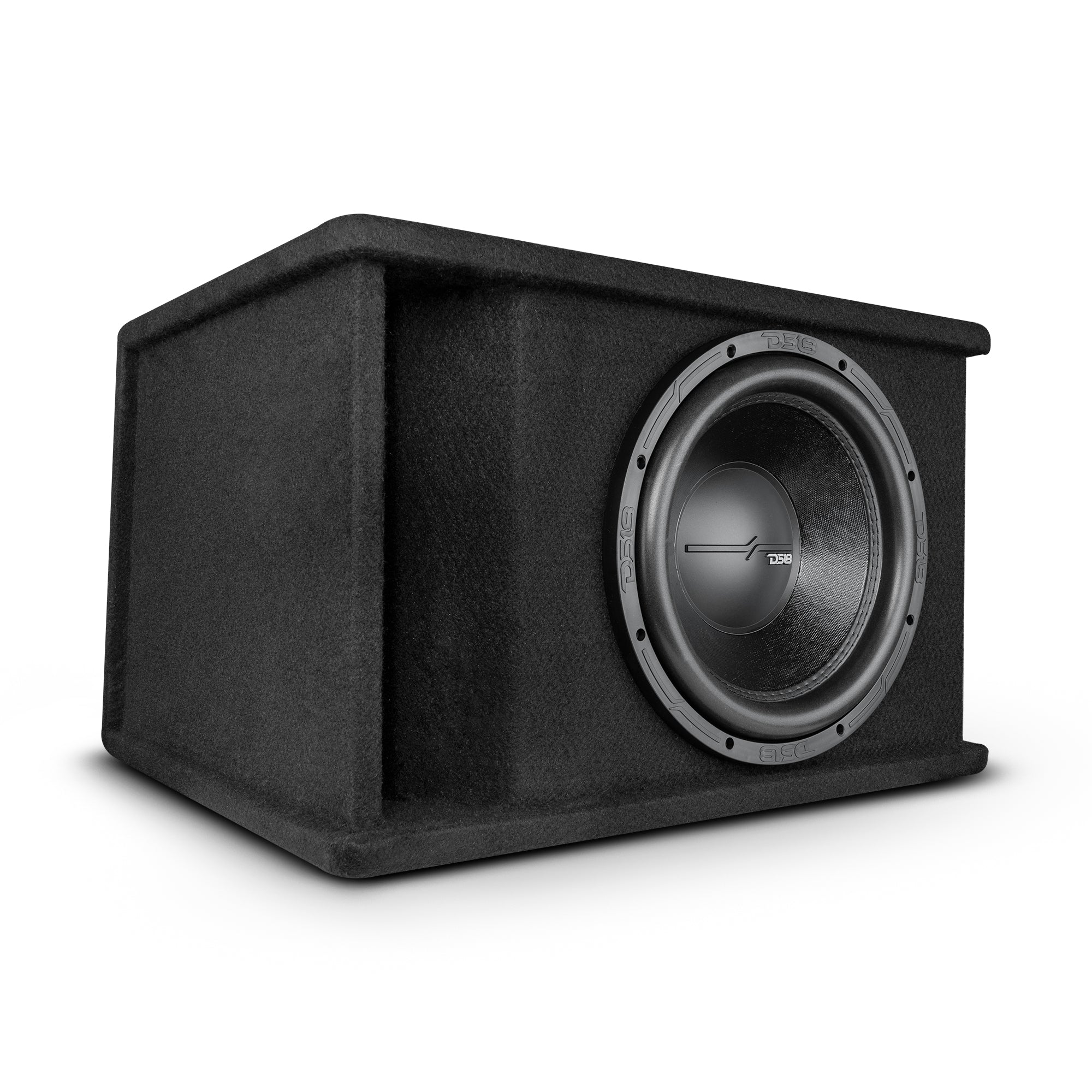

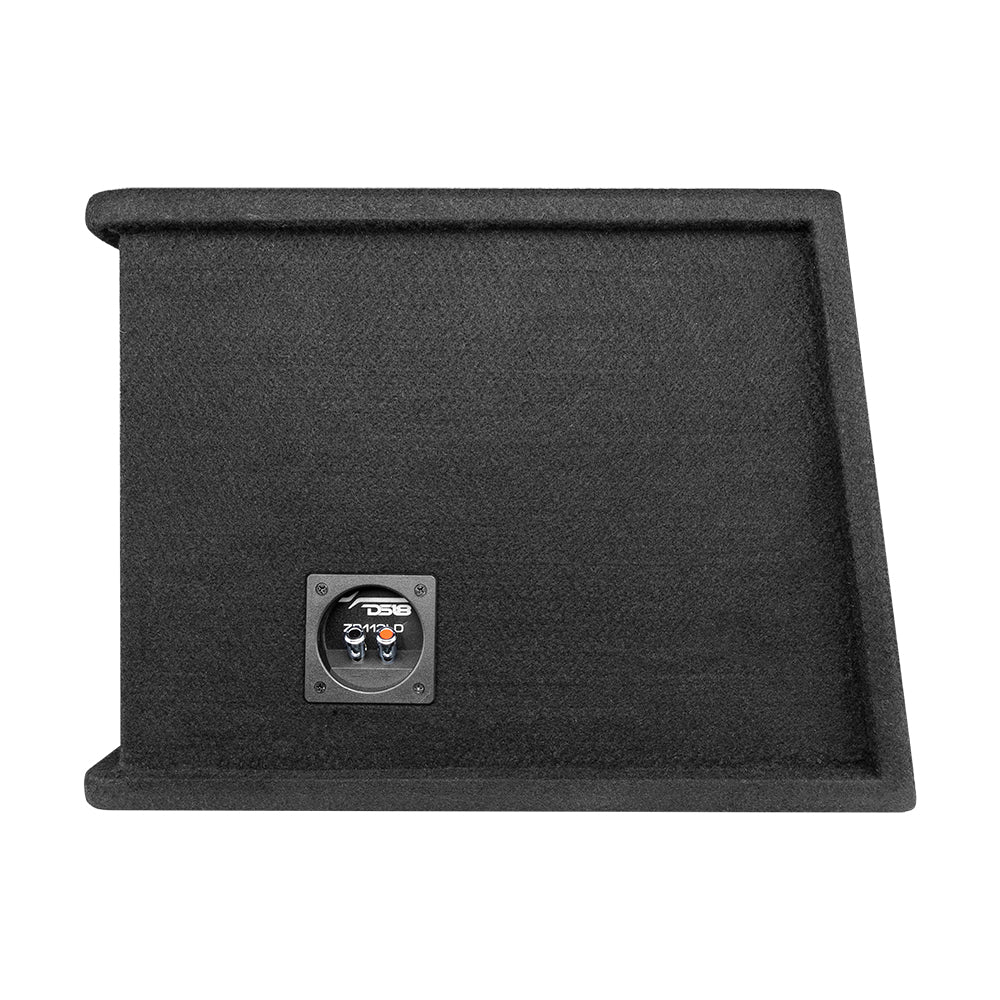

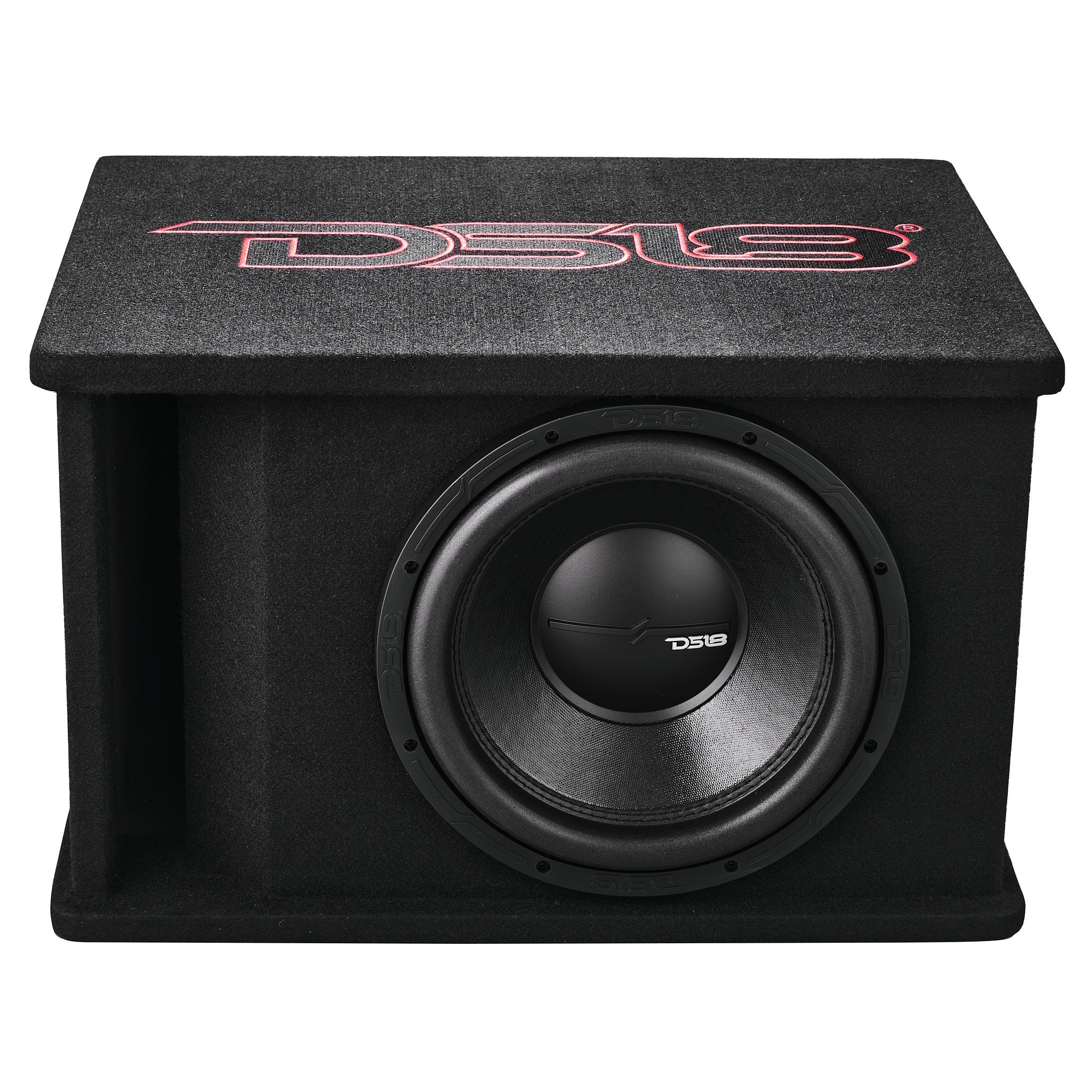

This is a prefabricated box that comes with one of our best selling subwoofers, the ZR12.2D. Included is a beautiful carpeted box with DS18 designs tuned to 29 HZ.

The box is constructed of thick 3/4 MDF for great sound and acoustical resonance. The subwoofer included is the very popular ZR12.2D that is a dual voice coil 2 ohm subwoofer wired in parallel for a final nominal impedance of 1 ohm that will require 800w RMS and 1600 W MAX.

This loaded box is a great solution to get hard hitting heavy bass for all to enjoy. To power this combo, we recommend a 1000w RMS amplifier like the ZR1000.1D to power this setup to its maximum potential.

Highlights

  • The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass.
  • One ZR12.2D 12 inch subwoofer that will give you the cone area to push out great sounding bass without a lot of power requirements.


Key Features

  • 12 inch  subwoofer
  • Max Power Handling: 1600 watts
  • RMS Power Handling: 800 watts
  • Frequency Response: 25hz-200hz
  • Voice Coil Diameter: 2.5"
  • Voice Coil Material: Copper
  • Impedance: Dual Voice Coil 2-Ohm
  • Sensitivity: 82 DB
  • Magnet Weight: 100 OZ
  • Magnet Material: Ferrite
  • Mounting Depth: 6.6"
  • X max: 25mm one way


Box:

  • Box Material: 3/4 inch MDF
  • Box Covering: Carpet
  • Box Tuning: 29hz
  • Box Type: Ported
  • Internal Volume: 2.8 ft3

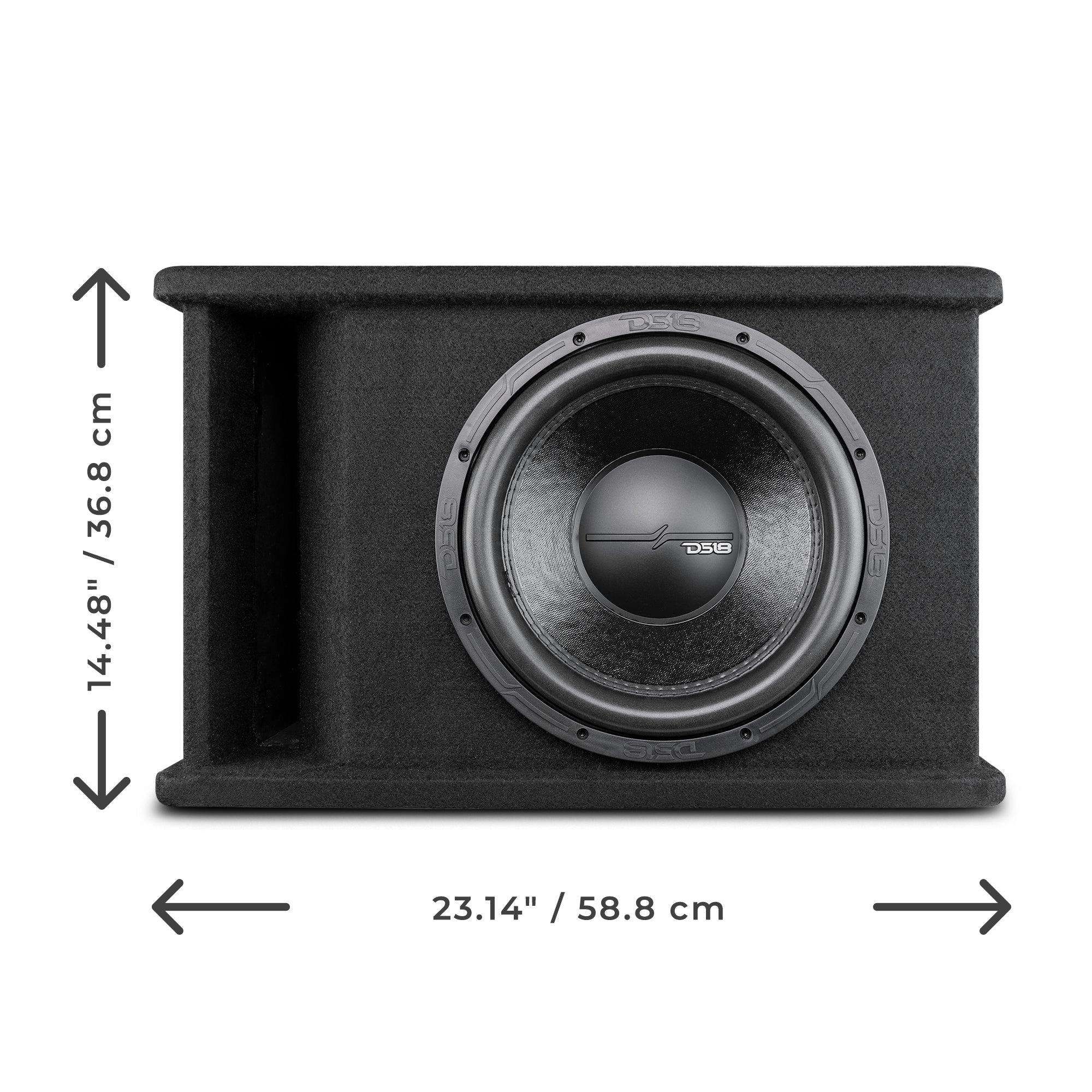

Dimensions:

  • Height: 14.48"
  • Width: 23.14"
  • Depth 1: 17.71"
  • Depth 2: 19.68"


Great For:

      • Car Audio
      • Pro Audio
      • Home Solutions
      • Hi-Fi Installation
      • DIY Projects

            " width="100%">

Technical Details
                                                    ZR112LD Product Manual


SPECIFICATIONS / ESPECIFICACIONES:
Speaker Type/Size / Tipo/Tamaño de Altavoz Single 12" / 316mm
Total Impedance / Impedancia Total. 1 ohm
Total RMS Power Handling / Manejo de Potencia RMS total 750 w
Total MAX Power Handling / Manejo de Potencia MAX total 1500 w
Sensitivity (1w/1m) / Sensibilidad (1w/1m) 84db
Frequency Response / Respuesta de Frecuencia . 20-200 Hz
Recommended Lo Pass Crossover / Crosover Paso Bajo Recomendado. 70Hz
MOTOR / MOTOR:
Voice Coil Diameter / Diámetro de la Bobina de Voz 2.5" / 61.6mm
Voice Coil Former Material / Material Interior de Bobina Móvil Aluminum / Aluminio
Winding Material / Material de Bobinado Copper / Cobre
Cone Material / Material del Cono Non-Pressed Paper / Papel no Prensado
Dustcap Material / Material de la Tapa Anti-polvo PPI
Surround Material / Material de la Suspension . Foam / Espuma
Basket Material / Material de la Canasta .. Steel / Acero
Magnet Material / Material del Imán Ferrite / Ferrita
Magnet Weight / Peso del Imán . 100 Oz
BOX SPECIFICATIONS / ESPECIFICACIONES DE LA CAJA:
BOX SPECIFICATIONS / ESPECIFICACIONES DE LA CAJA 79.3L / 2.8 ft3
Port Tune / Melodía de Puerto 29 Hz
Load Configuration / Configuración de carga Ported Box / Caja Portada
Box Type / Tipo de caja Singe 12” / Individual 12”
Box Material / Material de la caja 3/4” (19mm) MDF
Finish Material / Material de acabado .. Black Carpet / Alfrombra Negra
Logo / Logo . Red Stitched / Rojo Tejid
-3Db Dropping Point / Punto de caída de -3Db .. 24 Hz
MEASUREMENTS / MEDIDAS:
Height / Altura 14.48" / 36.8 cm
Width / Ancho 23.14" / 58.8 cm
Depth 1 / Profundidad 1 17.71" / 450 cm
Depth 2 / Profundidad 2 19.68" / 500 cm
