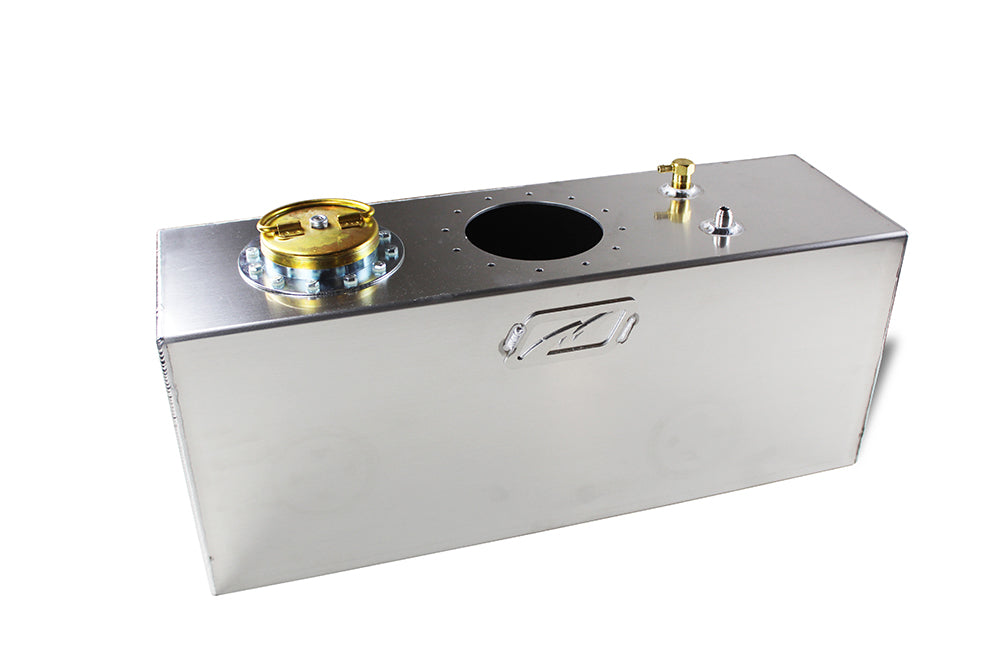

The Motobilt MB5005-TJ was designed to use the stock Jeep TJ, LJ, JK, or JKU fuel pump and was designed to fit in the back bed of your Jeep. This product is supplied by OTC. (See Notes) It is 30 inches x 12 inches x 9 inches and can fit behind your seat if you choose. The tank has a capacity of roughly 15 US gallons. This fuel tank is CNC cut from 1/8 inch aluminum and formed on a press brake, is TIG welded for ultimate strength and includes a large D-ring style cap. This can be converted to remote fill by purchasing a different filler neck system that utilizes a 12 bolt, 5.38 bolt circle flange. The Motobilt MB3000 fuel cell mount will fit this tank perfectly.
The optional kit consists of three parts: (Not included) the main under-tank plate and two clamp bodies. The under tank plate is CNC Laser Cut from 1/8 inch high strength steel plate. You can weld your own mounting brackets to the bottom if needed or utilize the 8 bolt holes already in the mount. The 2 clamp-down bodies capture the top and all four sides of the tank and bolt securely to the mounting base. These parts are CNC Laser Cut but from 18 gauge steel. The parts are formed on a hydraulic press break.
This mount will ensure your fuel cell is mounted securely. The Motobilt tank features 2 fittings on top of the tank which has a brass rollover valve for a vent line and a second fitting for the return line on newer 2005-2006 Jeeps. If you have an older TJ/LJ then simply cap the second fitting. The MB5005-TJ Fuel Cell already has the provisions for the clamping ring CNC cut into the tank. This means the clamping ring and pump will bolt in with no cutting or drilling necessary!
This fuel cell is used for applications where you are extending the wheelbase and the rear axle would contact the factory fuel tank. It would also be used in situations where more ground clearance is needed. This kit works perfectly with the Motobilt Jeep TJ Back Half kit or Motobilt Jeep LJ back half kit, where the frame rails are moved up and in for ultimate clearance.
Specifications:
Note:
Specifications:
| Country of Origin | US |
| Sold As | Each |
| Availability | Available |
| Universal | No |
| About |
Motobilt is a manufacturing company located in Ozark Alabama dedicated to producing quality American Made aftermarket parts for Jeeps and other off-road vehicles. Motobilt was founded in 2012 by, an off-road industry pioneer, Dan DuBose. We currently employ around 60 professionals in our 85,000 sq ft plant. We produce our Motobilt product line and manufacture for many other companies in the USA. |
