Ready to transform your Jeep JL Unlimited to a whole different level of suspension capabilities? Wanting to upgrade to 1 ton axles and coil-over shocks or ORI Struts? Want to be able to run up to 42 inch tires? We have the ultimate solution to transform your Jeep JLU into an off-roading monster!

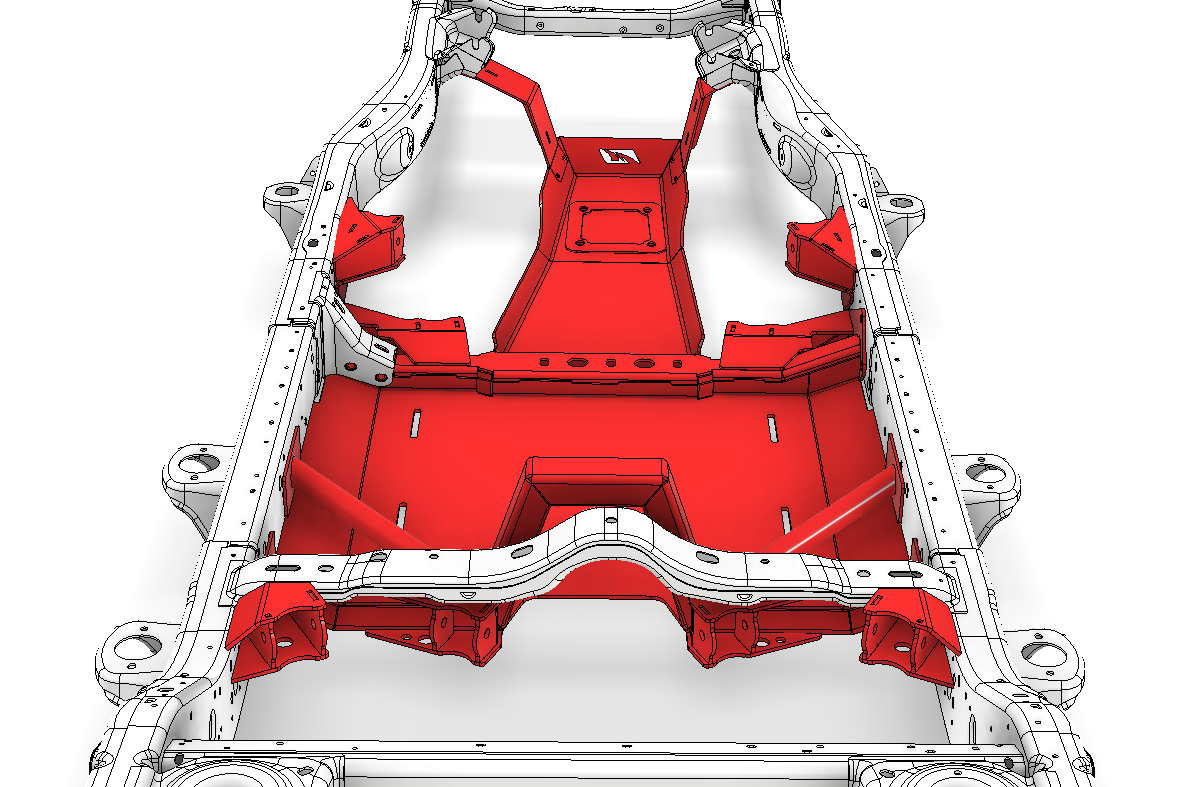

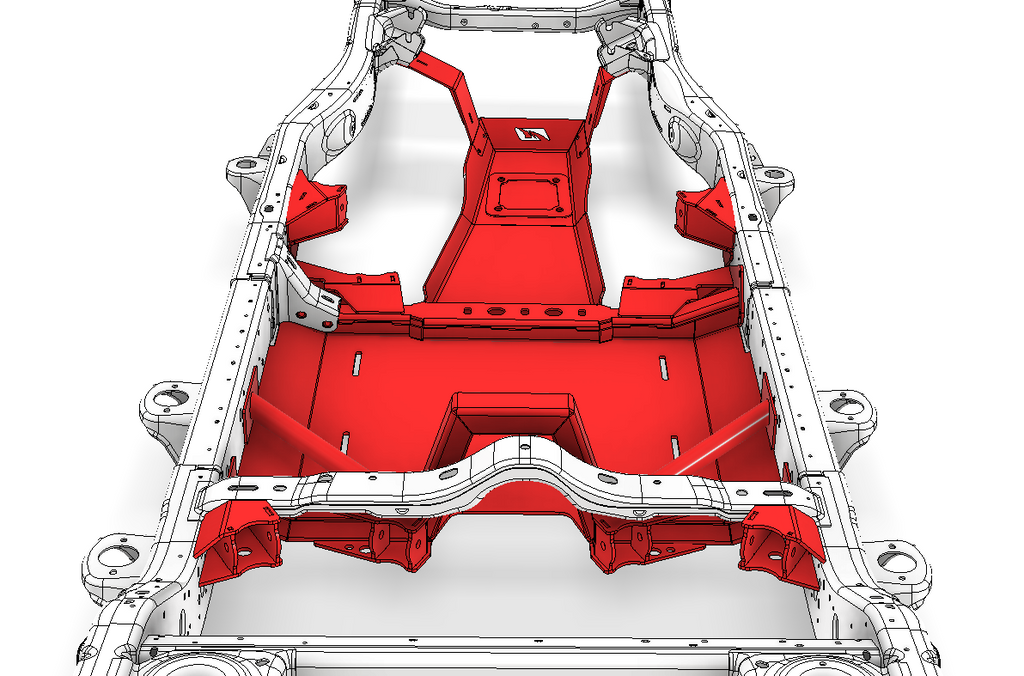

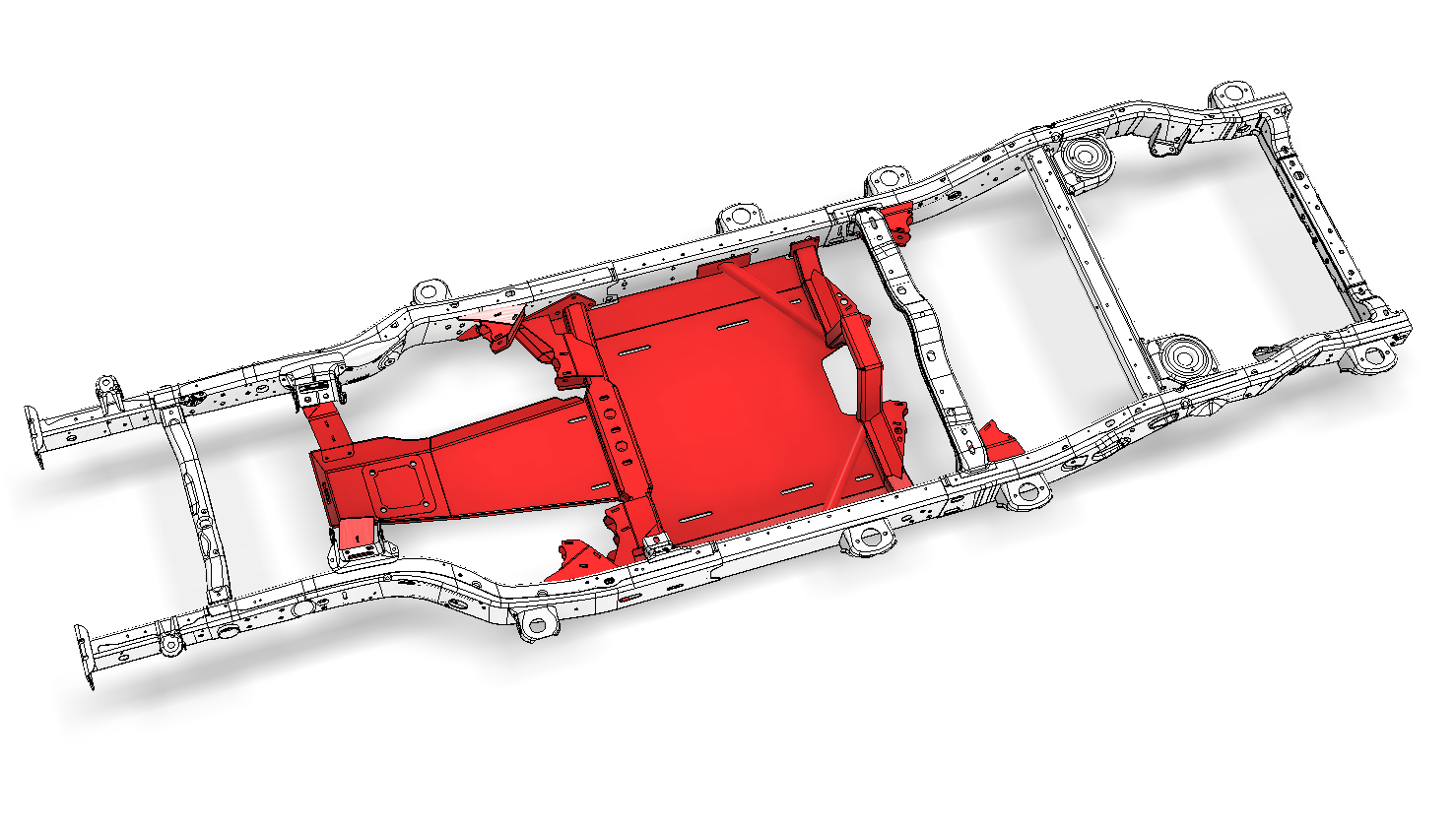

Our MB7006 4 Link Suspension Bracket and Skid System for Jeep JLU takes all of the geometry guesswork out of your build. Our kit includes all of the frame mounted bracketry to allow you to build a true double triangulated rear 4 link suspension and either a triangulated 4 link front suspension or 3 link front suspension with tracbar.
This will allow you the choice of building a 3 link front suspension with tracbar for mechanical steering or a 4 link front suspension with full hydro steering.

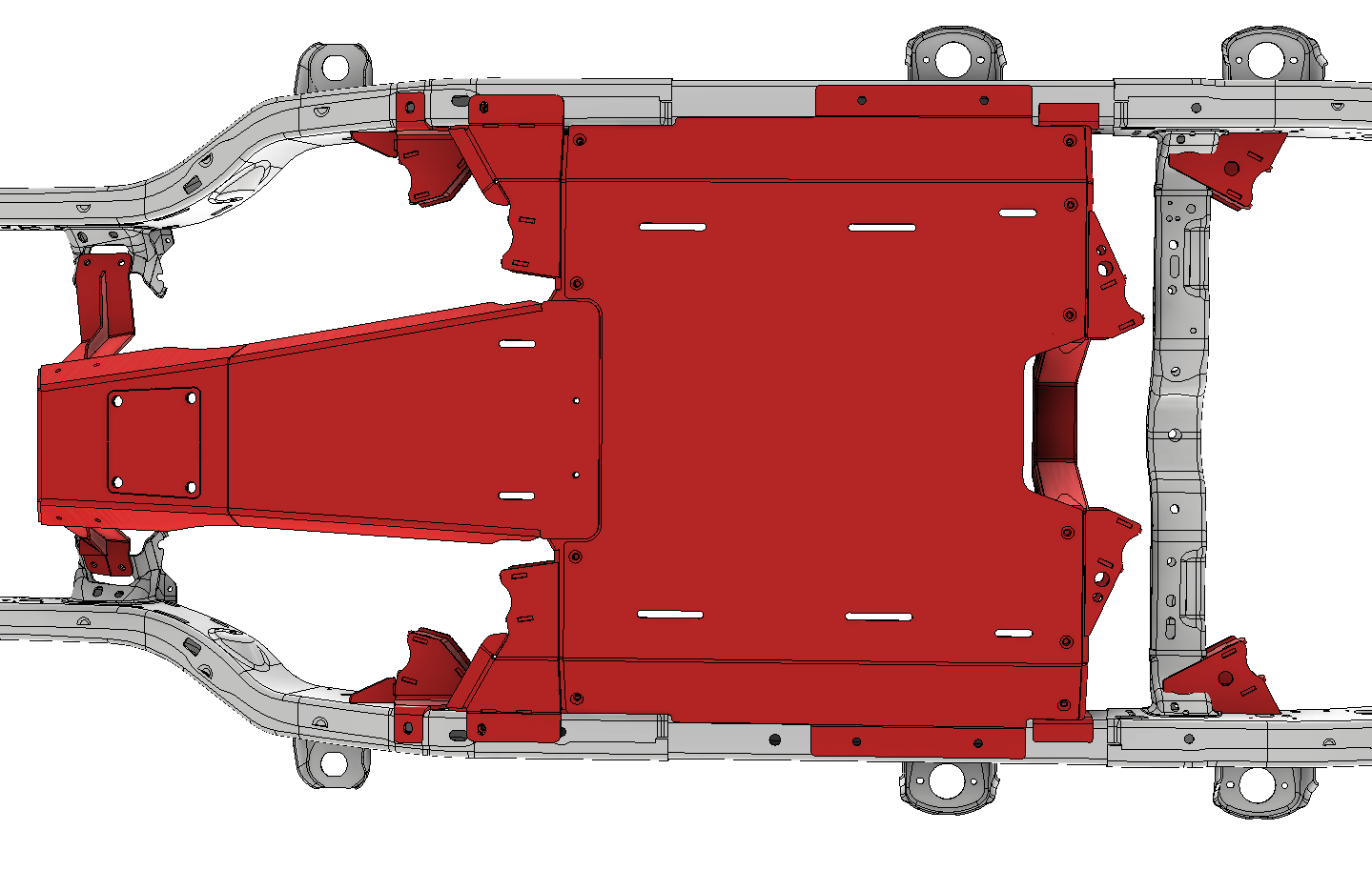

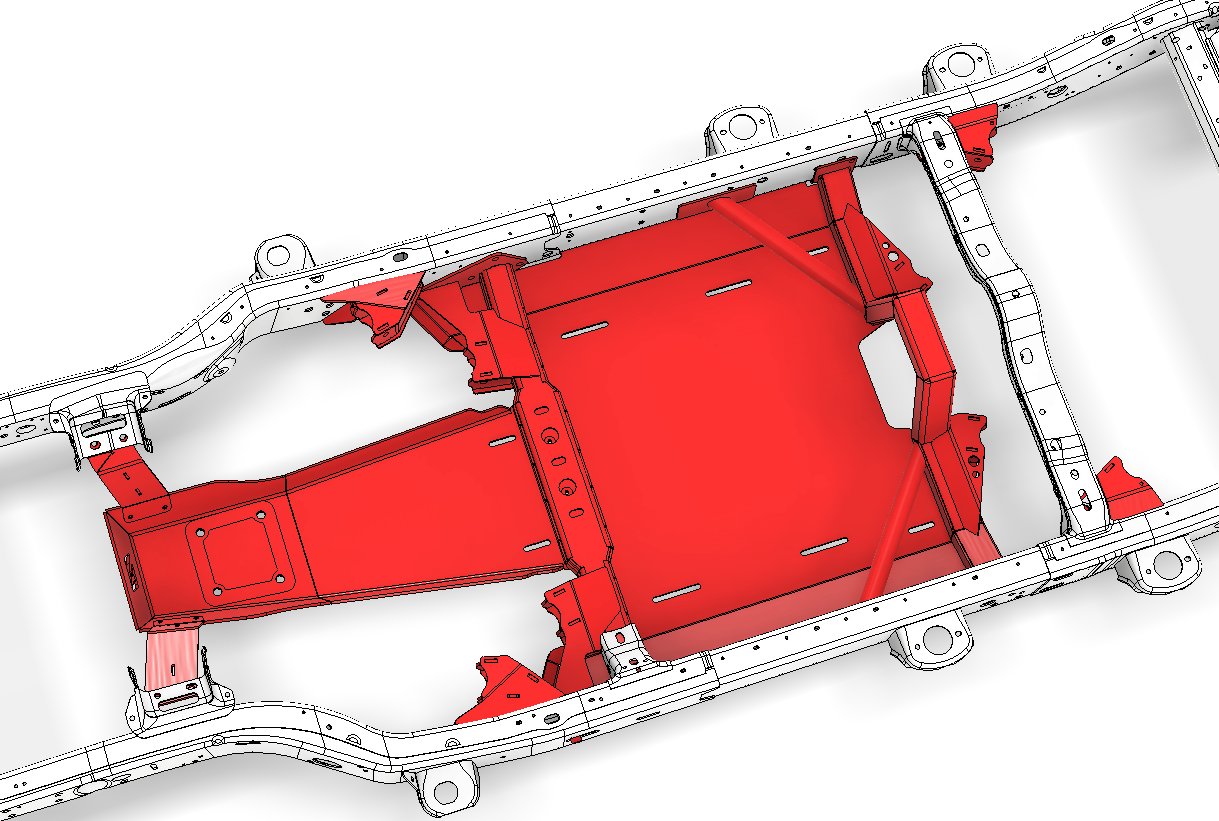

Our kit includes a new heavy duty removable transmission cross member that replaces your factory cross member and also provides the mounting locations for the front lower link mounts. We include a removable heavy duty 1/4 Inch thick high grade steel skid plate that follows the contours of the transmission cross member.
Also included is a new rear frame cross member which also acts as a skid mounting system and is an integral structural member to support the rear 4 link bracketry.
To protect your vulnerable oil and transmission pans along with the front exhaust and transmission lines, our kit includes a heavy duty engine skid which spans from forward of the factory engine oil pan and is structurally supported in the rear by the new heavy duty removable transmission cross member.
This kit will allow you to have clearance for an aftermarket transfer case, like the Atlas II or Atlas IV. Your passenger mounted factory fuel tank will be omitted and moved to the rear. We have rear mounted aluminum fuel tanks, steel skids and EVAP modification kits available.
The rear frame on a Jeep JLU is narrower than a Jeep JK, thus, a back half frame is not necessary in order fit coil-over shocks or ORI struts. We separately offer rear shock mounts (MB1562) that work seamlessly with this 4 link bracket kit and provide the clearance and height required to install your rear shocks.

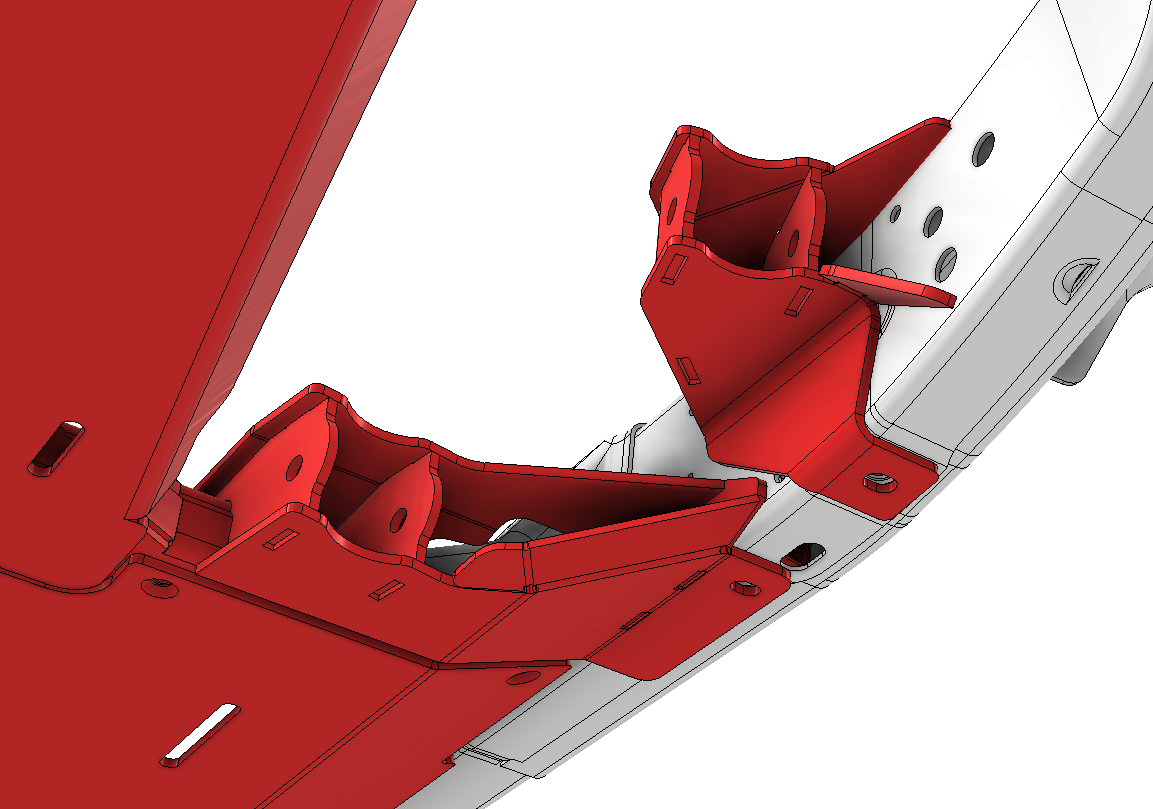

All front and rear brackets are designed to accept 2-5/8 inch wide joints. All joint mounting holes measure 5/8 inch diameter which you can drill to a larger diameter, if you choose.
All joint pivot bolts are 100 percent recessed and protected, yet still easily accessible with standard tools for maintenance and future repair or service. We know, it's a crazy idea, but we actually put a lot of thought into the simple little details, like being able to protect every bolt so future repair of your vehicle is easy, with regular tools!

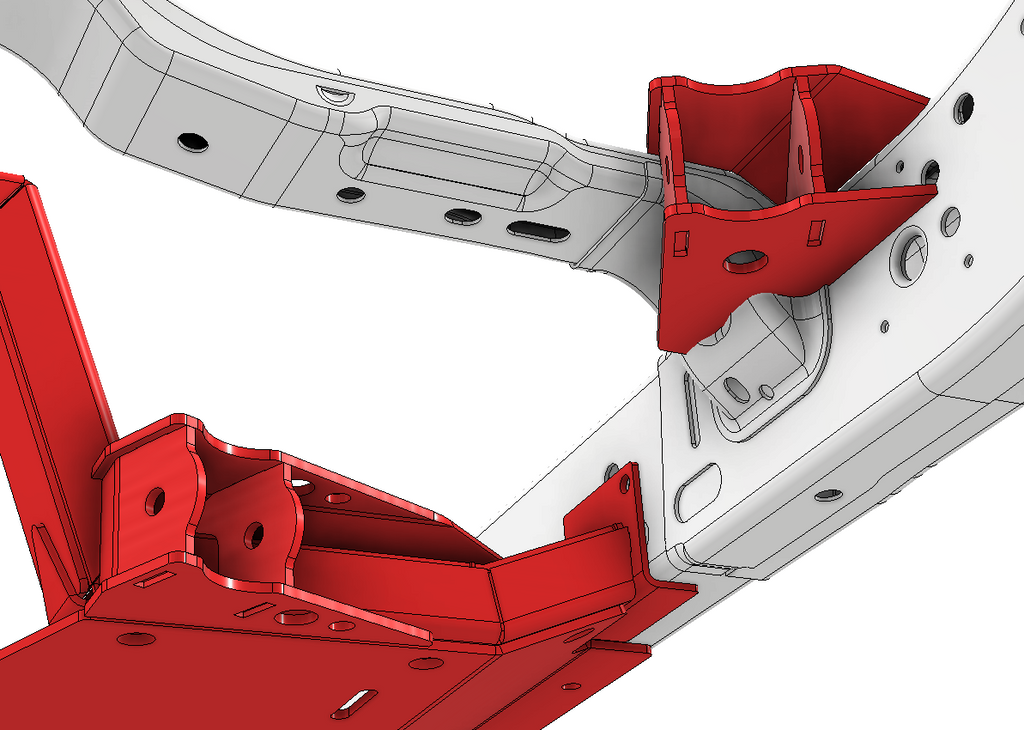

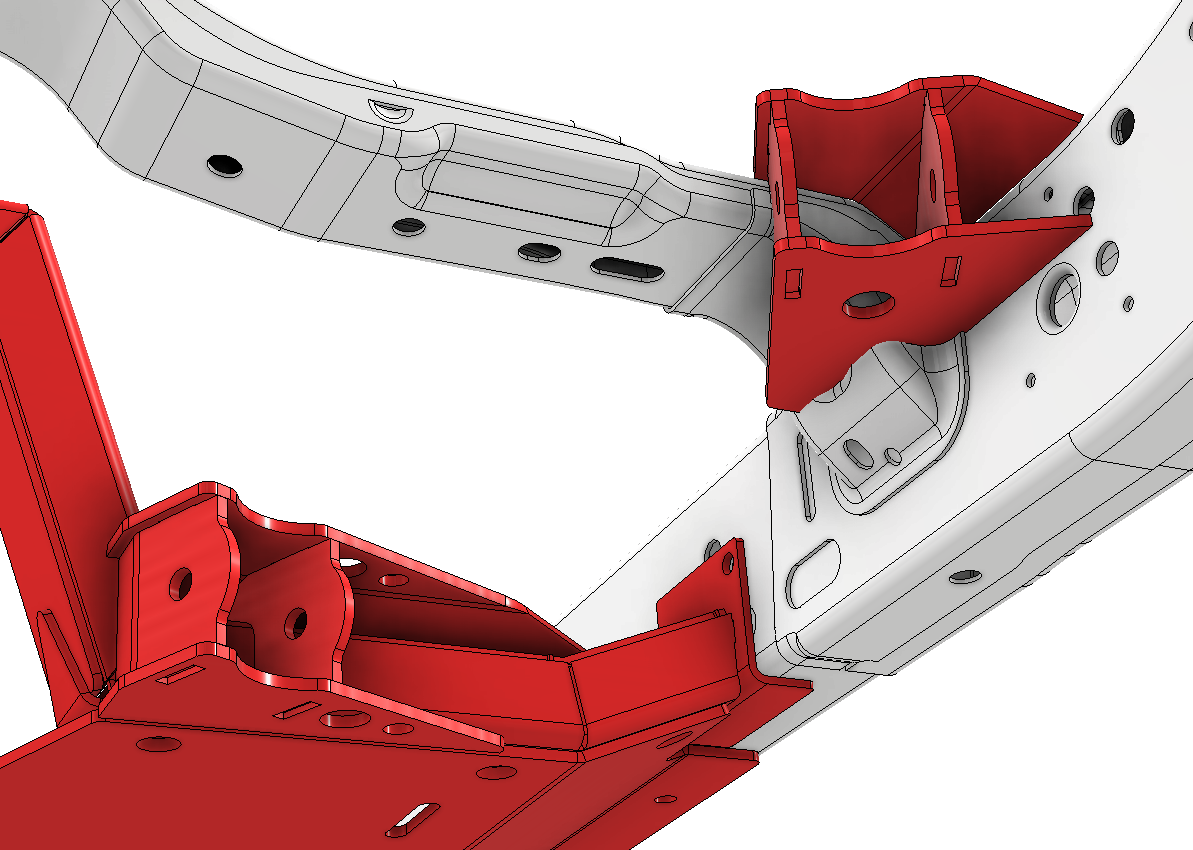

All front brackets are located using factory frame hole locations for ease of installation. The rear brackets key into the new rear cross member and are scribed to fit perfectly to the inside of the factory frame. All brackets require welding to the factory frame.
All joint plates are 1/4 Inch thick high grade steel. The skid plate is manufactured from 1/4 Inch steel with CNC press brake bends for added strength. The skid features six (6) drainage weep holes, as well as, countersunk mounting holes for a completely flush under belly. No hang up points for obstacles!
All mounting points for the skid plate have machined threaded holes in their mating structures. No need for fish plates or nuts to remove the skid plate.
Parts are shipped as fully welded sub-assemblies. Parts are shipped as raw steel. Weight = 266 lbs. Requires professional welding of kit components to factory frame.
Features:
- Removable Belly Skid for full access to transfer case
- Flush mounted large access plate in engine skid
- Countersunk bolt heads in skid plates
- All pivot bolts are protected
- 3 or 4 Link Front Suspension capable
- True double triangulated Rear Suspension ready
Benefits:
- Fast and easy oil changes
- Accessibility for easy maintenance and service
- No bolts heads to get hung up on
- No guesswork in suspension geometry
- Designed for years of heavy duty off-roading
- Protection of vulnerable and expensive components
- Easy to customize
Specifications:
Country of Origin |
US |
Sold As |
Kit |
Availability |
Available |
Hardware Included |
Yes |
Location |
Front |
Location |
Rear |
Universal |
No |
This Part Fits:
Year |
Make |
Model |
Submodel |
Notes |
2018 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2019 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2020 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2021 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2022 |
Jeep |
Wrangler |
Unlimited Sahara |
|
2018 |
Jeep |
Wrangler |
Unlimited Sport S |
|
2019 |
Jeep |
Wrangler |
Unlimited Sport S |
|
2020 |
Jeep |
Wrangler |
Unlimited Sport S |
|
2021 |
Jeep |
Wrangler |
Unlimited Sport S |
|
2022 |
Jeep |
Wrangler |
Unlimited Sport S |
|
2018 |
Jeep |
Wrangler |
Unlimited Moab |
|
2019 |
Jeep |
Wrangler |
Unlimited Moab |
|
2018 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2019 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2020 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2021 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2022 |
Jeep |
Wrangler |
Unlimited Rubicon |
|
2018 |
Jeep |
Wrangler |
Unlimited Sport |
|
2019 |
Jeep |
Wrangler |
Unlimited Sport |
|
2020 |
Jeep |
Wrangler |
Unlimited Sport |
|
2021 |
Jeep |
Wrangler |
Unlimited Sport |
|
2022 |
Jeep |
Wrangler |
Unlimited Sport |
|
2021 |
Jeep |
Wrangler |
Unlimited 80th Anniversary |
|
2021 |
Jeep |
Wrangler |
Unlimited Willys |
|
2022 |
Jeep |
Wrangler |
Unlimited Willys |
|
2021 |
Jeep |
Wrangler |
Unlimited Sport Altitude |
|
2022 |
Jeep |
Wrangler |
Unlimited Sport Altitude |
|
2021 |
Jeep |
Wrangler |
Unlimited Sahara Altitude |
|
2022 |
Jeep |
Wrangler |
Unlimited Sahara Altitude |
|
2021 |
Jeep |
Wrangler |
Unlimited Rubicon 4xe |
|
2022 |
Jeep |
Wrangler |
Unlimited Rubicon 4xe |
|
2021 |
Jeep |
Wrangler |
Unlimited Sahara 4xe |
|
2022 |
Jeep |
Wrangler |
Unlimited Sahara 4xe |
|
2021 |
Jeep |
Wrangler |
Unlimited Freedom |
|
2021 |
Jeep |
Wrangler |
Unlimited Rubicon 392 |
|
2022 |
Jeep |
Wrangler |
Unlimited Rubicon 392 |
|
2021 |
Jeep |
Wrangler |
Unlimited Islander |
|
2022 |
Jeep |
Wrangler |
Unlimited Islander |
|
2021 |
Jeep |
Wrangler |
Unlimited High Altitude 4xe |
|
2022 |
Jeep |
Wrangler |
Unlimited High Altitude 4xe |
|
2021 |
Jeep |
Wrangler |
Unlimited High Altitude |
|
2021 |
Jeep |
Wrangler |
Unlimited Willys Sport |
|
2022 |
Jeep |
Wrangler |
Unlimited Willys Sport |
|
