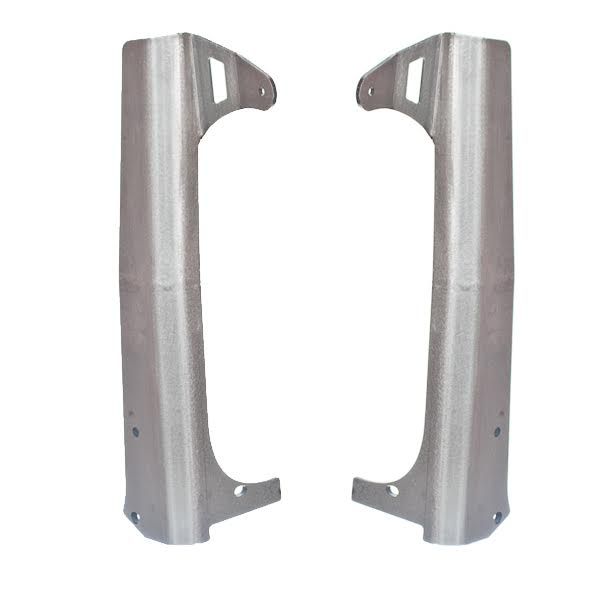

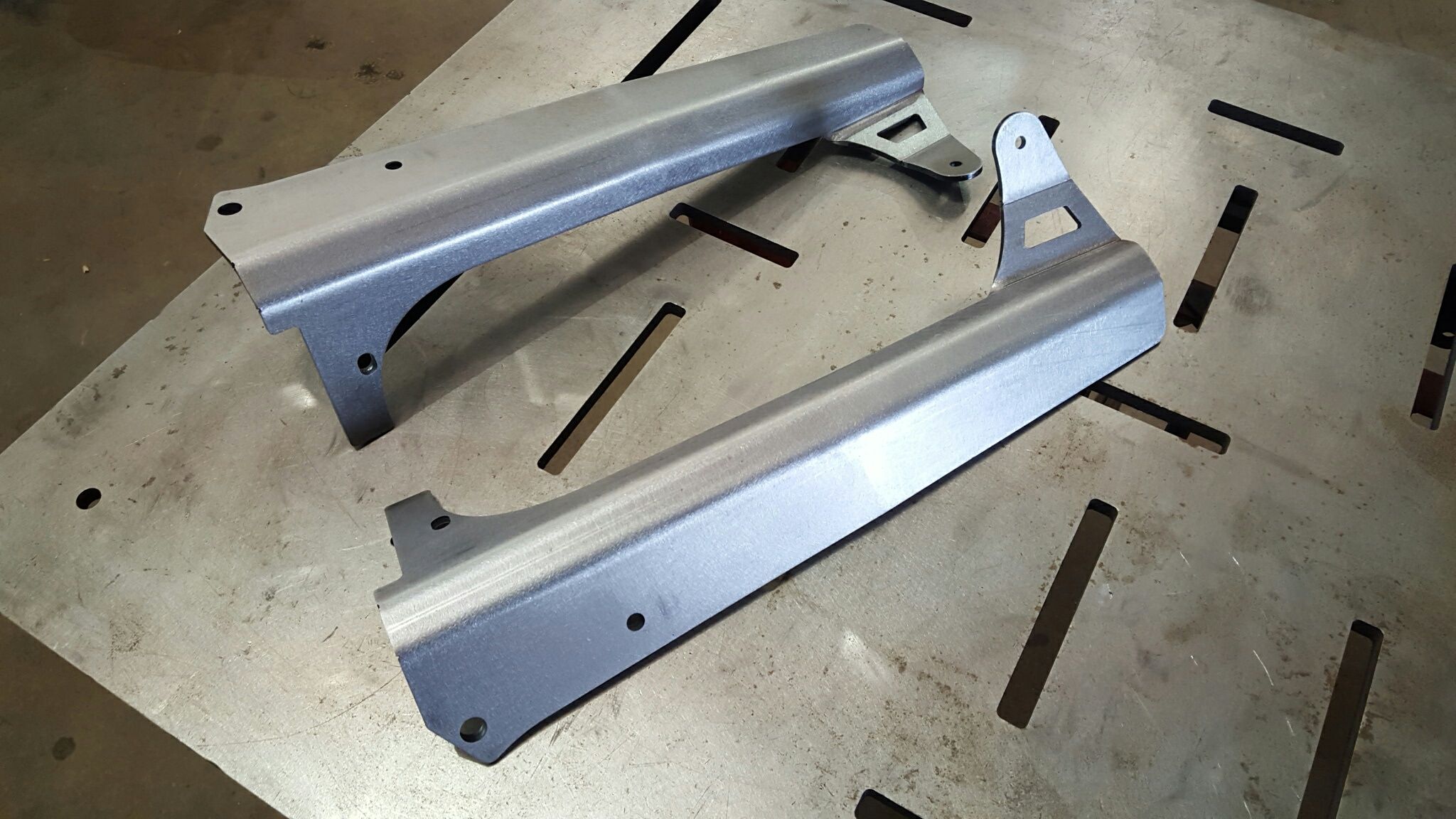

The Motobilt 51.5 inch LED Light Bar Brackets were design for both form and function. This product is supplied by OTC. The Motobilt LED Light Bar Mount was designed with both form and function in mind. This 51.5 inch LED Light Bar Mount works with LED Light bars measuring 51.5 inch wide at the mounting points, or can be shimmed with a washer to achieve a 51.375 inch mounting width. The mounting brackets were 3D CAD designed to fit close to the windshield frame without touching it. The only contact points are on the windshield hinge. The brackets are CNC laser cut from 3/16 inch high strength steel plate and then formed on a hydraulic press brake. The material used to fabricate the brackets is the exact same material used to make rocker guards and comp corners for ultimate protection. The Motobilt LED Light Bar Mounts not only mount light bars they also provide protection to the windshield frame.
The Motobilt TJ/LJ light bar brackets extend to the top of the windshield frame to provide full protection. To extend the LED Light Bar Brackets to the top of the windshield frame and keep a tight fit we had to add an additional bend half way up the bracket. The mounting point at the base of the brackets feature spacers welded in place to stand the bracket off the windshield frame. This allows the bracket to be spacer off the windshield frame and allow the wiring for the LED Light Bar to pass down behind the bracket. Please note not all wiring harnesses will fit. You will need to test fit to make sure the wire fits loosely behind the bracket during the install process. Mounting the brackets is a simple process. The brackets bolt into the upper half of the Jeep TJ/LJ windshield hinge. The light bar brackets are shipped bare steel. You will need to paint or powdercoat them before use. The brackets ship with button head bolts and washers.
Features:
Note:
Specifications:
| Country of Origin | USA |
| Sold As | Kit |
| Availability | Available |
| Hardware Included | Yes |
| Location | Front |
| Thickness | 3/16 Inch |
| Universal | No |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1997 | Jeep | Wrangler | Sahara | |
| 1998 | Jeep | Wrangler | Sahara | |
| 1999 | Jeep | Wrangler | Sahara | |
| 2000 | Jeep | Wrangler | Sahara | |
| 2001 | Jeep | Wrangler | Sahara | |
| 2002 | Jeep | Wrangler | Sahara | |
| 2003 | Jeep | Wrangler | Sahara | |
| 2004 | Jeep | Wrangler | Sahara | |
| 1997 | Jeep | Wrangler | SE | |
| 1998 | Jeep | Wrangler | SE | |
| 1999 | Jeep | Wrangler | SE | |
| 2000 | Jeep | Wrangler | SE | |
| 2001 | Jeep | Wrangler | SE | |
| 2002 | Jeep | Wrangler | SE | |
| 2003 | Jeep | Wrangler | SE | |
| 2004 | Jeep | Wrangler | SE | |
| 2005 | Jeep | Wrangler | SE | |
| 2006 | Jeep | Wrangler | SE | |
| 1997 | Jeep | Wrangler | Sport | |
| 1998 | Jeep | Wrangler | Sport | |
| 1999 | Jeep | Wrangler | Sport | |
| 2000 | Jeep | Wrangler | Sport | |
| 2001 | Jeep | Wrangler | Sport | |
| 2002 | Jeep | Wrangler | Sport | |
| 2003 | Jeep | Wrangler | Sport | |
| 2004 | Jeep | Wrangler | Sport | |
| 2005 | Jeep | Wrangler | Sport | |
| 2006 | Jeep | Wrangler | Sport | |
| 2002 | Jeep | Wrangler | X | |
| 2003 | Jeep | Wrangler | X | |
| 2004 | Jeep | Wrangler | X | |
| 2005 | Jeep | Wrangler | X | |
| 2006 | Jeep | Wrangler | X | |
| 2003 | Jeep | Wrangler | Rubicon | |
| 2004 | Jeep | Wrangler | Rubicon | |
| 2005 | Jeep | Wrangler | Rubicon | |
| 2006 | Jeep | Wrangler | Rubicon | |
| 2004 | Jeep | Wrangler | Unlimited | |
| 2005 | Jeep | Wrangler | Unlimited | |
| 2006 | Jeep | Wrangler | Unlimited | |
| 2005 | Jeep | Wrangler | Unlimited Rubicon | |
| 2006 | Jeep | Wrangler | Unlimited Rubicon | |
| 2006 | Jeep | Wrangler | 65th Anniversary Edition |
