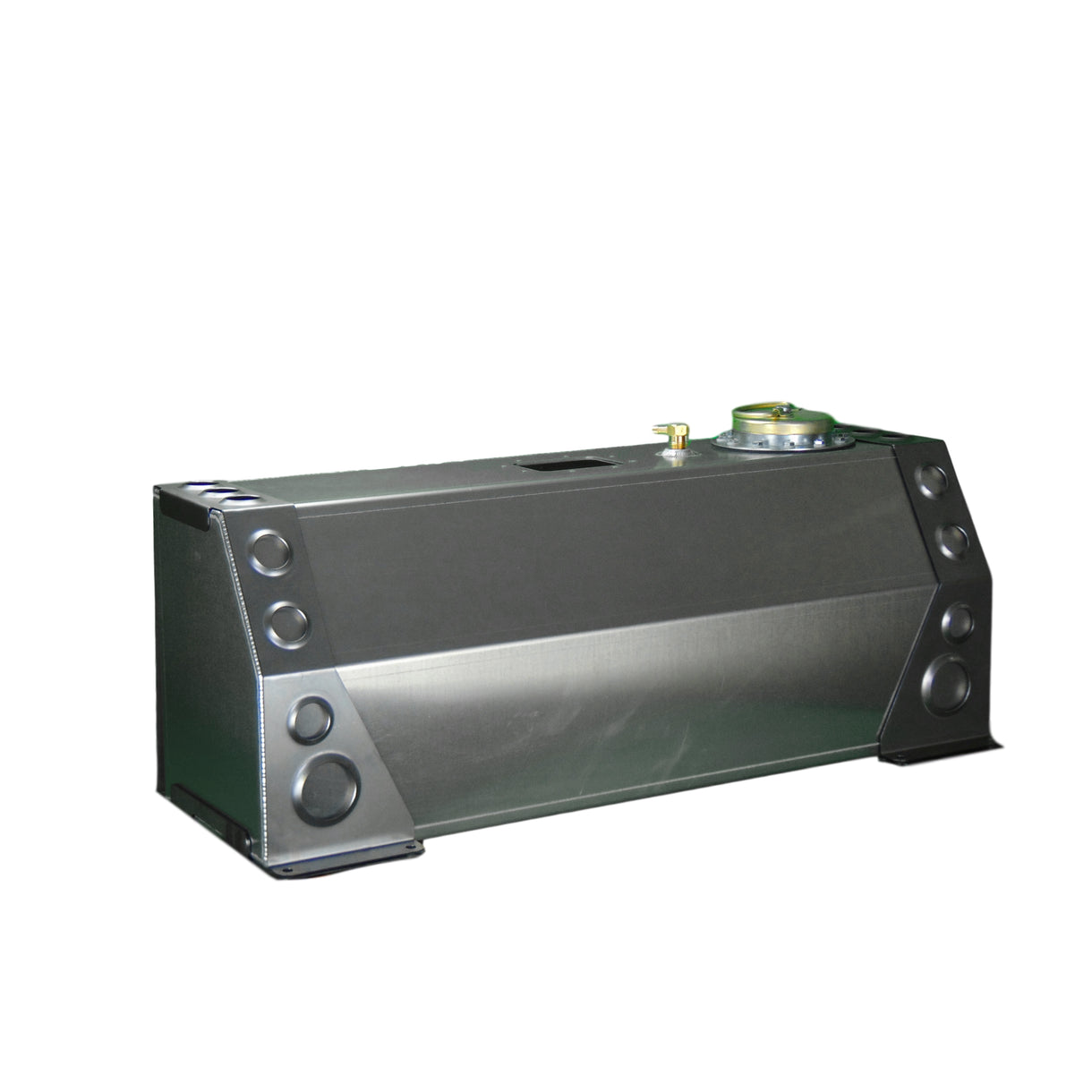

Check out the Motobilt Jeep YJ fuel tank with factory rectangular fuel pump cut out and mount package.. This tank is industry leading in that is was designed specifically for the YJ to maximize fuel capacity while retaining the rear seat. Motobilt offers a solution for relocating the fuel tank in your Jeep YJ. There are a few universal options available like the popular RCI 2161a which is basically a rectangular aluminum fuel cell.
It was not designed specifically for the Jeep YJ. The Motobilt Jeep YJ fuel tank was designed to fit behind the rear seat, use the factory rectangular fuel pump, and maximize the space behind the seat. It is actually contoured and angled to fit behind the seat.
The tank has a capacity of roughly 18 US gallons. The Motobilt fuel tank is CNC cut from 1/8 inch aluminum and formed on a press brake. The tank is TIG welded for ultimate strength. The tank includes a large D-ring style cap. This can be converted to remote fill by purchasing a different filler neck system that utilizes a 12 bolt, 5.38 bolt circle flange.
This package includes the 2 clamp down bodies capture the top and all four sides of the tank and bolt securely to the mounting base. These parts are CNC Laser Cut but from 16 gauge steel. The parts are formed on a hydraulic press break. This mount will ensure your fuel cell is mounted securely.
Specifications:
This fuel cell is used for applications where you are extending the wheel base and the rear axle would contact the factory fuel tank. It would also be used in situations where more ground clearance is needed. This kit works perfectly with the Motobilt Jeep YJ Back Half Kit where the frame rails are moved up and in for ultimate clearace.
We have included a mount specifically for the MB5000-YJ Fuel Cell. The kit consists of three parts: the main under tank plate and two clamp bodies. The under tank plate is CNC Laser Cut from .125 inch high strength steel plate. Mounting brackets are included!
Dimensions:
Notes:
Specifications:
| Country of Origin | US |
| Sold As | Kit |
| Availability | Available |
| Hardware Included | Yes |
| Thickness | 1/8 Inch |
| Universal | No |
| About |
Motobilt is a manufacturing company located in Ozark Alabama dedicated to producing quality American Made aftermarket parts for Jeeps and other off-road vehicles. Motobilt was founded in 2012 by, an off-road industry pioneer, Dan DuBose. We currently employ around 60 professionals in our 85,000 sq ft plant. We produce our Motobilt product line and manufacture for many other companies in the USA. |
