Upgrade your off-road adventures and heavy-duty tasks with the Carbon Offroad 4,500 lb Capacity Winch, specifically designed for ATVs, UTVs, side-by-sides, car trailers, and equipment transport.
This rugged, compact, and high-performance winch is a must-have for anyone looking to tackle tough terrains or simplify heavy lifting. Since September 2021, this winch has been redesigned for superior durability and ease of use, featuring improved clutch handle operation for smoother control, enhanced sealing for wet and rugged conditions, and upgraded components for long-lasting performance.
It comes standard with an integrated mounting plate for quick and simple installation, easily securing to an existing pedestal or designated winch mount on your trailer, ATV, or buggy. It is ideal for loading heavy equipment into vans, retrieving stuck ATVs, pulling boats onto trailers, and even opening cattle gates on livestock trucks.

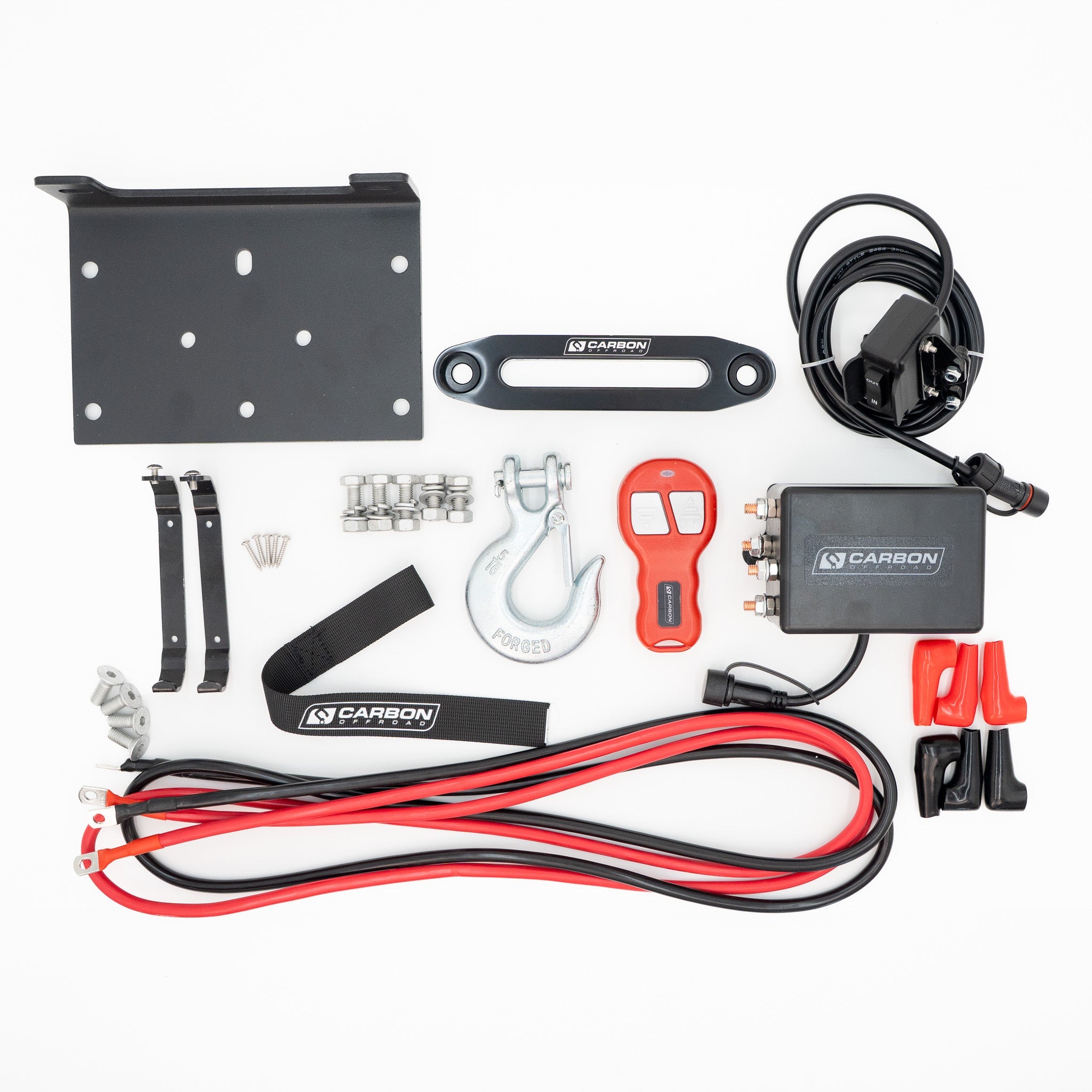

1 x Carbon CW-45 4500lb Winch
1 x Synthetic Rope (43 ft x 1/4" / 13m x 6.35mm)
1 x CNC Billet Alloy Black Anodised Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Integrated Mounting Plate & Hardware Set
| Feature | Specification Metric (Imperial) |
|---|---|
| Model | CW-45 |
| Rated Line Pull | 4,500 lbs (2,040 kg) single-line |
| Motor | 12V DC, 1.9 HP permanent magnet motor |
| Geartrain | 3-Stage Planetary (176:1 ratio) |
| Brake System | Dynamic & Mechanical |
| Synthetic Rope | 13m x 6.35mm (43' x 1/4") |
| Fairlead | CNC billet alloy black anodised |
| Mounting Bolt Pattern | 76mm x 167mm (3.0" x 6.59") |
| Winch Dimensions (L x W x H) | 379mm x 120mm x 115mm (14.9" x 4.7" x 4.5") |
| Shipping Weight | 12.2 kg (26.9 lbs) |
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 20.4 (6.2) | 31 | 1 / 4500 (2040) |
| 1000 (454) | 14.2 (4.3) | 65 | 2 / 3750 (1700) |
| 2000 (907) | 10.9 (3.3) | 96 | 3 / 3510 (1595) |
| 3000 (1360) | 7.7 (2.4) | 125 | 4 / 3300 (1500) |
| 4500 (2040) | 4.9 (1.5) | 175 | - |
