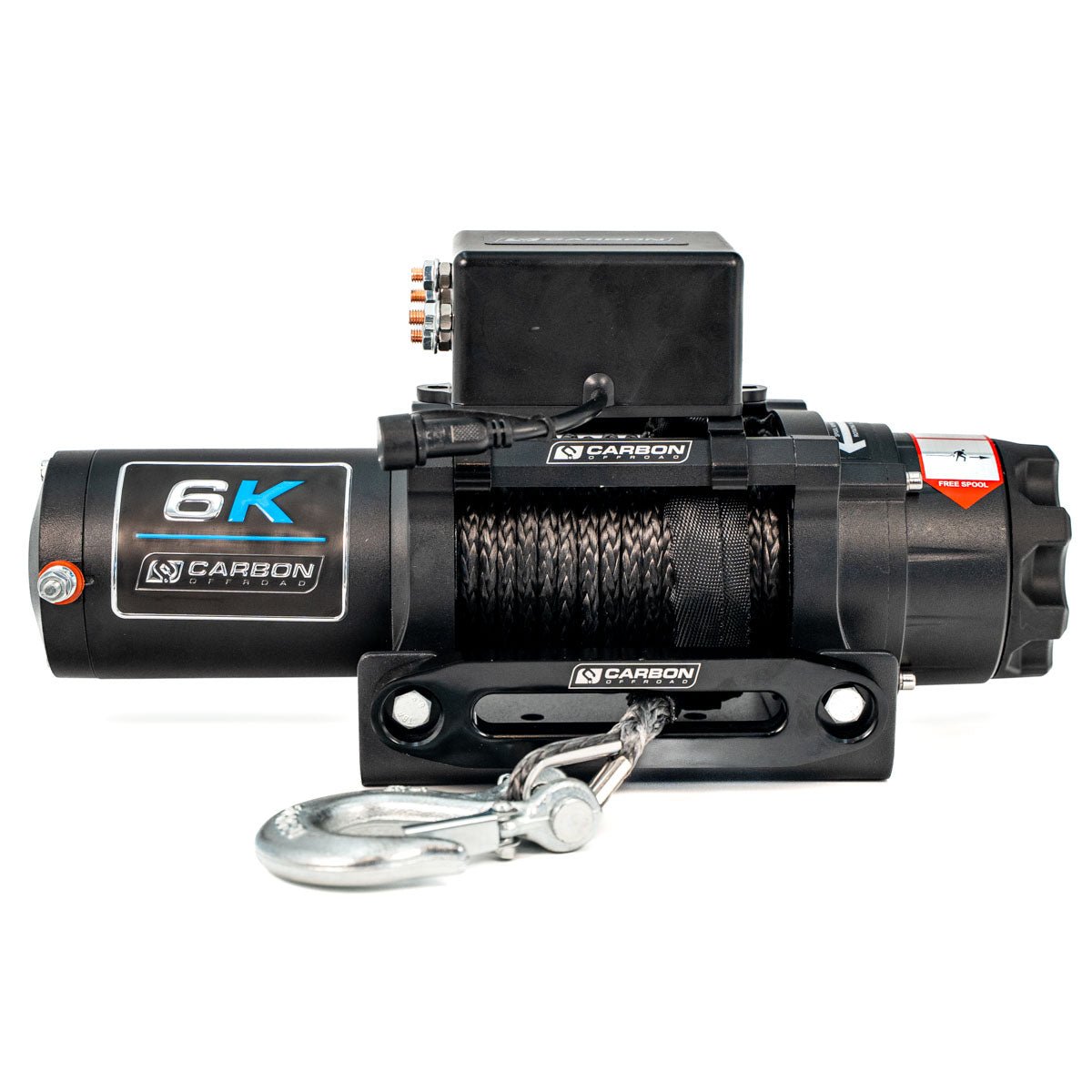

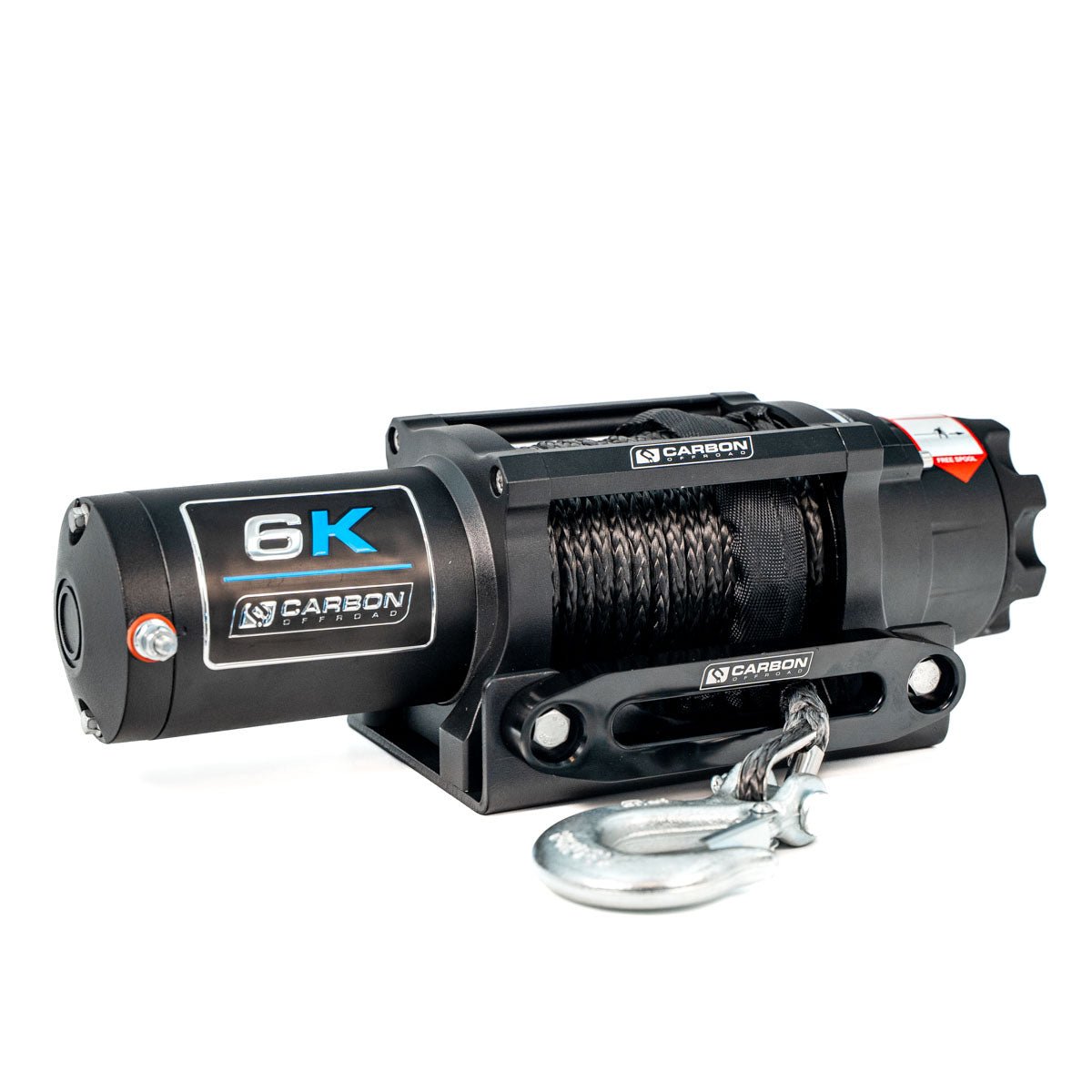

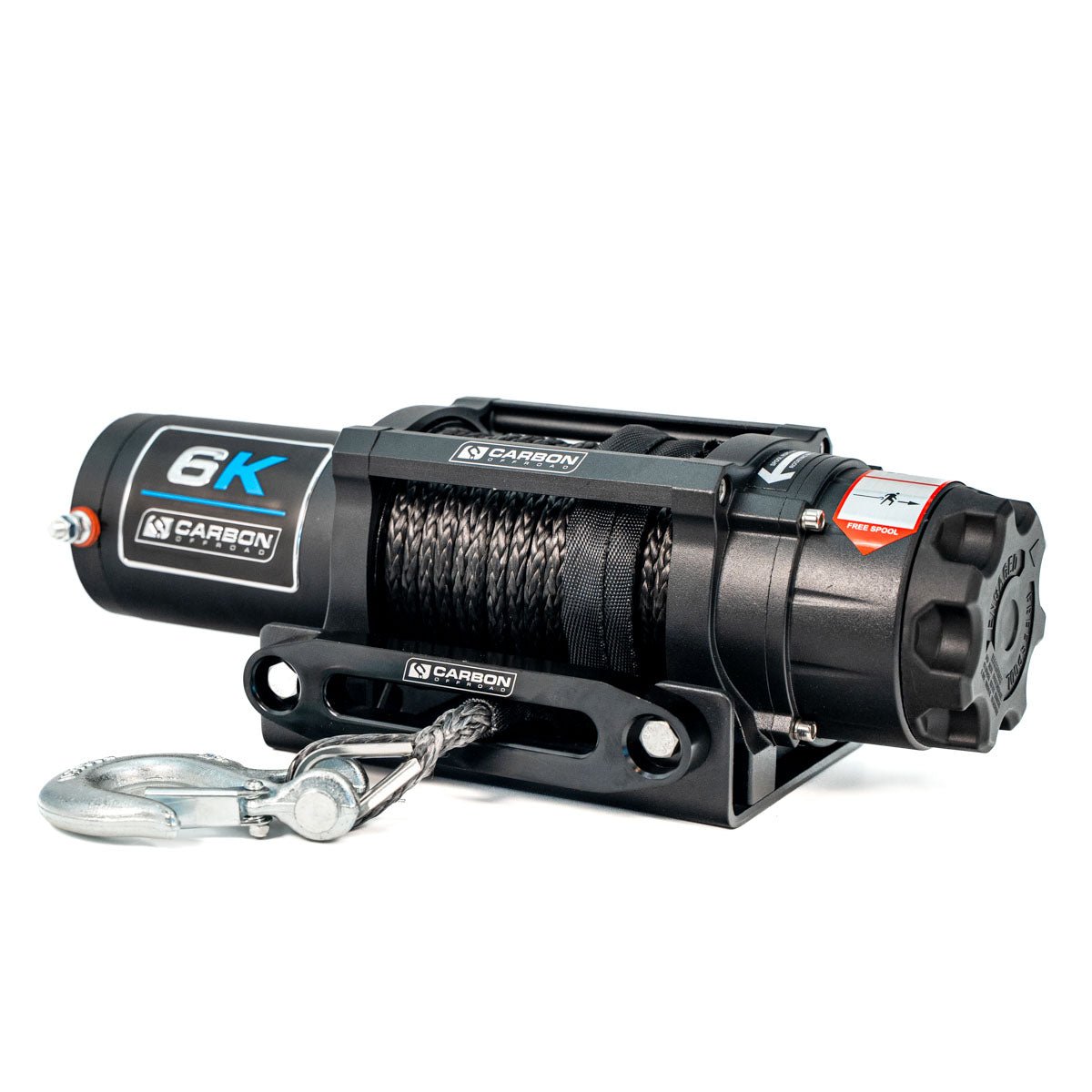

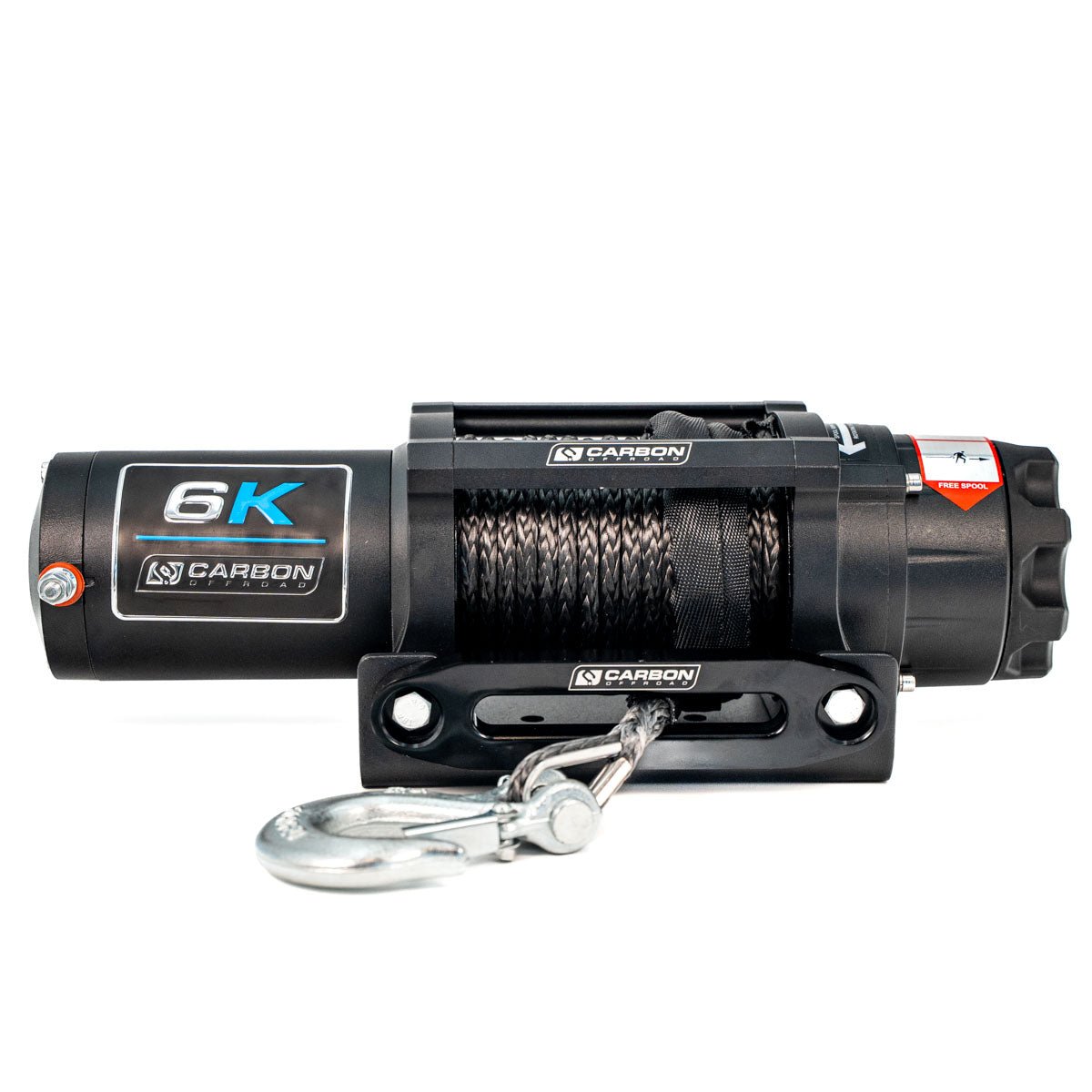

The Carbon Offroad 6000lb Winch is the perfect recovery and utility solution for ATVs, small 4WDs (like the Suzuki Jimny), caravans, trailers, and boats.
A small, compact winch with an integrated mounting plate makes installation as simple as it gets. Easily mount it to an existing pedestal on a trailer or into a winch location on a small-form-factor bull bar. With both wireless and wired remote controls included for free, it's a highly versatile setup.
It is perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers. It is a great all-rounder winch to make work easier or to get you out of the bog.

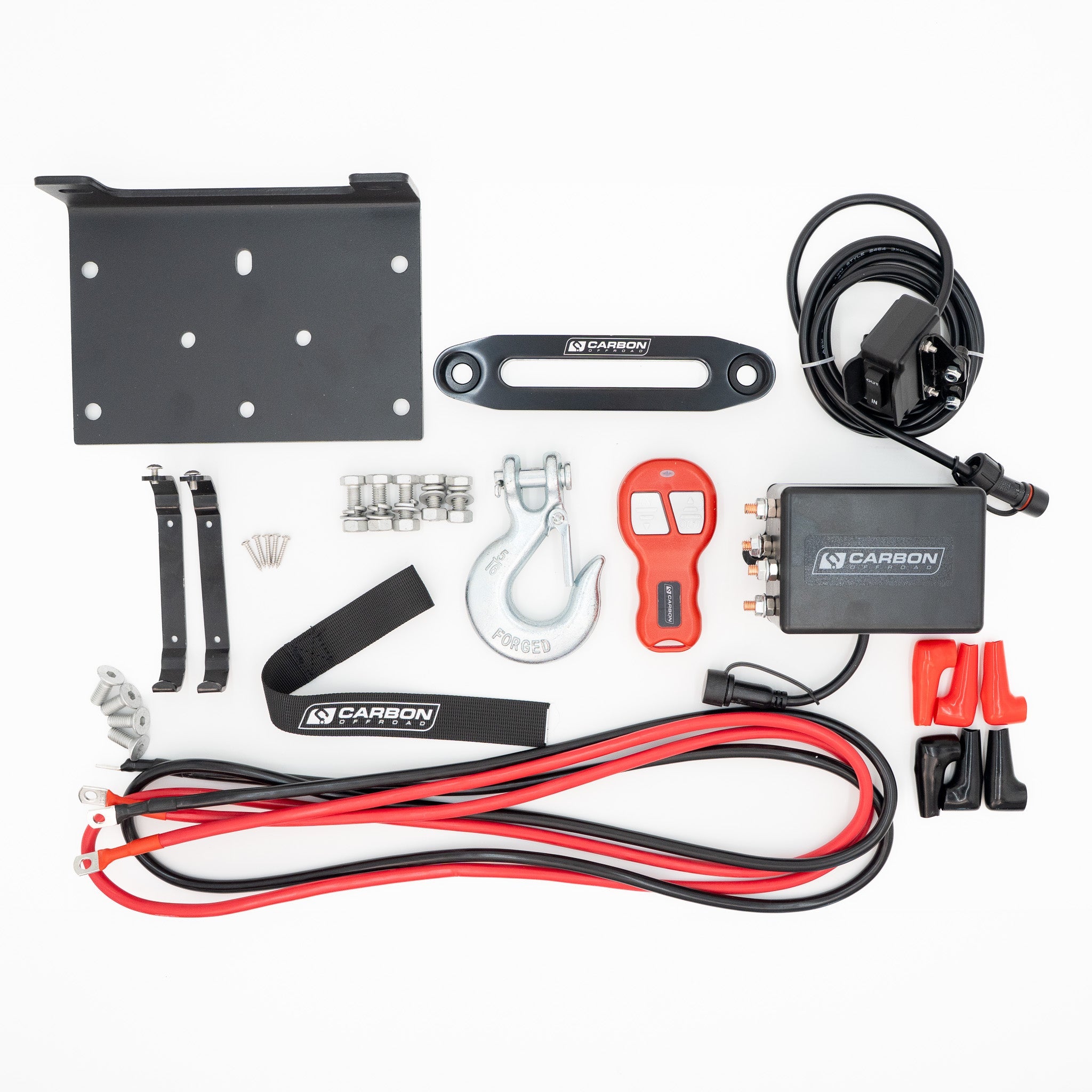

1 x Carbon Offroad 6000lb Winch (CW-XD6)
1 x Synthetic Rope (16m x 6.5mm diameter)
1 x Aluminium Hawse Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Integrated Mounting Plate & Bolt Kit
Note: The manual indicates that a circuit breaker is included; unfortunately, this is not the case. We apologize for any confusion.
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD6 |
| Rated Line Pull | 6000 lbs single-line |
| Motor | 12V DC 2.5 HP permanent magnet (24V available) |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 147:1 |
| Clutch | Roller disc full load automatic |
| Brake | Automatic brake in the motor bracket |
| IP Rating | IP68 for winch and solenoid (excludes remotes) |
| Synthetic Rope | 16m x 6.5mm (52.5 ft x 1/4") |
| Drum Dimensions | 51mm x 122mm (2.0" x 4.8") |
| Mounting Bolt Pattern | 167mm x 76mm (6.6" x 3.0") |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 385 x 115 x 119mm (15.2" x 4.5" x 4.7") |
| Packing Dimensions (L x W x H) | 530 x 170 x 230mm (20.9" x 6.7" x 9.1") |
| Winch Weight (Bare) | 8.3kg (18.3 lbs) with synthetic rope attached |
| Total Kit Weight | 11.2kg (24.7 lbs) including control box, cables, bolts & fairlead |
| Warranty | Lifetime Mechanical / 5 Year Electrical |
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 13.8 (4.2) | 15 | 1 / 6000 (2725) |
| 2000 (907) | 9.5 (2.9) | 125 | 2 / 5350 (2430) |
| 4000 (1814) | 7.2 (2.2) | 190 | 3 / 4780 (2170) |
| 6000 (2722) | 4.6 (1.4) | 240 | 4 / 4270 (1940) |
