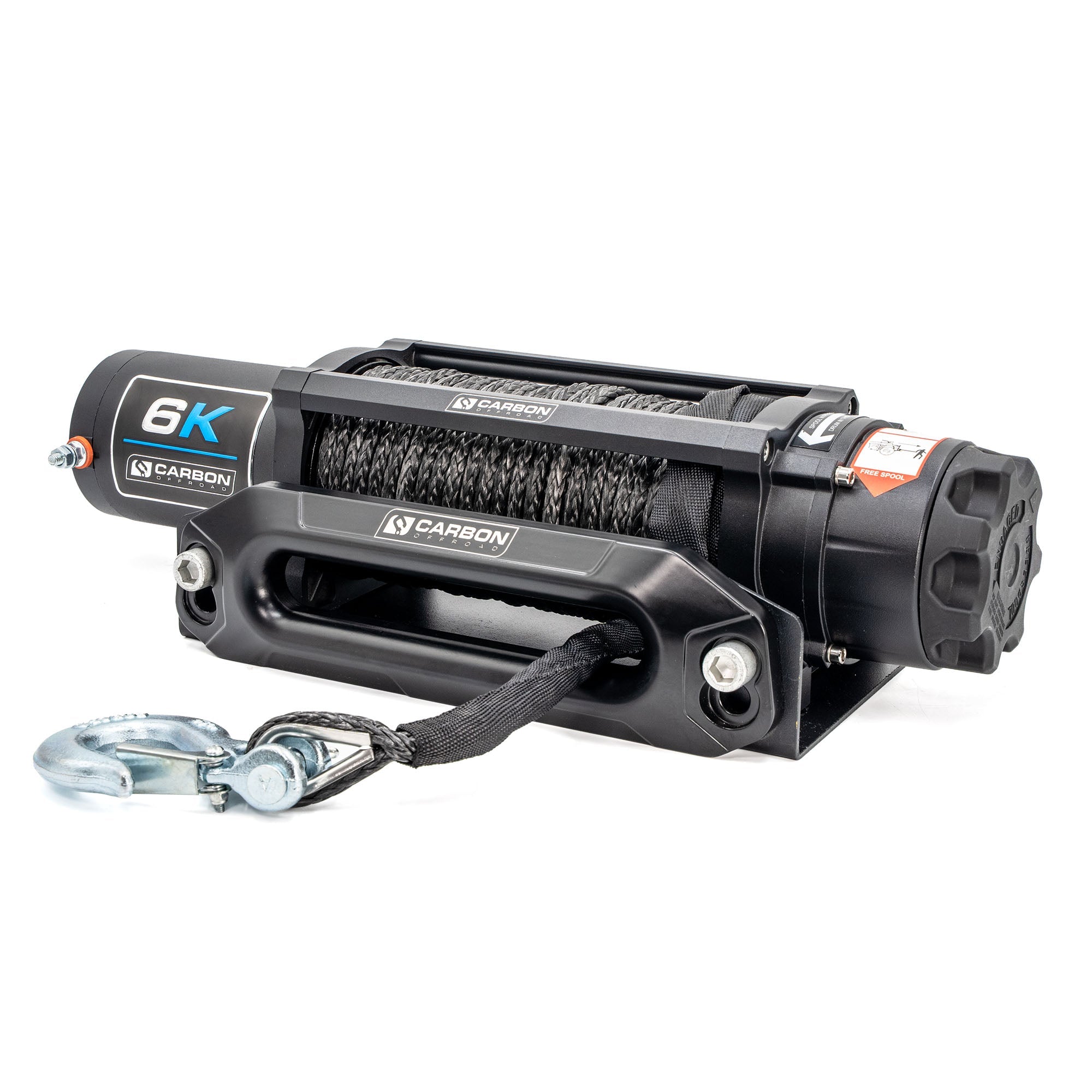

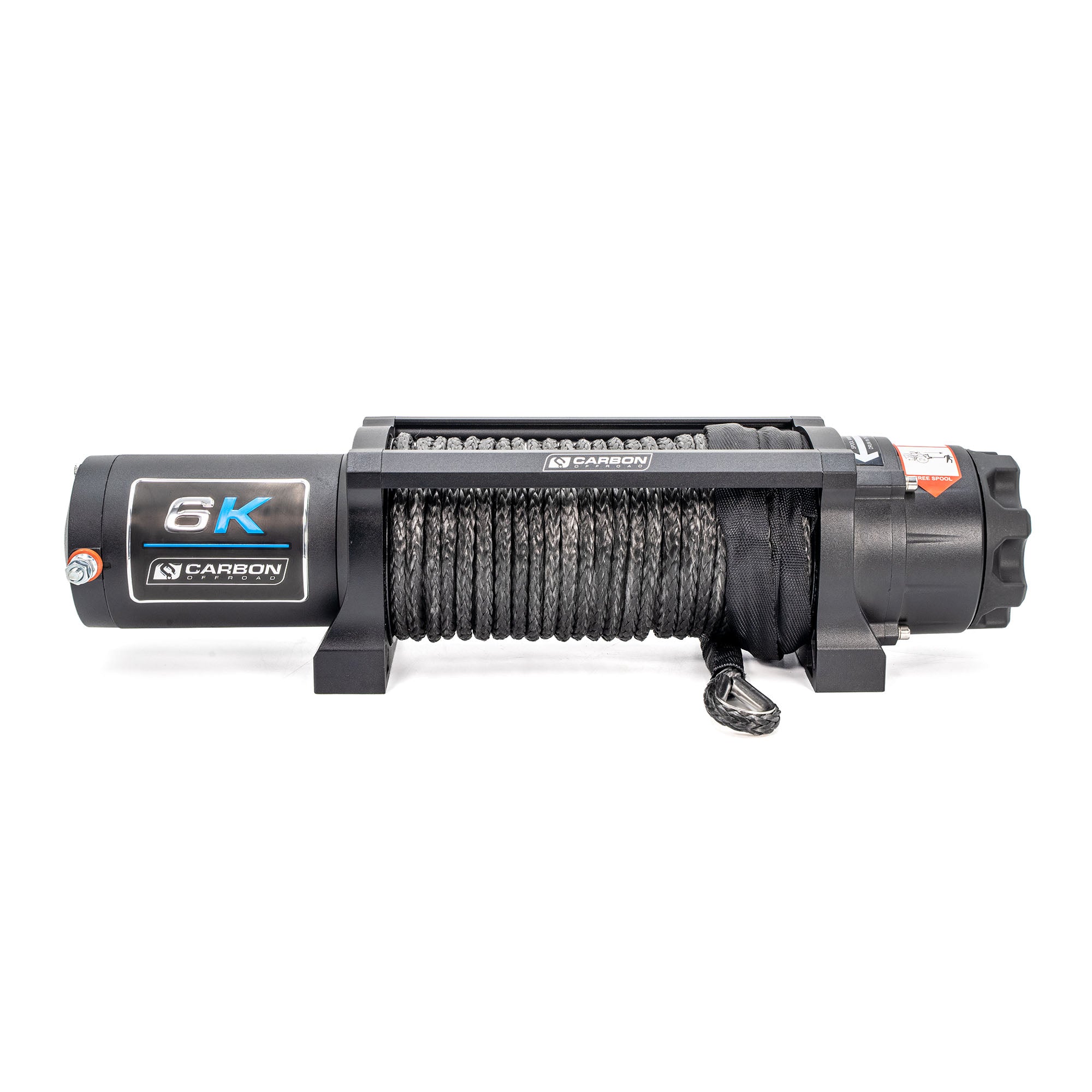

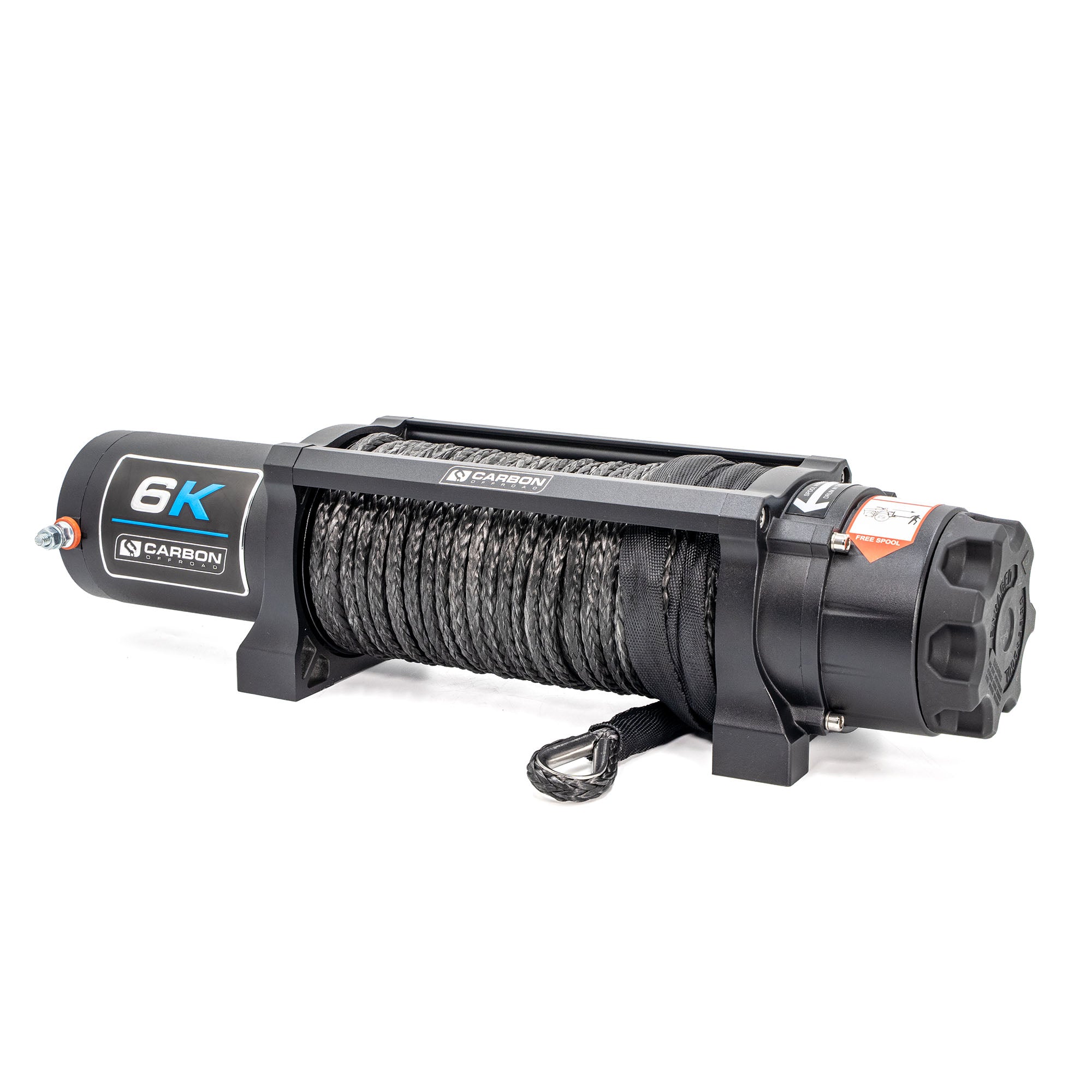

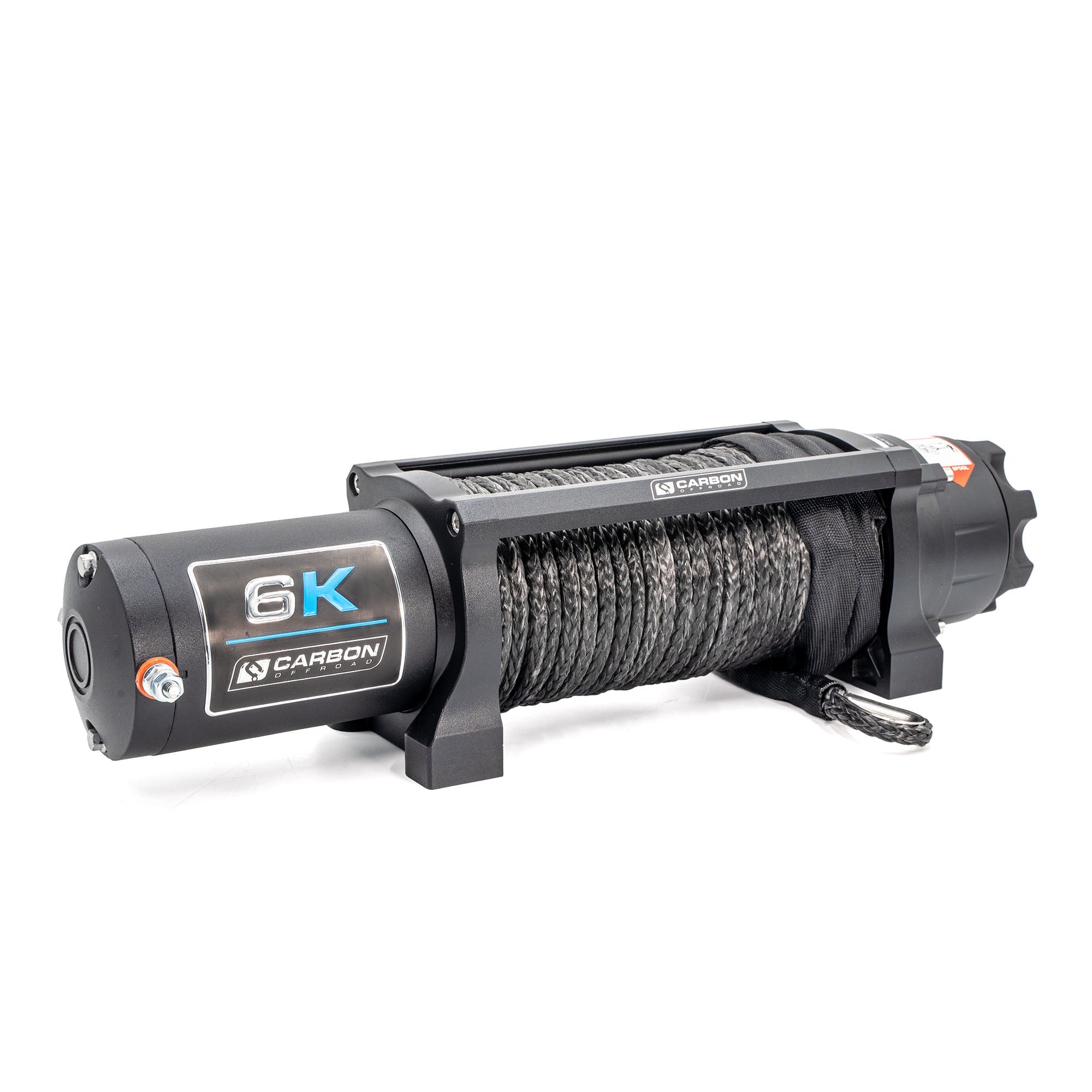

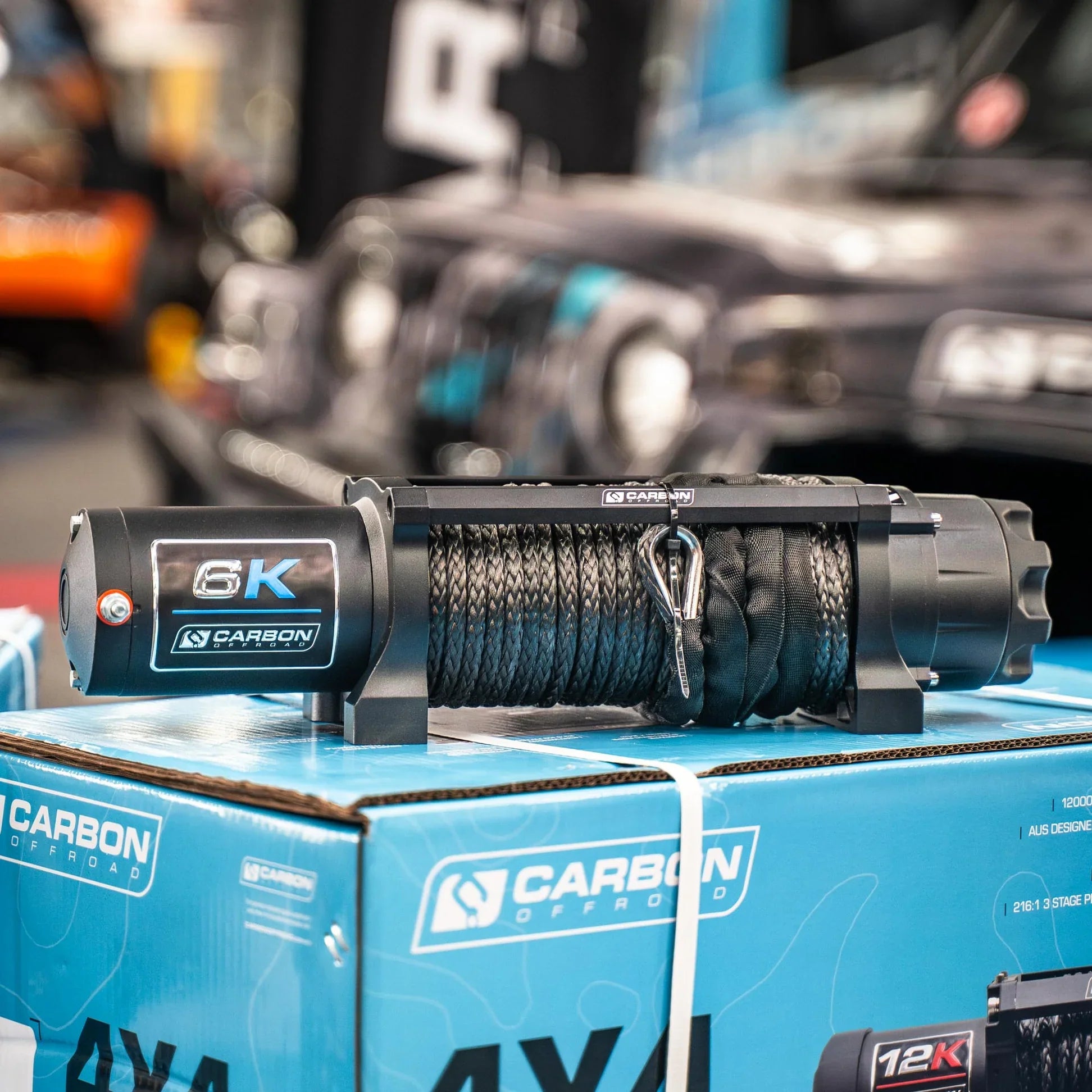

Carbon Offroad Long Drum 6000lb ATV - Small 4X4 Winch

The Carbon Offroad Long Drum 6000lb ATV / Small 4x4 Winch is a nimble workhorse created to reach where short-drum winches can’t.

Overview

With 6,000 lbs of pulling capacity and a generous 26m (85.3 ft) synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope?

If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired and wireless remotes, and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites and weekend getaways running smoothly.

Features

  • Extreme Durability: Sealed motor and geartrain (IP68 rated) allows for flawless operation in extreme, wet, and dusty conditions.

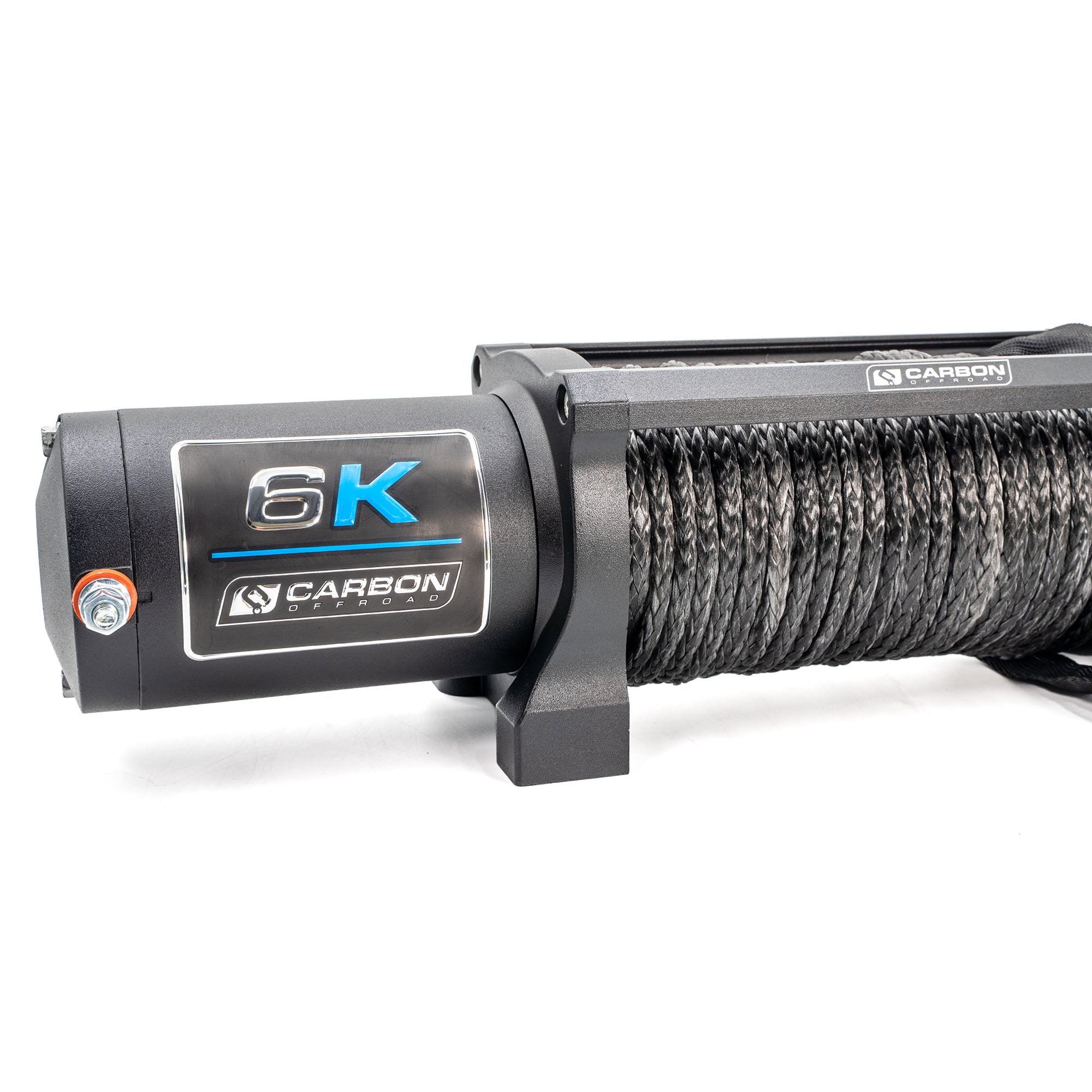

  • Heavy-Duty Pulling Power: A 12V DC 2.5 HP permanent magnet motor provides heavy-duty torque for increased pulling power.
  • Smooth Free-Spooling: Features a cam action clutch that disengages gears for near-silent, effortless free-spooling.
  • Secure Control: Mechanical and dynamic automatic braking offers increased control and reliably prevents rollback.

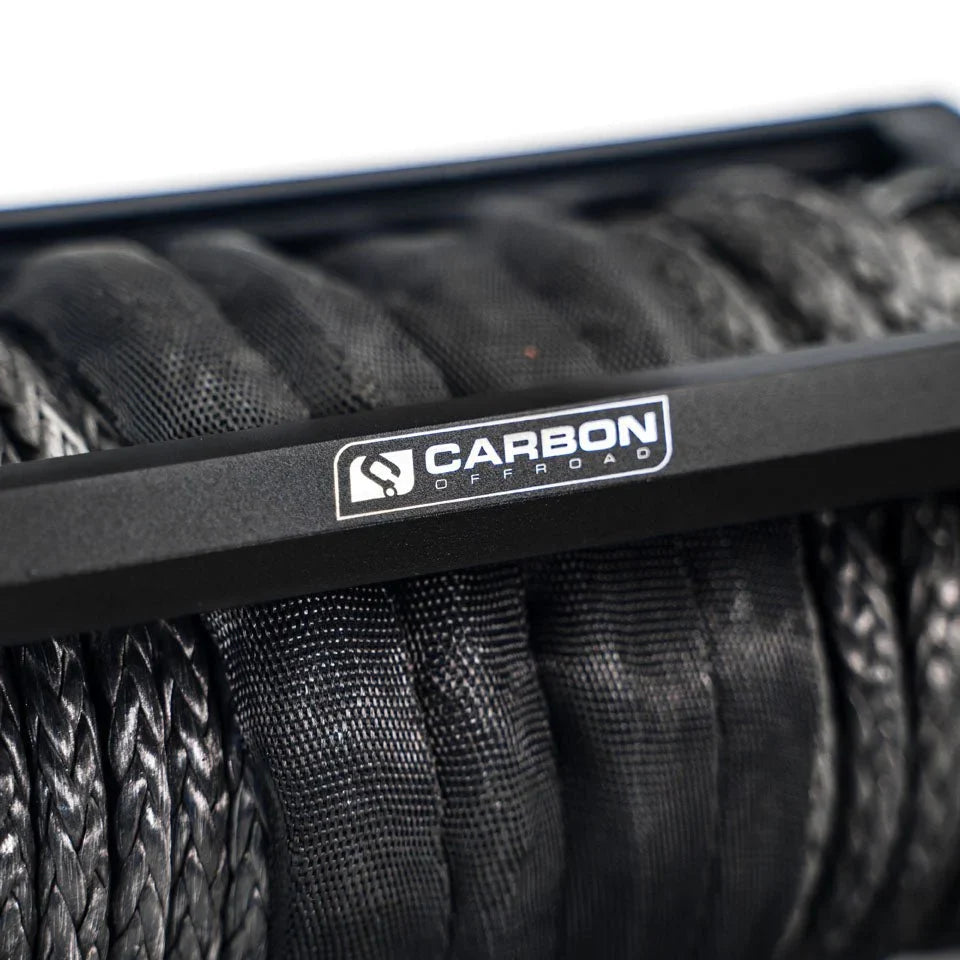

  • Extended Rope Reach: The long drum design accommodates an impressive 26m (85.3 ft) of synthetic rope, giving you more options in tricky recovery scenarios.

Contents

1 x Carbon Offroad Long Drum 6000lb Winch (CW-XD6L)
1 x Synthetic Rope (26m x 6.5mm diameter)

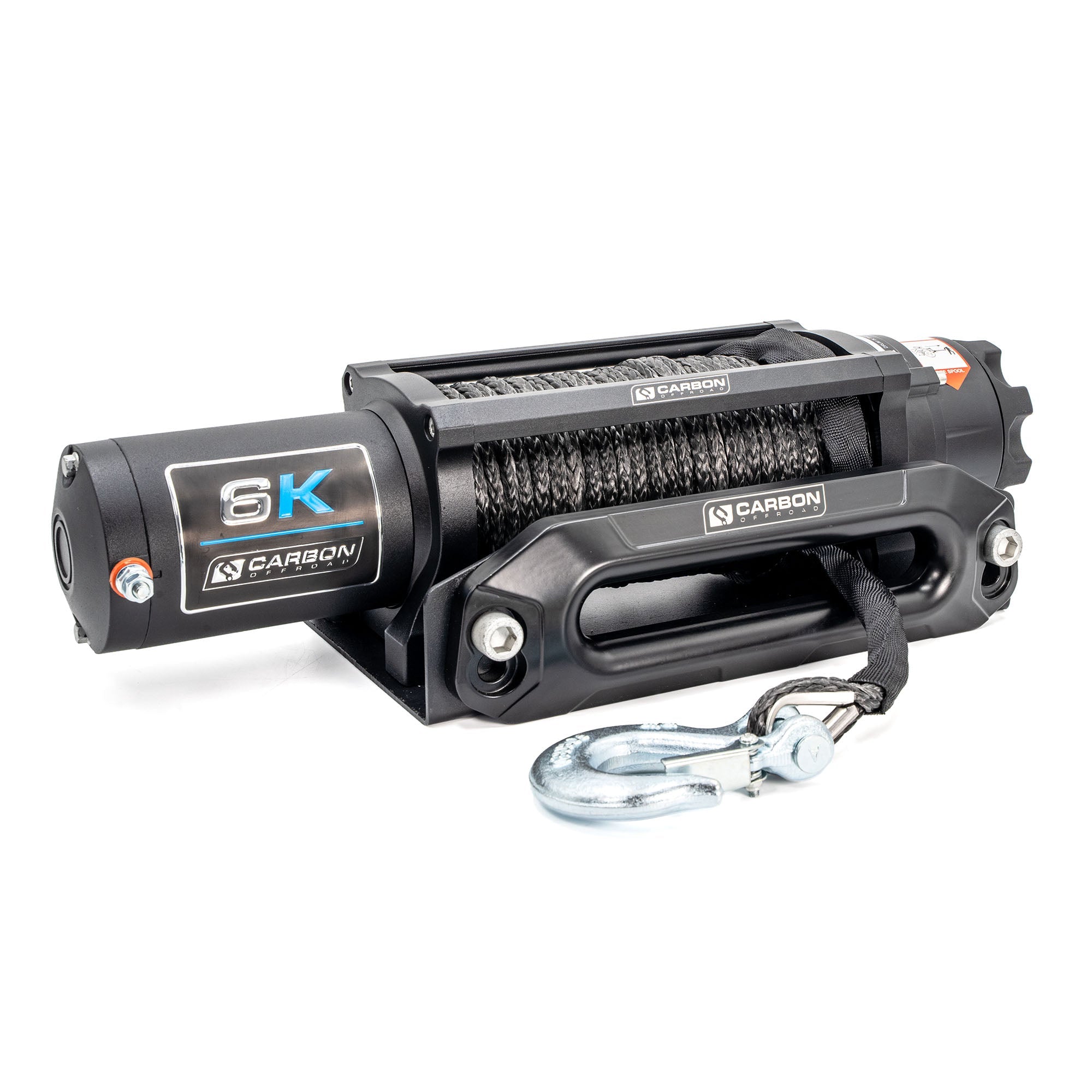

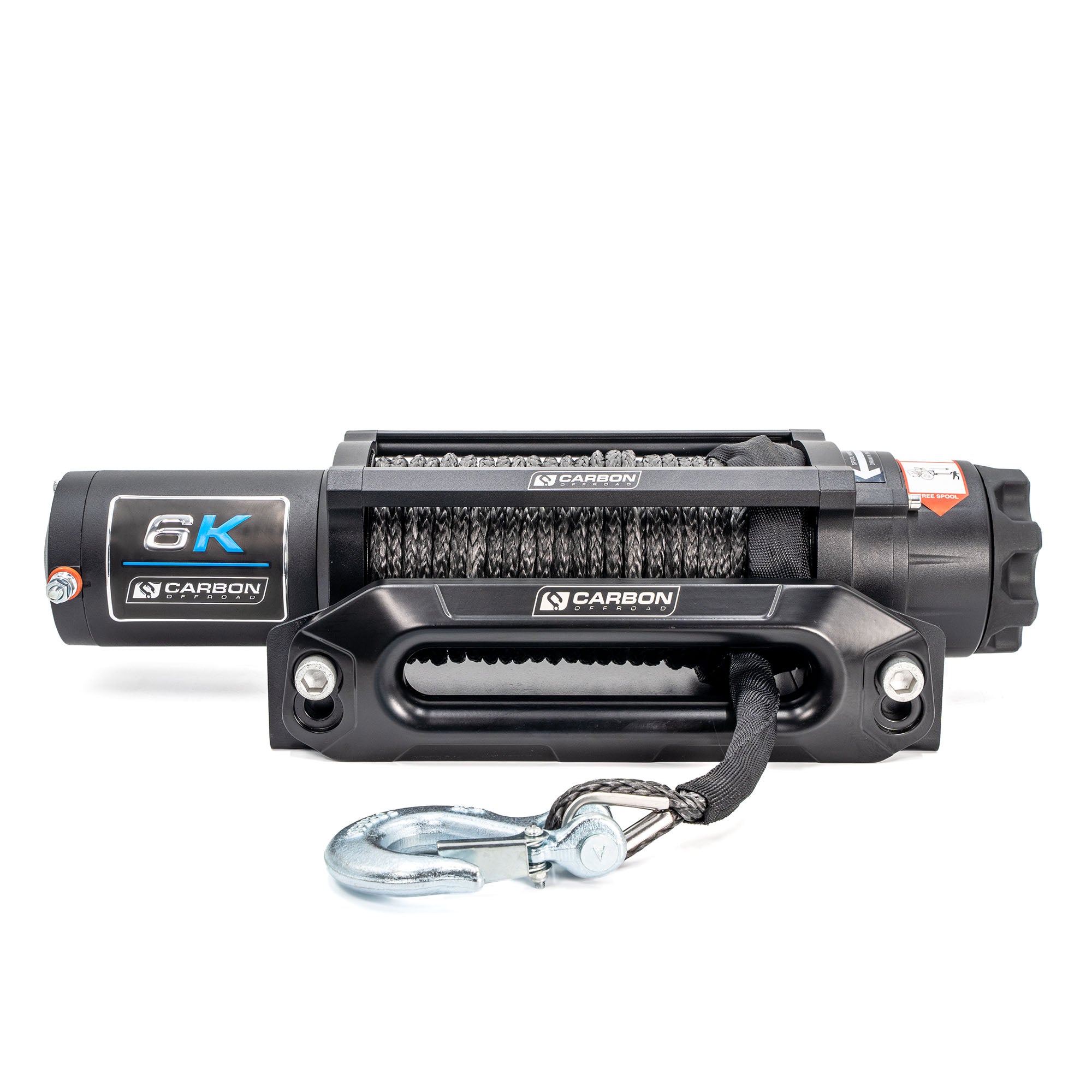

1 x Aluminium Hawse Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Control Box complete with cables & mounting bolts

Note: Please note this kit does not include the winch cradle shown in the pictures.



Feature Specification Metric (Imperial)
Part Number CW-XD6L
Rated Line Pull 6000 lbs (2725 kg) single-line
Motor 12V DC 2.5 HP permanent magnet
Geartrain 3-Stage Planetary
Gear Ratio 147:1
Clutch Roller disc full load automatic
Brake Automatic brake in the motor bracket
IP Rating IP68 for winch and solenoid (excludes remotes)
Synthetic Rope 26m x 6.5mm (85.3 ft x 1/4")
Drum Dimensions 51mm x 208mm (2.0" x 8.2")
Mounting Bolt Pattern 254mm x 76mm (10.0" x 3.0")
Recommended Battery 650 CCA minimum for winching
Winch Dimensions (L x W x H) 473 x 125 x 120mm (18.6" x 4.9" x 4.7")
Packing Dimensions (L x W x H) 530 x 170 x 230mm (20.9" x 6.7" x 9.1")
Winch Weight (Bare) 8.3kg (18.3 lbs) with synthetic rope attached
Total Kit Weight 11.2kg (24.7 lbs) including control box, cables, bolts & fairlead
Warranty Lifetime Mechanical / 5 Year Electrical



12V DC Performance Specs

Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 13.8 (4.2) 15 1 / 6000 (2725)
2000 (907) 9.5 (2.9) 125 2 / 5350 (2430)
4000 (1814) 7.2 (2.2) 190 3 / 4780 (2170)
6000 (2722) 4.6 (1.4) 240 4 / 4270 (1940)
