EXL XX 15" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm

DS18 EXL-XX15.4DHE 15" High Excursion Car Subwoofer 4000 Watts Max 4-Ohm DVC

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX15.4DHE is the answer to that. This subwoofer is a high addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

Highlights

  • High Excursion surround for a very high amount of XMAX.
  • Great power handling of 2000w RMS and 4000w Max.
  • Three inch black aluminum voice coil for high power handling and great efficiency.
  • FS of 35 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.

high excursion car subwoofer

high excursion car subwoofer

high excursion car subwoofer

high excursion car subwoofer

Technical Details
                                                   EXL-XX15.4DHE Product Manual

Specifications
Nominal Diameter 15
Nominal Impedance 4 + 4 Ohms
RMS Power Handling 2000W
MAX Power Handling 4000W
Sensitivity (1w/1m) 88 dB
Frequency Response 20Hz - 1.5KHz
Recommended Lo Pass Crossover 80 Hz
Motor:
VC Diameter 3" / 75.6mm
VC Former Material Black Aluminum
Winding Material CCAW
Cone Material Paper
Dust Cap Material Glass Fiber
Surround Material Foam
Basket Material Aluminum
Basket Color/Finish Black
Magnet Material Ferrite
Magnet Weight 306 Oz
Displacement Volume 3.26L
Thiele & Small Parameters
Equivalent Vol Vas 29.965L
Excursion(one way) Xmax 42 mm
Free Air Resonance Fs 35.6 Hz
Mechanical Factor Qms 7.098
Electrical Factor Qes 0.68
Total Factor Qts 0.62
Moving Mass Mms 410.638 g
Compliance Cms 0.027 mm/N
Bl Factor BL 19.865
VC Inductance Le 11.25 mH
Diaphragm Area Sd 804.25 cm²
Dc Resistance Re 3.6 + 3.6 ohms
Efficiency Bandwidth Product EBP 52.3

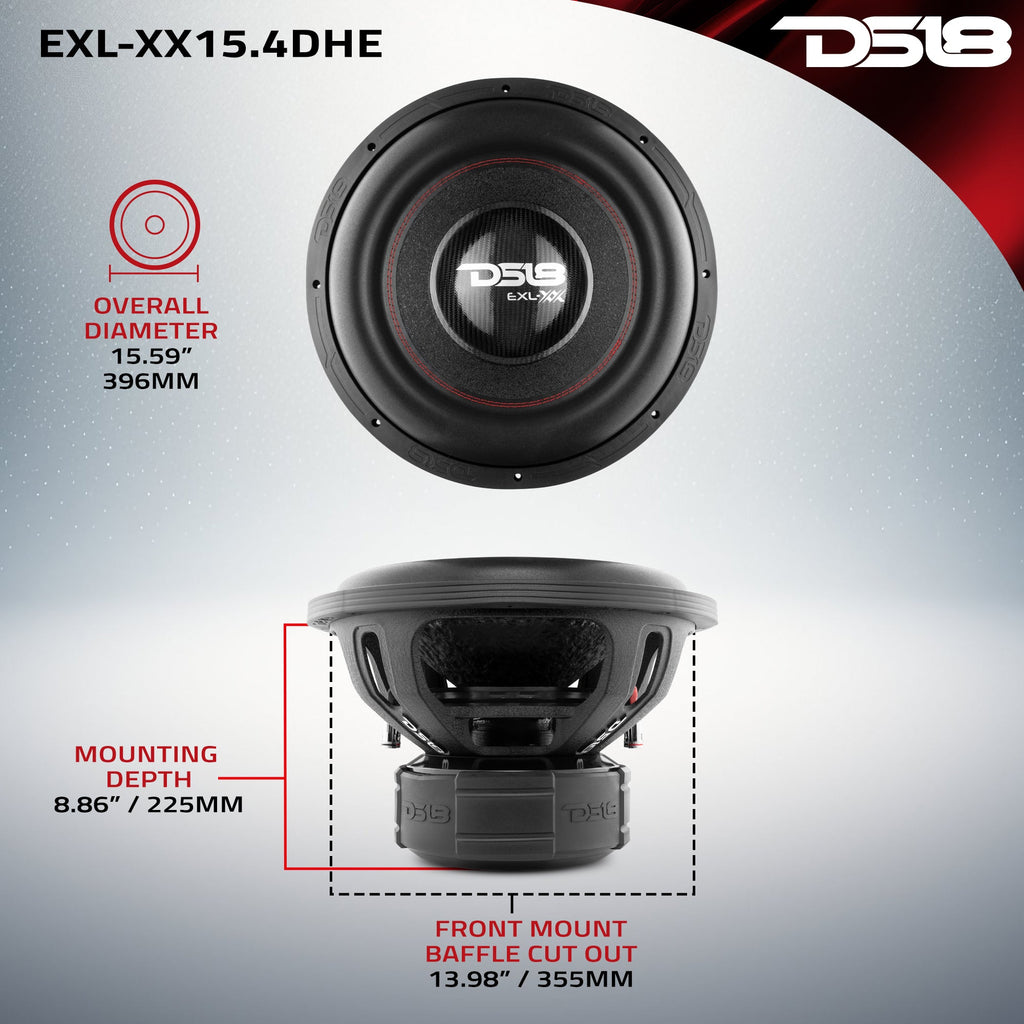

Measurements
Overall Diameter 15.59" / 396mm
Overall Depth 10.24" / 260mm
Front Mount Baffle Cutout 13.98" / 355mm
Mounting Depth 8.86" / 225mm
Motor Diameter 8.86" / 225mm
Box Info
Box Info
Read More
Read Less
