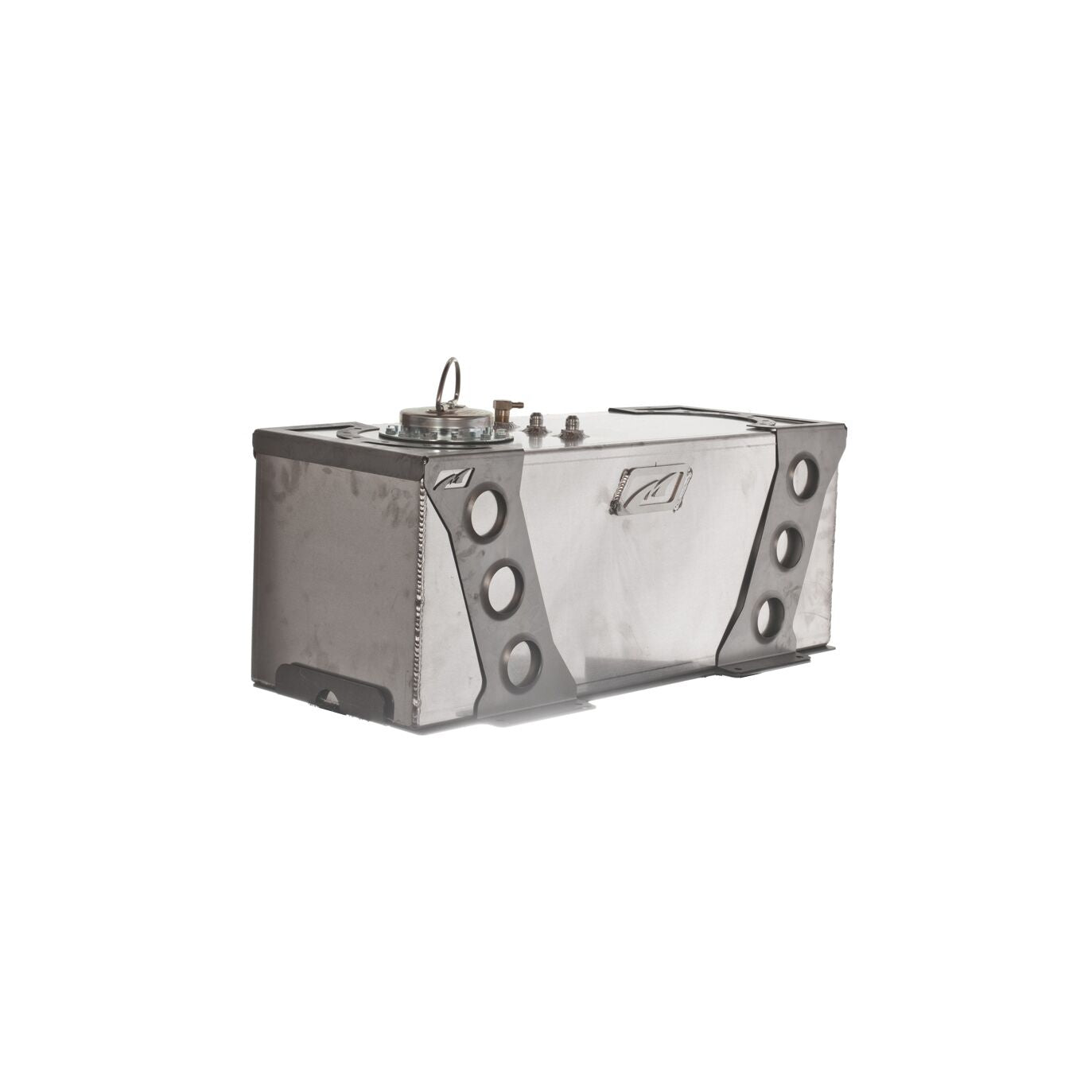

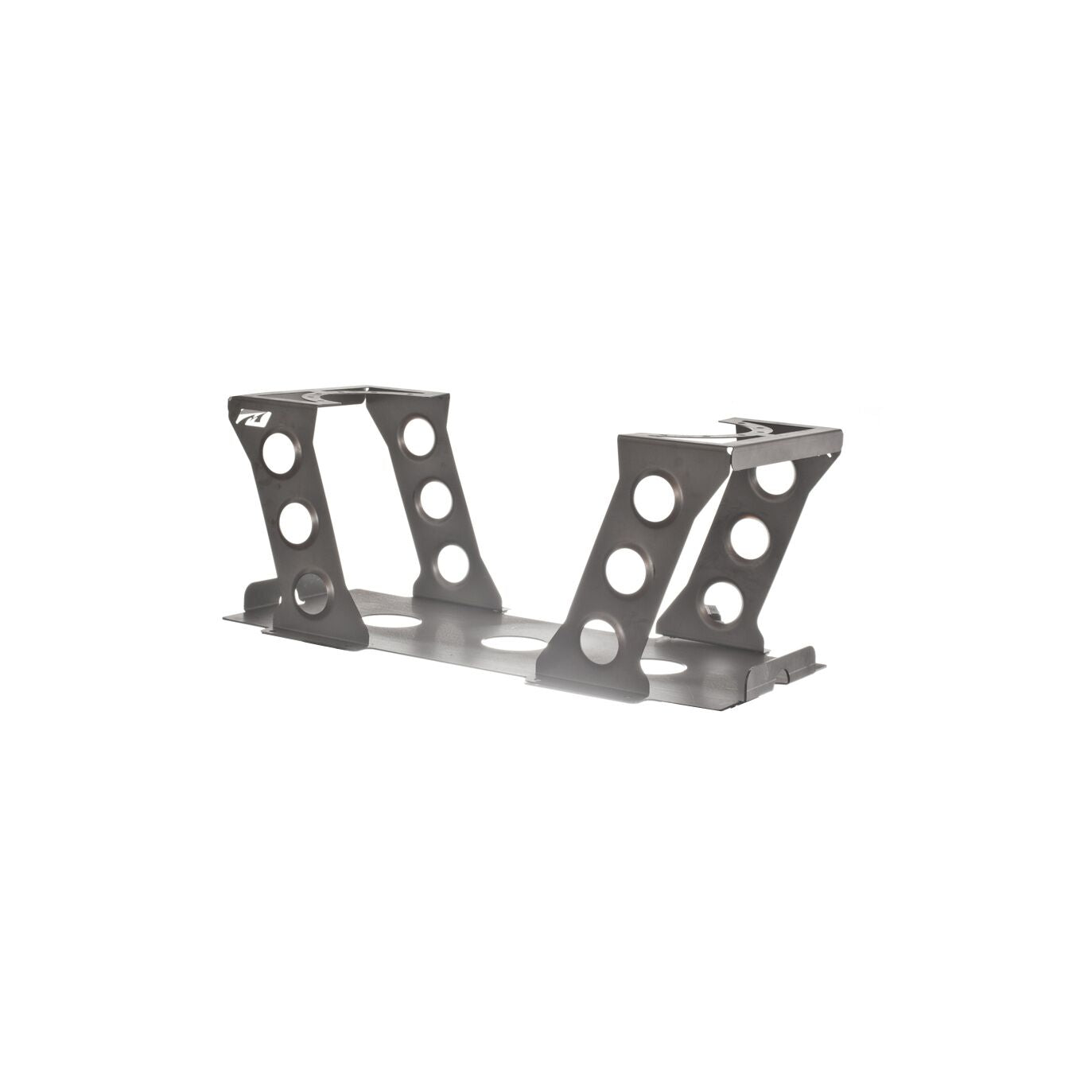

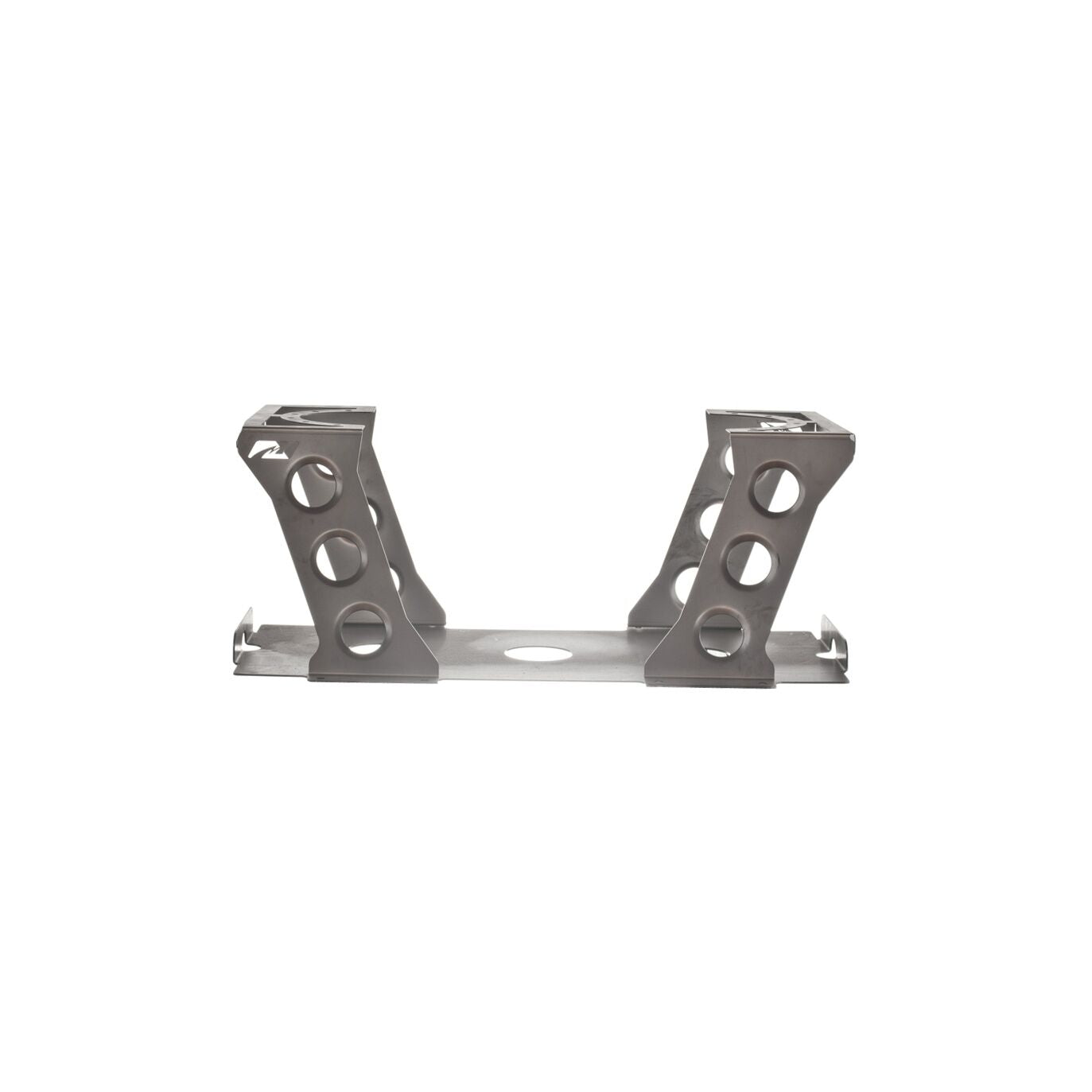

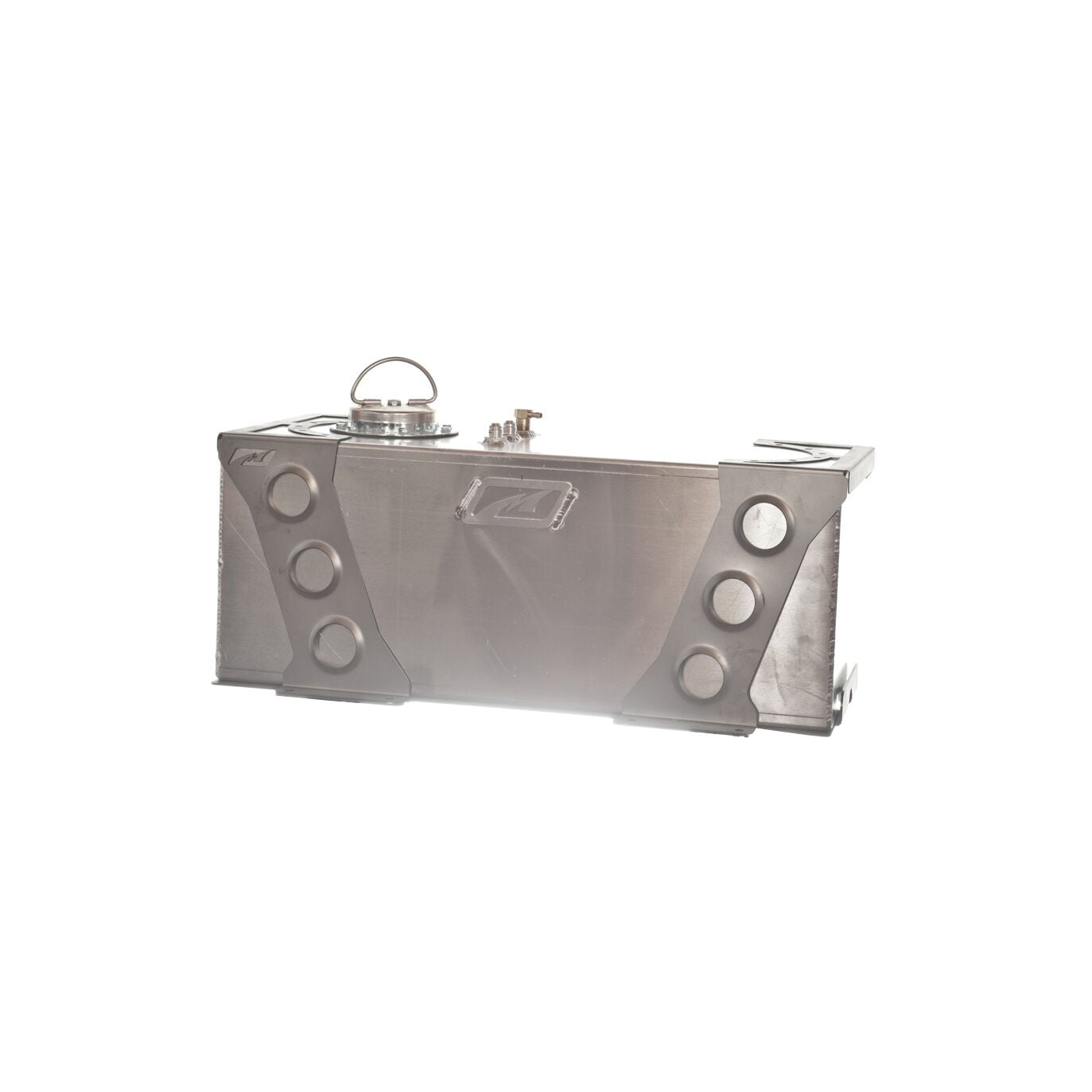

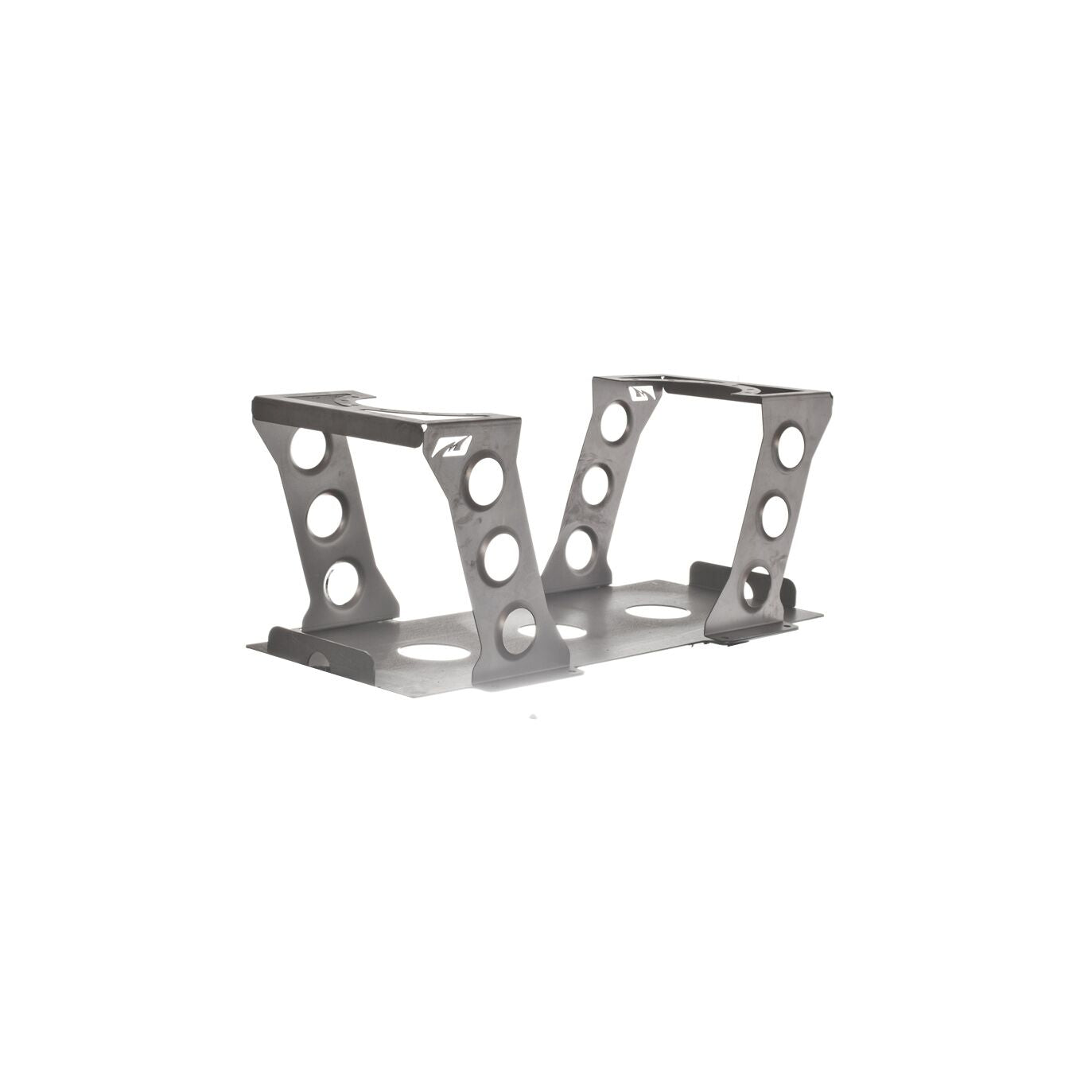

The Motobilt Fuel Cell Mount for the 30 x 12 x 12 or the MB5010 TJ/LJ was designed utilizing the latest 3D CAD design software to ensure a proper fit. The kit consists of three parts including the main under tank plate and two clamp bodies. The main under tank plate is a one piece design unlike some of the others on the market.
This design cost a little more to manufacture due to the large plate. It eliminates the sharp edges coming in contact with the bottom side of the fuel cell. This can be important in some situations where you may have body and/or chassis flex. The under tank plate is CNC Laser Cut from .125 inch high strength steel plate. You can weld your own mounting brackets to the bottom if needed or utilize the 8 bolt holes already in the part.
The 2 clamp down bodies capture the top and all four sides of the tank and bolt securely to the mounting base. These parts are CNC Laser Cut but from 16 gauge steel. The parts are formed on a hydraulic press brake.
The Fuel cell mount is shipped bare metal. You will need to paint or powdercoat the part. The bolts required are not shipped due to the different mounting options. The fuel cell is not included with the mount.
Note:
Specifications:
| Country of Origin | USA |
| Sold As | Kit |
| Availability | Available |
| Location | Rear |
| Universal | No |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1997 | Jeep | Wrangler | Sahara | |
| 1998 | Jeep | Wrangler | Sahara | |
| 1999 | Jeep | Wrangler | Sahara | |
| 2000 | Jeep | Wrangler | Sahara | |
| 2001 | Jeep | Wrangler | Sahara | |
| 2002 | Jeep | Wrangler | Sahara | |
| 2003 | Jeep | Wrangler | Sahara | |
| 2004 | Jeep | Wrangler | Sahara | |
| 1997 | Jeep | Wrangler | SE | |
| 1998 | Jeep | Wrangler | SE | |
| 1999 | Jeep | Wrangler | SE | |
| 2000 | Jeep | Wrangler | SE | |
| 2001 | Jeep | Wrangler | SE | |
| 2002 | Jeep | Wrangler | SE | |
| 2003 | Jeep | Wrangler | SE | |
| 2004 | Jeep | Wrangler | SE | |
| 2005 | Jeep | Wrangler | SE | |
| 2006 | Jeep | Wrangler | SE | |
| 1997 | Jeep | Wrangler | Sport | |
| 1998 | Jeep | Wrangler | Sport | |
| 1999 | Jeep | Wrangler | Sport | |
| 2000 | Jeep | Wrangler | Sport | |
| 2001 | Jeep | Wrangler | Sport | |
| 2002 | Jeep | Wrangler | Sport | |
| 2003 | Jeep | Wrangler | Sport | |
| 2004 | Jeep | Wrangler | Sport | |
| 2005 | Jeep | Wrangler | Sport | |
| 2006 | Jeep | Wrangler | Sport | |
| 2002 | Jeep | Wrangler | X | |
| 2003 | Jeep | Wrangler | X | |
| 2004 | Jeep | Wrangler | X | |
| 2005 | Jeep | Wrangler | X | |
| 2006 | Jeep | Wrangler | X | |
| 2003 | Jeep | Wrangler | Rubicon | |
| 2004 | Jeep | Wrangler | Rubicon | |
| 2005 | Jeep | Wrangler | Rubicon | |
| 2006 | Jeep | Wrangler | Rubicon | |
| 2004 | Jeep | Wrangler | Unlimited | |
| 2005 | Jeep | Wrangler | Unlimited | |
| 2006 | Jeep | Wrangler | Unlimited | |
| 2005 | Jeep | Wrangler | Unlimited Rubicon | |
| 2006 | Jeep | Wrangler | Unlimited Rubicon | |
| 2006 | Jeep | Wrangler | 65th Anniversary Edition |
