Jeep Cherokee 8.0 Inch Pro Series 3 Link Long Arm Lift Kit 1984-2001 XJ Clayton Off Road - COR-3601031

GQHS_COR-3601031
COR-3601031
Long Arm Lift Kits
$3,490.90

customers are viewing this product
Jeep Cherokee 8.0 Inch Pro Series 3 Link Long Arm Lift Kit 1984-2001 XJ Clayton Off Road - COR-3601031

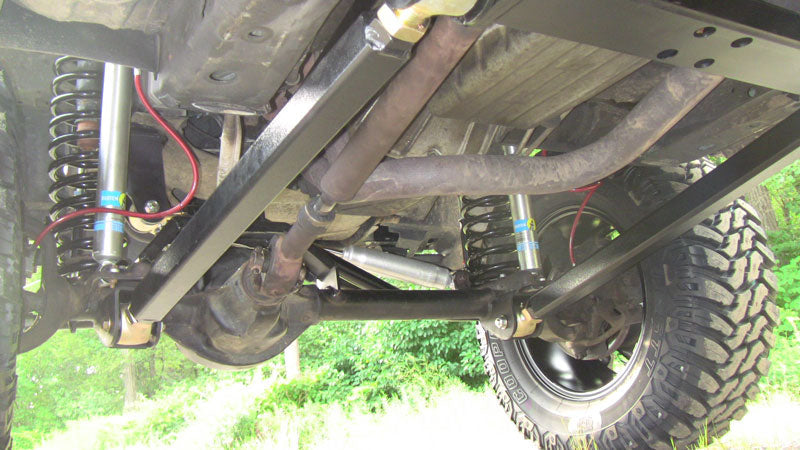

Clayton Off Road Inc. builds the ultimate 3 link suspension system. We start by using pro series arms. Pro series arms feature a forged johnny joint at one end and a dual durometer, maintenance free, self-centering GIIRO Joint at the other for maximum flex and adjustability.

We use the same 3-piece cross member used in all our long arm kits for easy access to your transmission.

The 3-link version comes with a cross member and axle side bracket. Separate 3 link bracket MUST be welded fully before installing the cross member in the vehicle.

If you are using a stock D30 front axle you can use the optional 3 link truss. This gives you a very strong mounting location to attach the top 3 link axle mount. This mount will Not work on aftermarket axle.

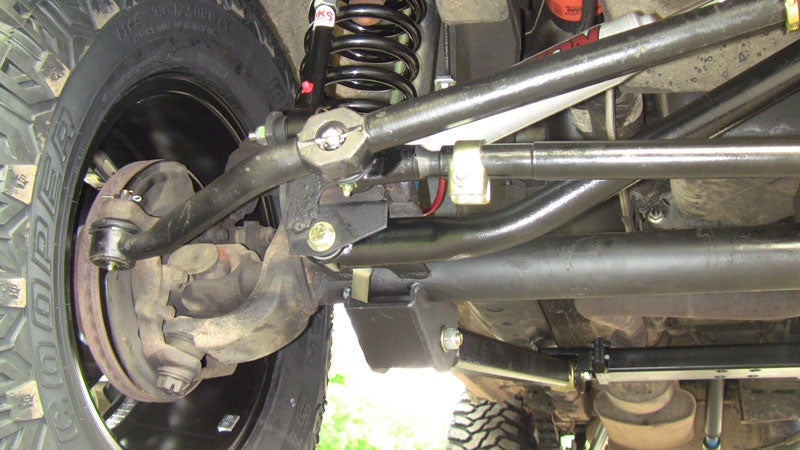

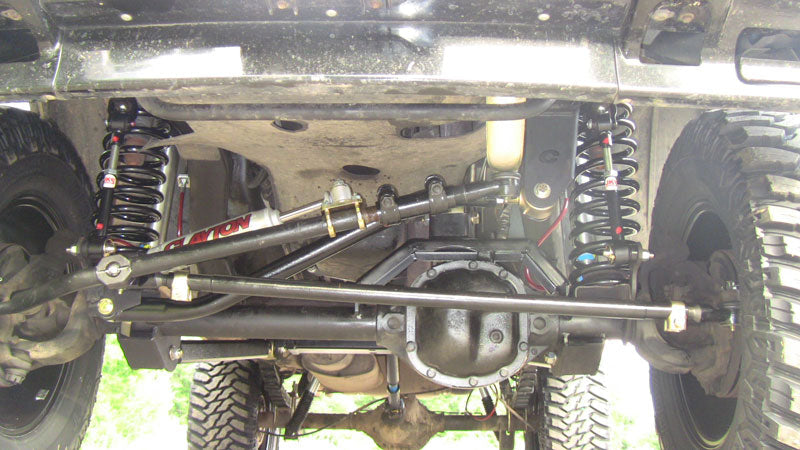

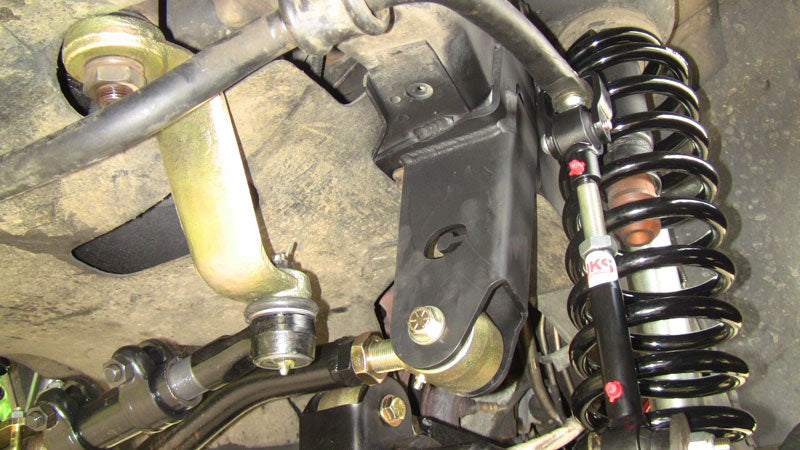

Another advantage is our HD trackbar and double sheer drop bracket. The trackbar bracket is laser cut, CNC bent, with a large 2.5-inch forged Johnny Joint in double sheer, allowing for maximum flex.

The trackbar uses a HD bushing which uses a grade 8, 9/16s bolt at the axle end. When using the Pro-Series lower arms, we highly recommend the heavy-duty lower control arms, which have a skid plate to protect the lower joint.

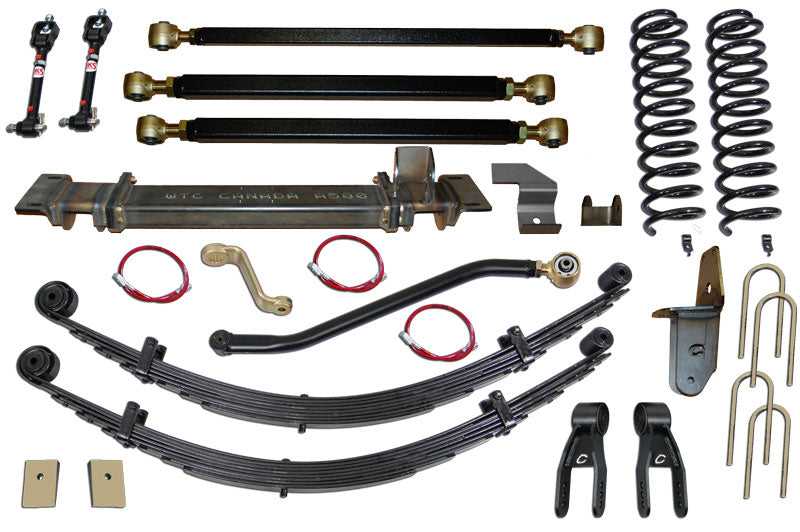

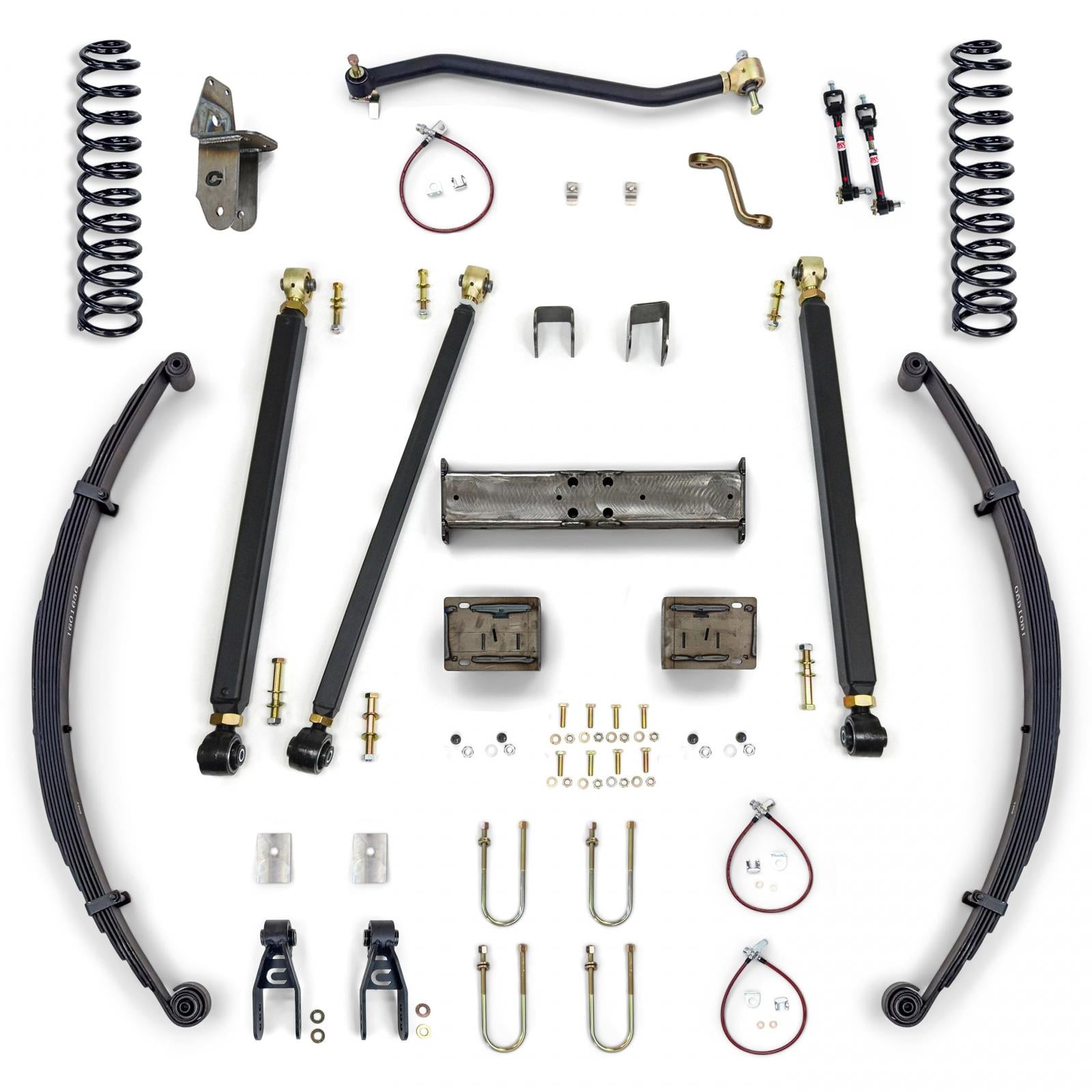

Product Features:

  • 3 Link Front W/ Pro Series Arms
  • Forged Johnny Joints
  • Dual Durometer GIIRO Joints
  • 3 Piece Cross Member
  • HD Premium Adjustable Trackbar
  • Trackbar Drop Bracket
  • Drop Pitman Arm
  • Stainless Steel DOT Approved Brake lines
  • Front Swaybar Disconnects

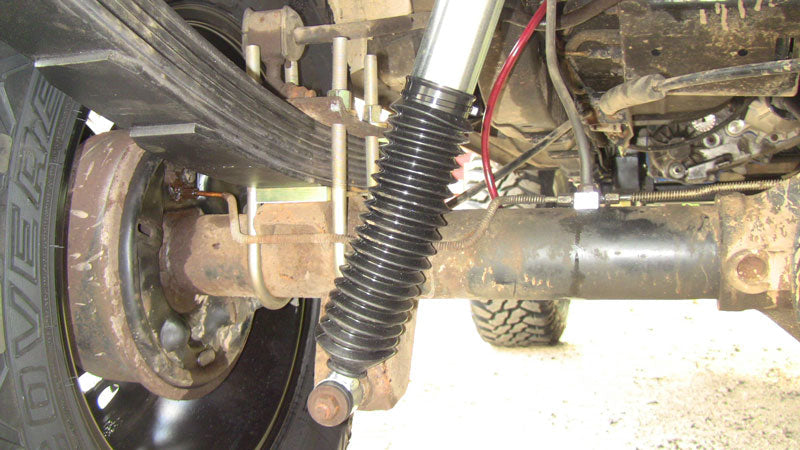

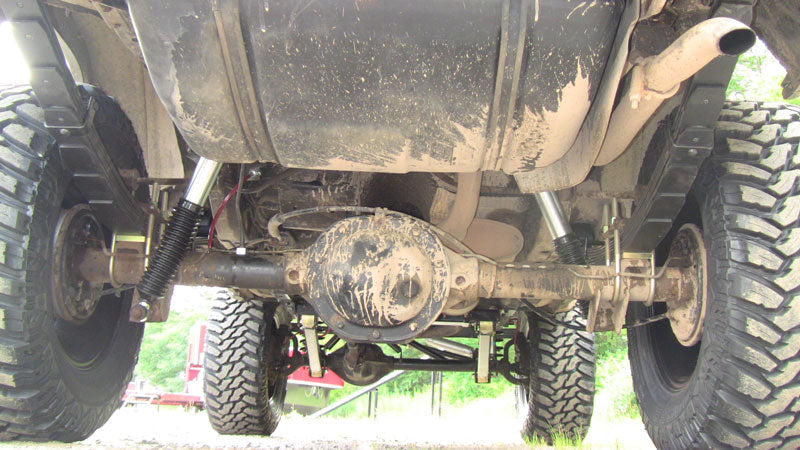

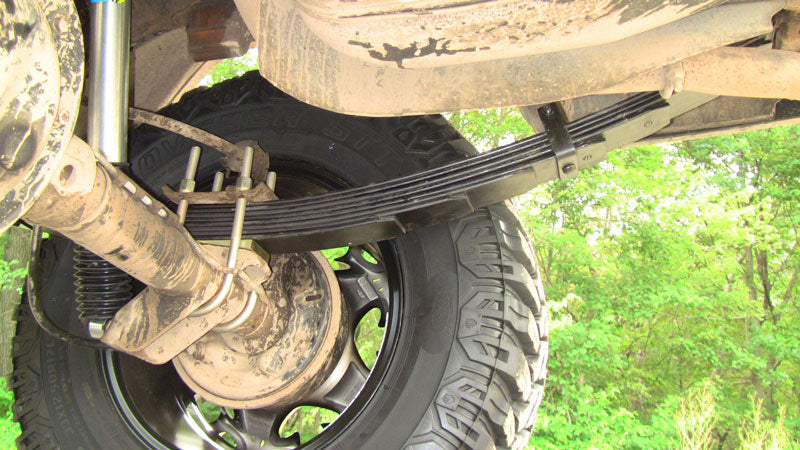

  • Military Wrap Leaf Springs
  • Lifetime Warranty
  • Made in the USA!

Note:

  • Shocks are optional and we recommend the Bilstein 5100s.
  • A SYE kit and CV style driveshaft is required.
  • Welding and drilling is required to install this kit.
  • Front axle truss Highly recommended if your stock D30 axle
  • Leaf Springs ship out of a box! Cosmetic damage e.g. surface rust or scratches may result during shipping and items would Not be considered damaged, or eligible for a return/replacement or compensation.
  • Cosmetic damage will Not affect the performance of the actual product, however, If you would like to avoid these minor cosmetic issues please feel Free to email us for a freight quote and we can arrange product shipment on a pallet.


Specifications:

Availability Available


This Part Fits:

Year Make Model Submodel Notes
1984 Jeep Cherokee
1985 Jeep Cherokee
1986 Jeep Cherokee
1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1985 Jeep Cherokee Chief
1986 Jeep Cherokee Chief
1987 Jeep Cherokee Chief
1988 Jeep Cherokee Chief
1985 Jeep Cherokee Laredo
1986 Jeep Cherokee Laredo
1987 Jeep Cherokee Laredo
1988 Jeep Cherokee Laredo
1989 Jeep Cherokee Laredo
1990 Jeep Cherokee Laredo
1991 Jeep Cherokee Laredo
1992 Jeep Cherokee Laredo
1985 Jeep Cherokee Pioneer
1986 Jeep Cherokee Pioneer
1987 Jeep Cherokee Pioneer
1988 Jeep Cherokee Pioneer
1989 Jeep Cherokee Pioneer
1990 Jeep Cherokee Pioneer
1987 Jeep Cherokee Limited
1988 Jeep Cherokee Limited
1989 Jeep Cherokee Limited
1990 Jeep Cherokee Limited
1991 Jeep Cherokee Limited
1992 Jeep Cherokee Limited
1989 Jeep Cherokee Sport
1990 Jeep Cherokee Sport
1991 Jeep Cherokee Sport
1992 Jeep Cherokee Sport
1993 Jeep Cherokee Sport
1994 Jeep Cherokee Sport
1995 Jeep Cherokee Sport
1996 Jeep Cherokee Sport
1997 Jeep Cherokee Sport
1998 Jeep Cherokee Sport
1999 Jeep Cherokee Sport
2000 Jeep Cherokee Sport
2001 Jeep Cherokee Sport
1991 Jeep Cherokee Briarwood
1992 Jeep Cherokee Briarwood
1993 Jeep Cherokee Country
1994 Jeep Cherokee Country
1995 Jeep Cherokee Country
1996 Jeep Cherokee Country
1997 Jeep Cherokee Country
1994 Jeep Cherokee SE
1995 Jeep Cherokee SE
1996 Jeep Cherokee SE
1997 Jeep Cherokee SE
1998 Jeep Cherokee SE
1999 Jeep Cherokee SE
2000 Jeep Cherokee SE
2001 Jeep Cherokee SE
1996 Jeep Cherokee Classic
1998 Jeep Cherokee Classic
1999 Jeep Cherokee Classic
2000 Jeep Cherokee Classic
2001 Jeep Cherokee Classic
1998 Jeep Cherokee Limited
1999 Jeep Cherokee Limited
2000 Jeep Cherokee Limited
2001 Jeep Cherokee Limited
