Jeep Heavy Duty Track Bar Bolt Kit (1984-2006, TJ/LJ/XJ/ZJ)
Death Wobble Cure. Jeep death wobble is often caused by a loose or worn-out track bar and or track bar bushing. Once you get the dreaded death wobble it Only gets worse since many times it eggs out the lower track bar hole and therefore allows the track bar to move back and forth. Our HD track bar bolt kit with HD bushing may be your answer.

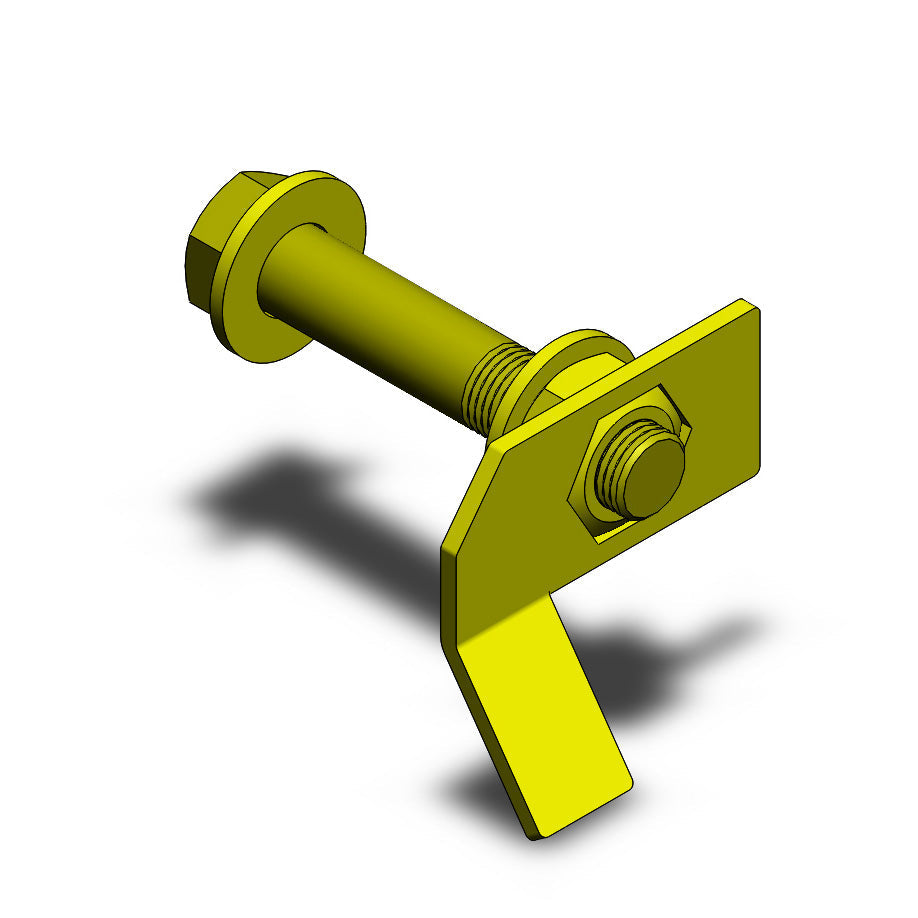

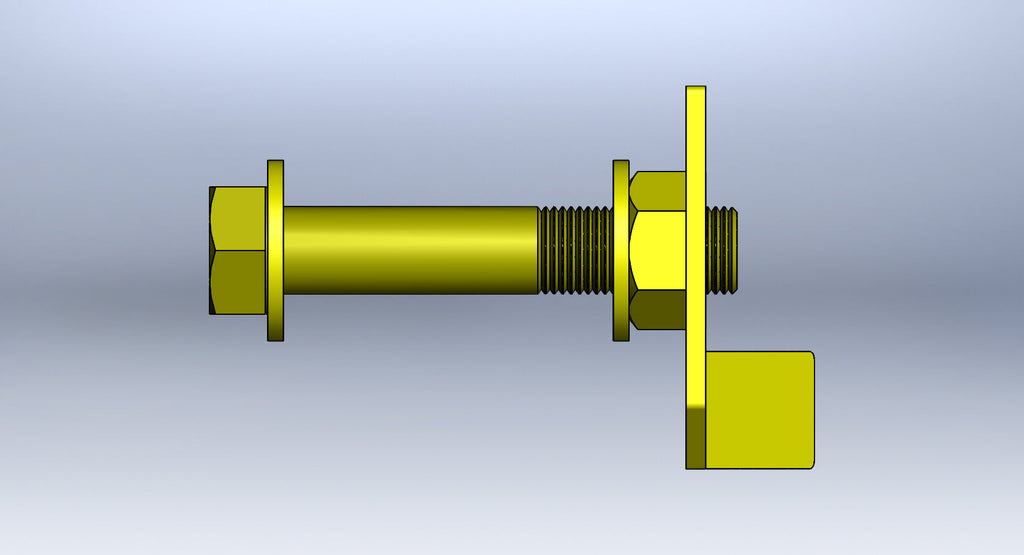

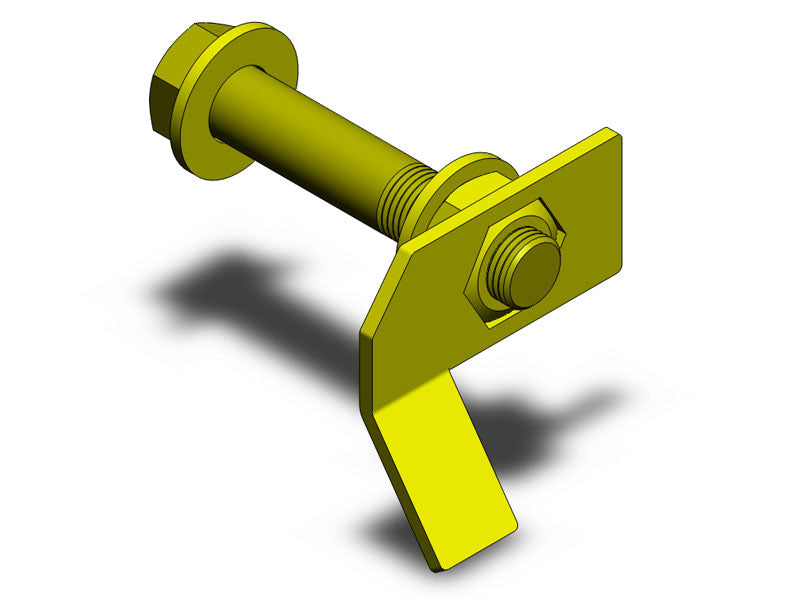

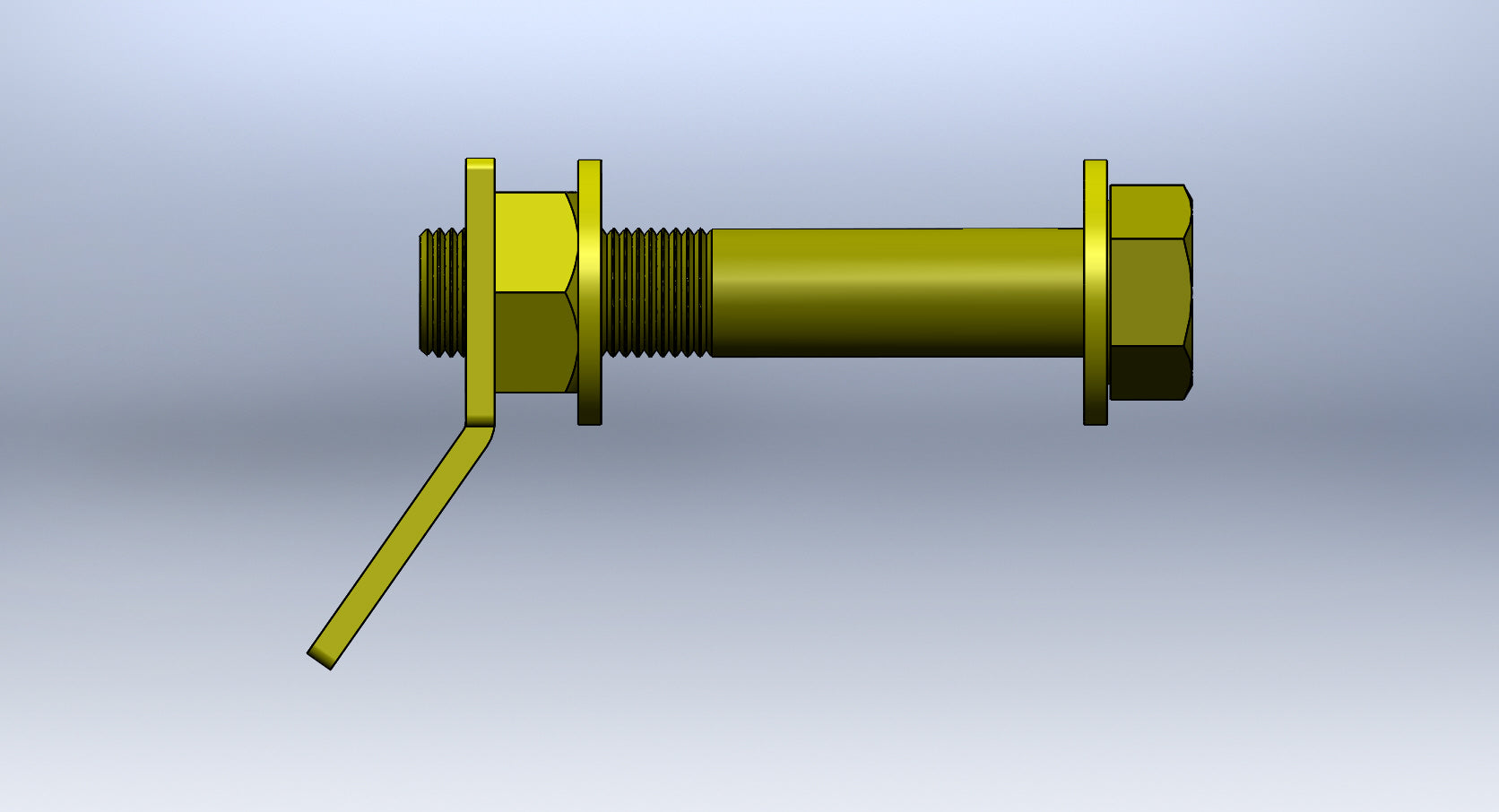

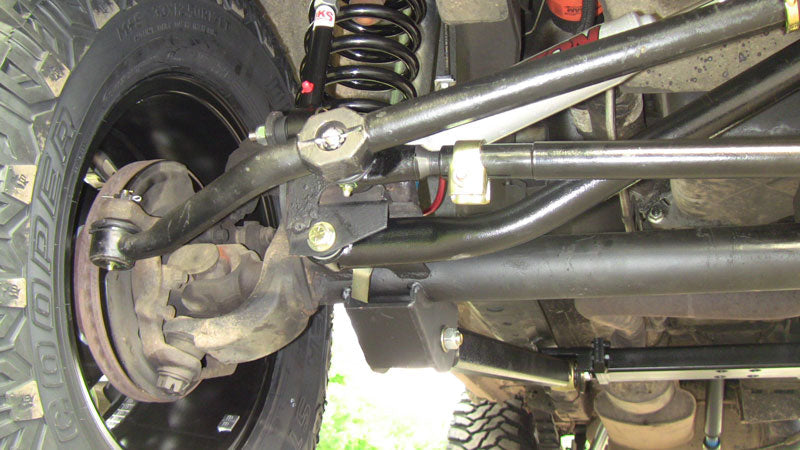

This is a new flange bolt kit that is now used on all of our HD track bar kits. Our HD track bars use larger bushings which have a 9/16 Inch through hole shown below. This will require you to drill out the OEM axle sidetrack bar location.

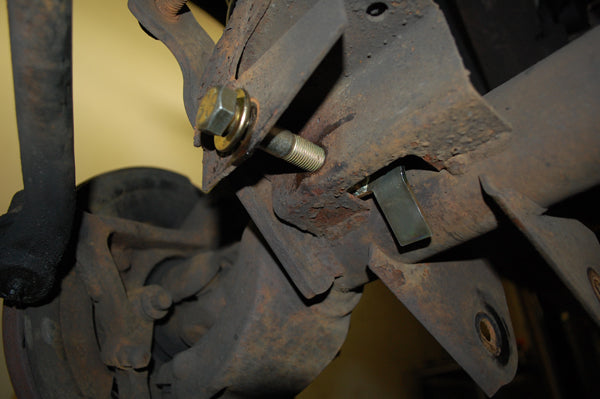

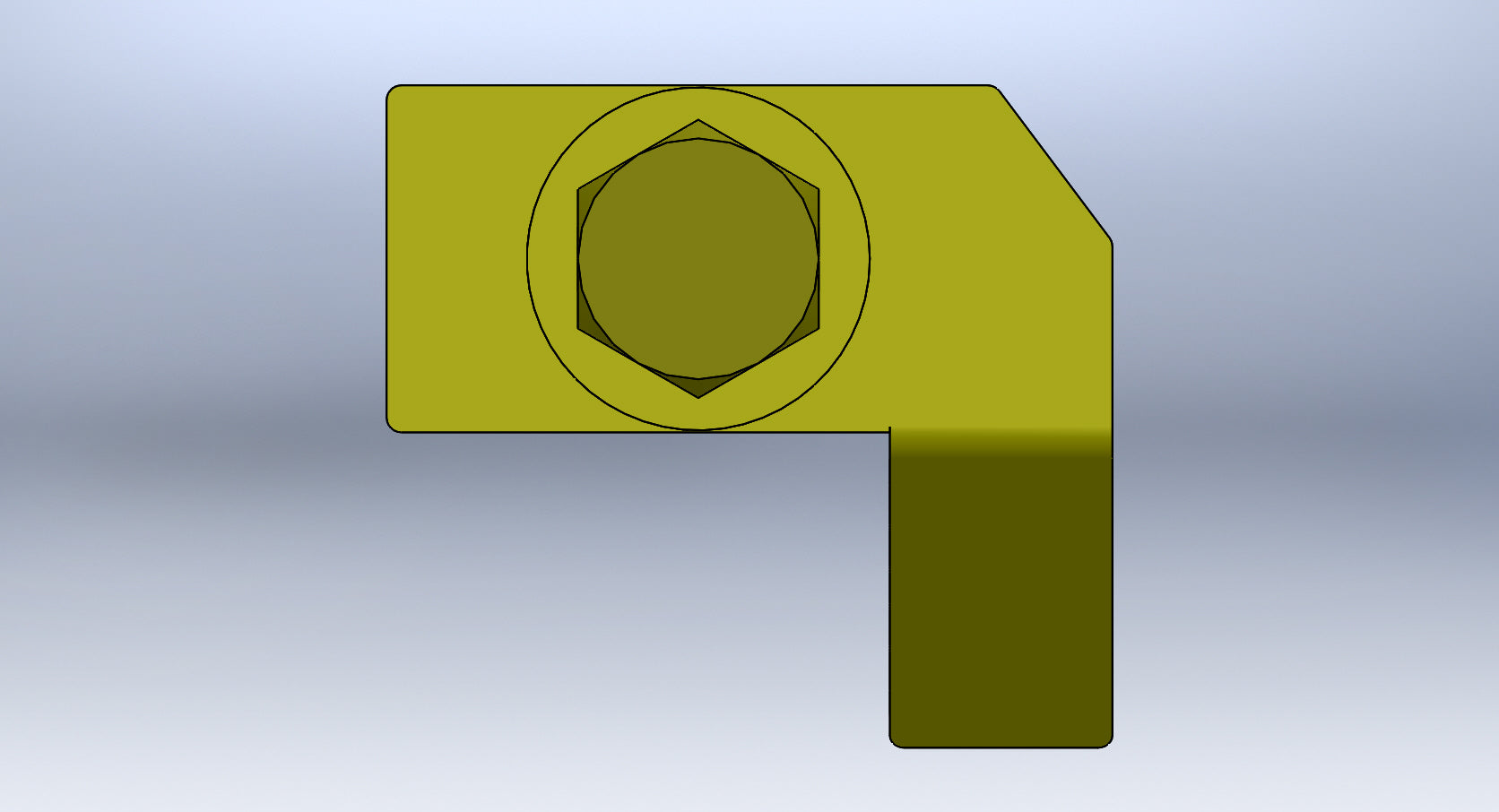

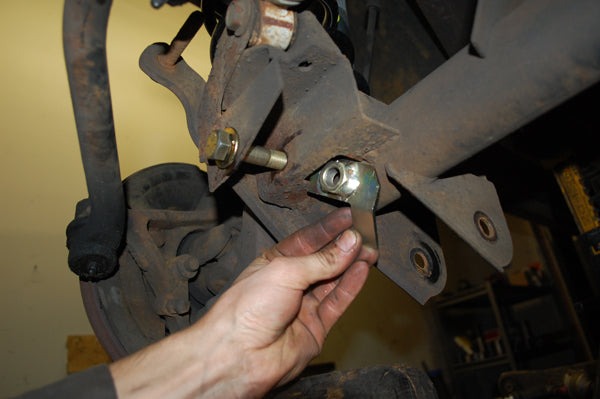

Now the OEM nut and flange do Not work, and this is where this bracket works very nicely. Laser cut from 1/8, CNC bent, all metal lock nut welded, and gold zinc plated. Comes with 2 washers and a 9/16 Inch grade 8 fine thread bolt.
Already have a Clayton Off Road track bar? No problem. Buy this flange tab, and this new bushing, press out the old one, press in the new one, and you have an HD track bar. Fits many aftermarket track bars as well. Or you can buy this kit and our track bar bushing and weld on a new housing.

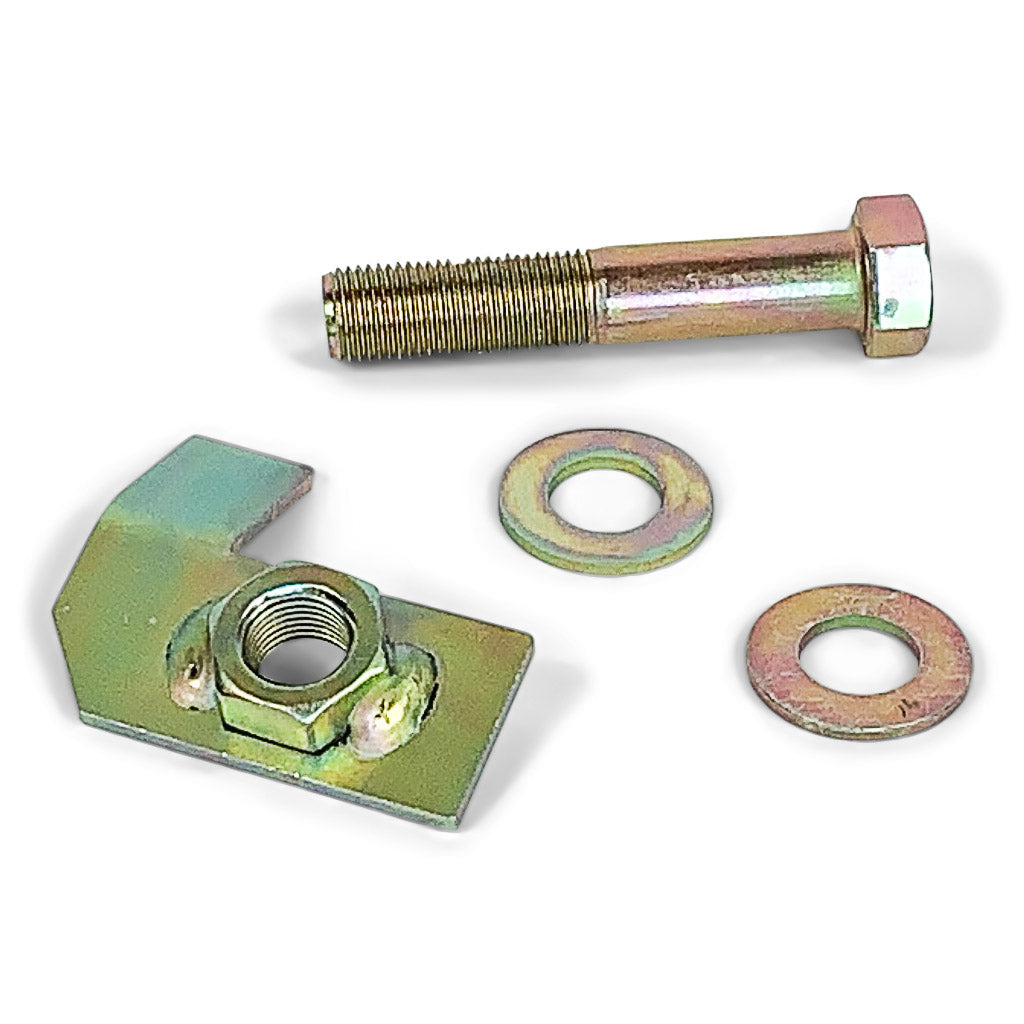

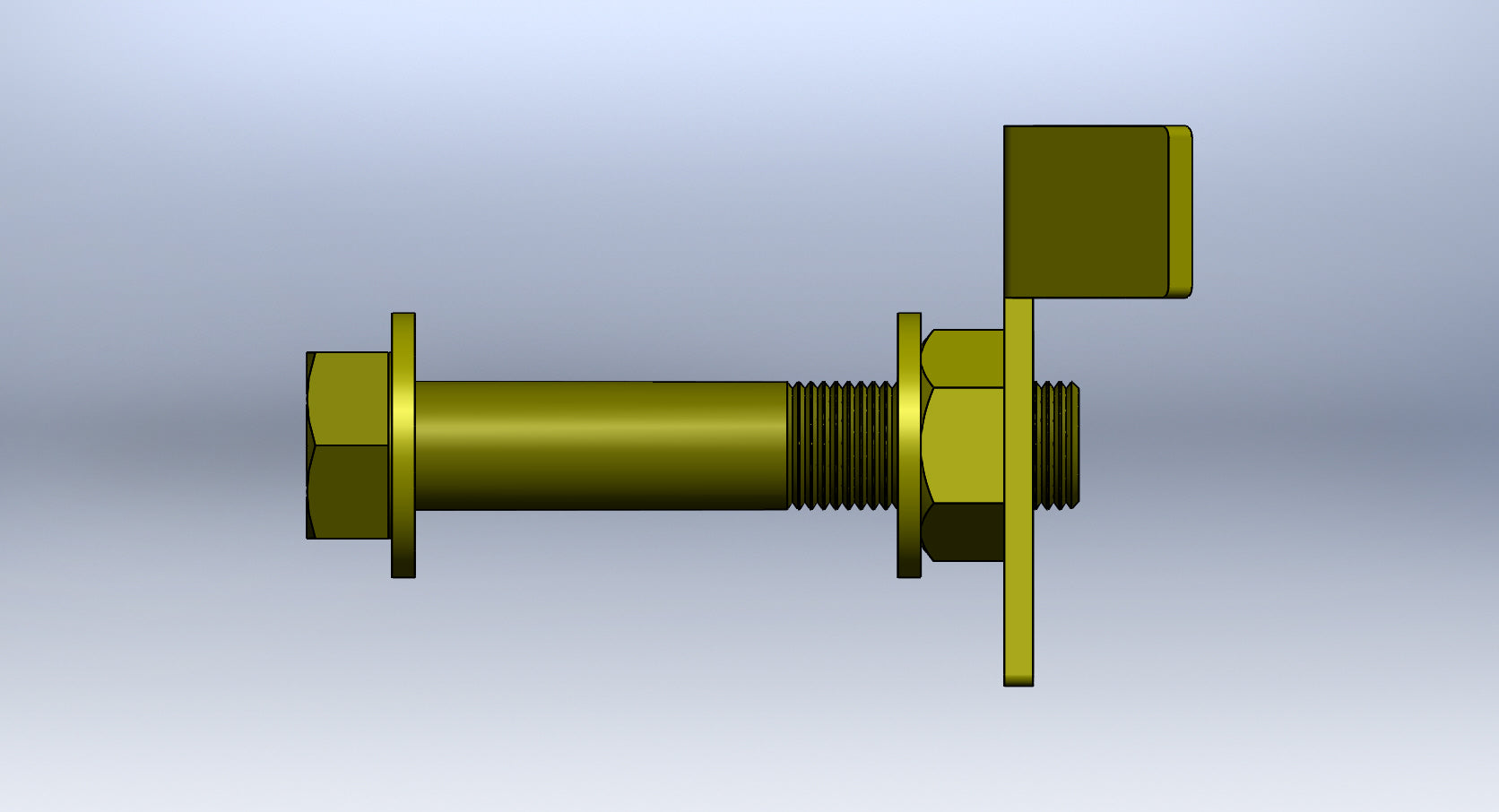

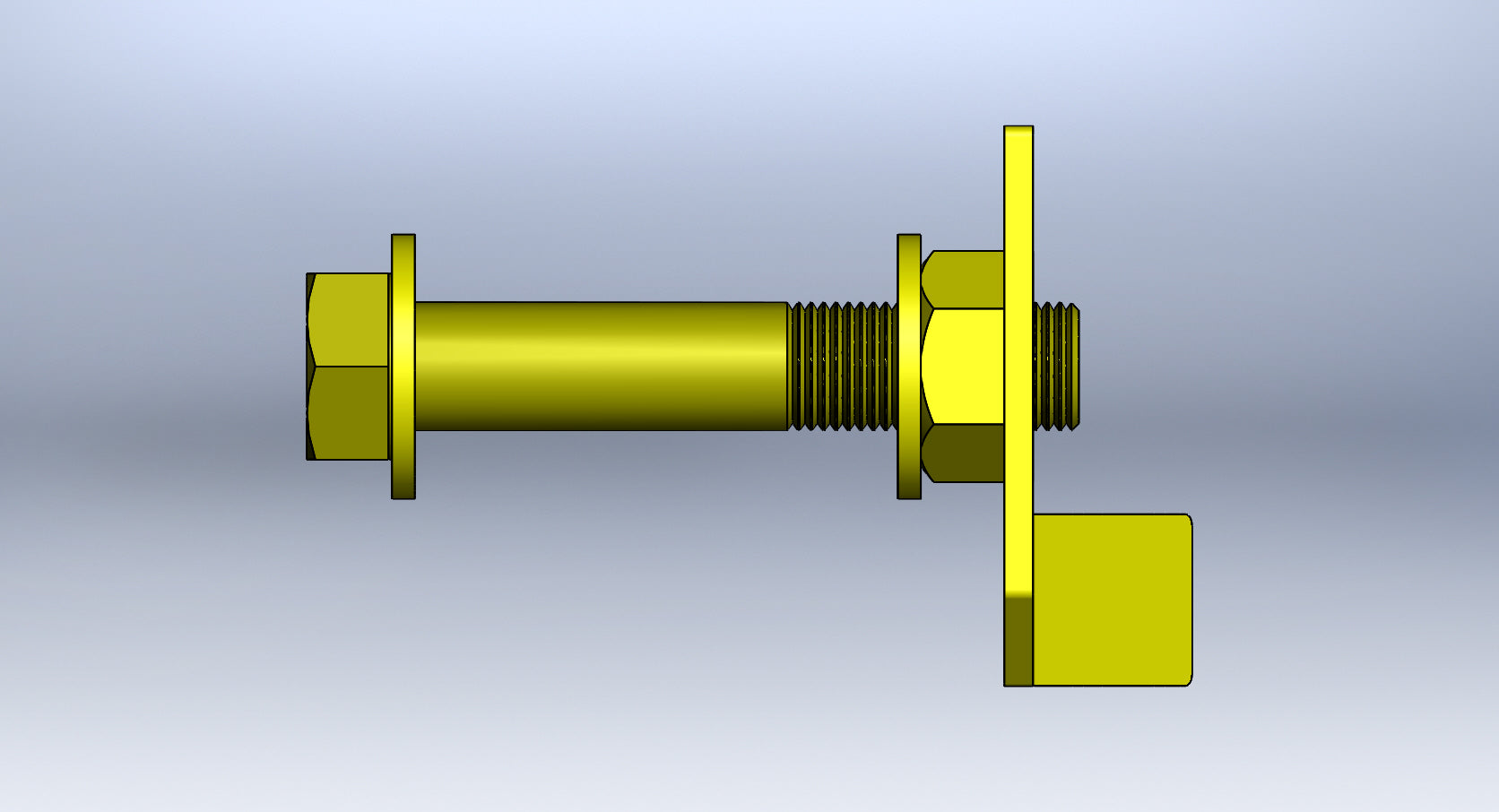

9/16-18 x 3 Inch Grade 8 bolt, 2 washers and then all metal lock nut come welded to the 1/8 flange. Approximate torque spec = 146 ft-lbs
Note: This kit uses a Top Lock - it will Not screw on by hand. Start by hand, then use torque wrench.
Uniquely shaped threads provide a vibration resistant friction fit, so the nut stays put. These all metal locknuts withstand higher temperatures than nylon insert locknuts. Top thread section is deformed to create two or three locking zones; they start easily by hand, then must be wrenched into final position.
Grade C equivalent to Grade 8. IFI-100/107 Grade C. ANSI B1.1 UNC or UNF Class 2B thread requirement. Zinc plating, retards the corrosion rate in a normal atmosphere.
Specifications:
| Availability | Available |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1984 | Jeep | Cherokee | ||
| 1985 | Jeep | Cherokee | ||
| 1986 | Jeep | Cherokee | ||
| 1987 | Jeep | Cherokee | ||
| 1988 | Jeep | Cherokee | ||
| 1989 | Jeep | Cherokee | ||
| 1990 | Jeep | Cherokee | ||
| 1991 | Jeep | Cherokee | ||
| 1992 | Jeep | Cherokee | ||
| 1993 | Jeep | Cherokee | ||
| 1985 | Jeep | Cherokee | Chief | |
| 1986 | Jeep | Cherokee | Chief | |
| 1987 | Jeep | Cherokee | Chief | |
| 1988 | Jeep | Cherokee | Chief | |
| 1985 | Jeep | Cherokee | Pioneer | |
| 1986 | Jeep | Cherokee | Pioneer | |
| 1987 | Jeep | Cherokee | Pioneer | |
| 1988 | Jeep | Cherokee | Pioneer | |
| 1989 | Jeep | Cherokee | Pioneer | |
| 1990 | Jeep | Cherokee | Pioneer | |
| 1985 | Jeep | Cherokee | Laredo | |
| 1986 | Jeep | Cherokee | Laredo | |
| 1987 | Jeep | Cherokee | Laredo | |
| 1988 | Jeep | Cherokee | Laredo | |
| 1989 | Jeep | Cherokee | Laredo | |
| 1990 | Jeep | Cherokee | Laredo | |
| 1991 | Jeep | Cherokee | Laredo | |
| 1992 | Jeep | Cherokee | Laredo | |
| 1987 | Jeep | Cherokee | Limited | |
| 1988 | Jeep | Cherokee | Limited | |
| 1989 | Jeep | Cherokee | Limited | |
| 1990 | Jeep | Cherokee | Limited | |
| 1991 | Jeep | Cherokee | Limited | |
| 1992 | Jeep | Cherokee | Limited | |
| 1989 | Jeep | Cherokee | Sport | |
| 1990 | Jeep | Cherokee | Sport | |
| 1991 | Jeep | Cherokee | Sport | |
| 1992 | Jeep | Cherokee | Sport | |
| 1993 | Jeep | Cherokee | Sport | |
| 1994 | Jeep | Cherokee | Sport | |
| 1995 | Jeep | Cherokee | Sport | |
| 1996 | Jeep | Cherokee | Sport | |
| 1997 | Jeep | Cherokee | Sport | |
| 1998 | Jeep | Cherokee | Sport | |
| 1999 | Jeep | Cherokee | Sport | |
| 2000 | Jeep | Cherokee | Sport | |
| 2001 | Jeep | Cherokee | Sport | |
| 1991 | Jeep | Cherokee | Briarwood | |
| 1992 | Jeep | Cherokee | Briarwood | |
| 1993 | Jeep | Grand Cherokee | Laredo | |
| 1994 | Jeep | Grand Cherokee | Laredo | |
| 1995 | Jeep | Grand Cherokee | Laredo | |
| 1996 | Jeep | Grand Cherokee | Laredo | |
| 1997 | Jeep | Grand Cherokee | Laredo | |
| 1998 | Jeep | Grand Cherokee | Laredo | |
| 1993 | Jeep | Grand Cherokee | ||
| 1993 | Jeep | Cherokee | Country | |
| 1994 | Jeep | Cherokee | Country | |
| 1995 | Jeep | Cherokee | Country | |
| 1996 | Jeep | Cherokee | Country | |
| 1997 | Jeep | Cherokee | Country | |
| 1993 | Jeep | Grand Cherokee | Limited | |
| 1994 | Jeep | Grand Cherokee | Limited | |
| 1995 | Jeep | Grand Cherokee | Limited | |
| 1996 | Jeep | Grand Cherokee | Limited | |
| 1997 | Jeep | Grand Cherokee | Limited | |
| 1998 | Jeep | Grand Cherokee | Limited | |
| 1994 | Jeep | Grand Cherokee | SE | |
| 1995 | Jeep | Grand Cherokee | SE | |
| 1994 | Jeep | Cherokee | SE | |
| 1995 | Jeep | Cherokee | SE | |
| 1996 | Jeep | Cherokee | SE | |
| 1997 | Jeep | Cherokee | SE | |
| 1998 | Jeep | Cherokee | SE | |
| 1999 | Jeep | Cherokee | SE | |
| 2000 | Jeep | Cherokee | SE | |
| 2001 | Jeep | Cherokee | SE | |
| 1995 | Jeep | Grand Cherokee | Orvis | |
| 1996 | Jeep | Cherokee | Classic | |
| 1997 | Jeep | Wrangler | Sport | |
| 1998 | Jeep | Wrangler | Sport | |
| 1999 | Jeep | Wrangler | Sport | |
| 2000 | Jeep | Wrangler | Sport | |
| 2001 | Jeep | Wrangler | Sport | |
| 2002 | Jeep | Wrangler | Sport | |
| 2003 | Jeep | Wrangler | Sport | |
| 2004 | Jeep | Wrangler | Sport | |
| 2005 | Jeep | Wrangler | Sport | |
| 2006 | Jeep | Wrangler | Sport | |
| 1997 | Jeep | Grand Cherokee | TSi | |
| 1998 | Jeep | Grand Cherokee | TSi | |
| 1997 | Jeep | Grand Cherokee | Orvis | |
| 1997 | Jeep | Wrangler | SE | |
| 1998 | Jeep | Wrangler | SE | |
| 1999 | Jeep | Wrangler | SE | |
| 2000 | Jeep | Wrangler | SE | |
| 2001 | Jeep | Wrangler | SE | |
| 2002 | Jeep | Wrangler | SE | |
| 2003 | Jeep | Wrangler | SE | |
| 2004 | Jeep | Wrangler | SE | |
| 2005 | Jeep | Wrangler | SE | |
| 2006 | Jeep | Wrangler | SE | |
| 1997 | Jeep | Wrangler | Sahara | |
| 1998 | Jeep | Wrangler | Sahara | |
| 1999 | Jeep | Wrangler | Sahara | |
| 2000 | Jeep | Wrangler | Sahara | |
| 2001 | Jeep | Wrangler | Sahara | |
| 2002 | Jeep | Wrangler | Sahara | |
| 2003 | Jeep | Wrangler | Sahara | |
| 2004 | Jeep | Wrangler | Sahara | |
| 1998 | Jeep | Grand Cherokee | 5.9 Limited | |
| 1998 | Jeep | Cherokee | Limited | |
| 1999 | Jeep | Cherokee | Limited | |
| 2000 | Jeep | Cherokee | Limited | |
| 2001 | Jeep | Cherokee | Limited | |
| 1998 | Jeep | Cherokee | Classic | |
| 1999 | Jeep | Cherokee | Classic | |
| 2000 | Jeep | Cherokee | Classic | |
| 2001 | Jeep | Cherokee | Classic | |
| 2002 | Jeep | Wrangler | X | |
| 2003 | Jeep | Wrangler | X | |
| 2004 | Jeep | Wrangler | X | |
| 2005 | Jeep | Wrangler | X | |
| 2006 | Jeep | Wrangler | X | |
| 2003 | Jeep | Wrangler | Rubicon | |
| 2004 | Jeep | Wrangler | Rubicon | |
| 2005 | Jeep | Wrangler | Rubicon | |
| 2006 | Jeep | Wrangler | Rubicon | |
| 2004 | Jeep | Wrangler | Unlimited | |
| 2005 | Jeep | Wrangler | Unlimited | |
| 2006 | Jeep | Wrangler | Unlimited | |
| 2005 | Jeep | Wrangler | Unlimited Rubicon | |
| 2006 | Jeep | Wrangler | Unlimited Rubicon | |
| 2006 | Jeep | Wrangler | 65th Anniversary Edition |
