Jeep Spring Over Perch Offset Motobilt - MB4002
Secure Checkout
Shop by Categories
Secure Checkout
The Motobilt Jeep spring over offset perch was designed to work with an axle tube diameter of 2.5 inch. These are commonly used on Jeep Dana 30 front axles in a spring over application. They can be used in other applications also such as a Jeep CJ dana 30. Remember if you use these on a Jeep CJ you will need to run the wider 2.5 inch wide leaf springs.

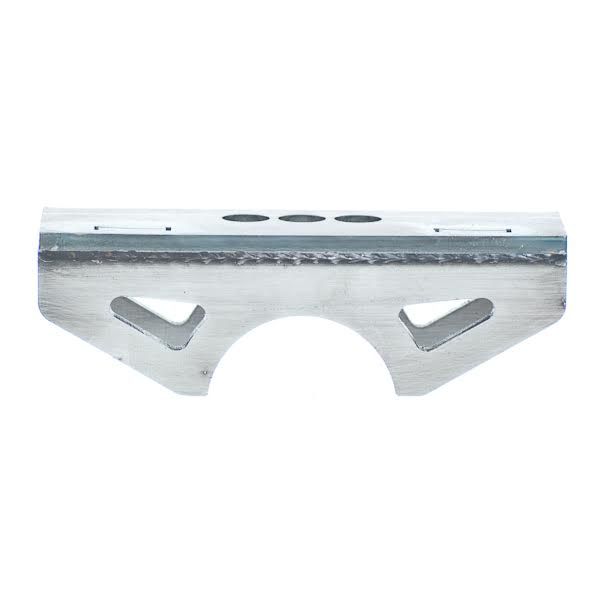

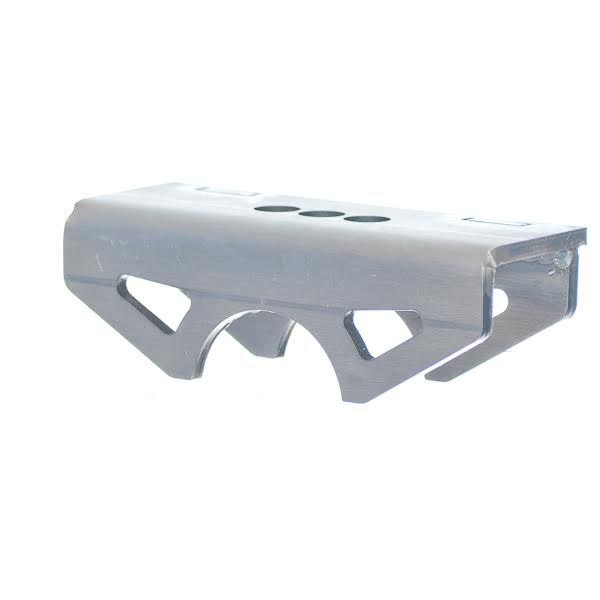

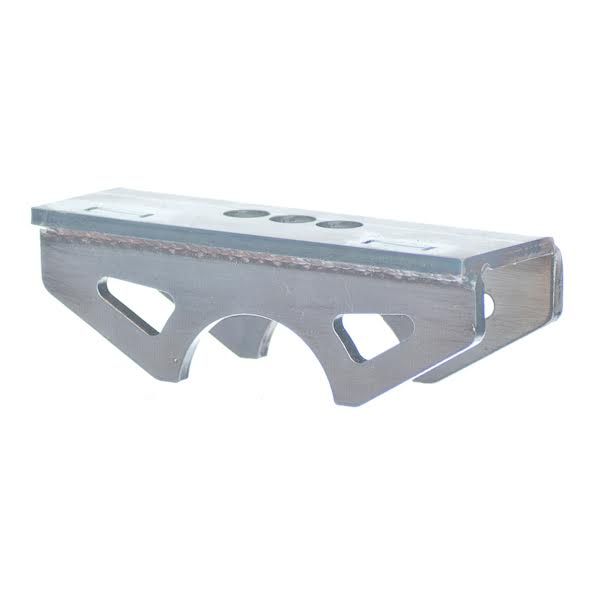

The laser cut steel perch is built to work with 2.5 inch wide springs and has 3 center pin holes for adjustability. The perch is offset on one side so that when mounteD it can mount up close to the differential housing. This allows you to perform a spring over on your Jeep YJ factory front axle. If you attempted to use a standard perch your springs would end up un even and put your suspension in a bind. These perches are made out of 1/4 inch thick steel plate that is laser cut, CNC bent, and then welded for the ultimate in strength.
Features:
Note:
Specifications:
| Country of Origin | USA |
| Sold As | Pair |
| Differential | Dana 30 |
| Availability | Available |
| Location | Front |
| Thickness | 1/4 Inch |
| Universal | No |
| Axle Tube | 2.5 Inch |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1976 | Jeep | CJ7 | ||
| 1977 | Jeep | CJ7 | ||
| 1978 | Jeep | CJ7 | ||
| 1979 | Jeep | CJ7 | ||
| 1980 | Jeep | CJ7 | ||
| 1981 | Jeep | CJ7 | ||
| 1982 | Jeep | CJ7 | ||
| 1983 | Jeep | CJ7 | ||
| 1984 | Jeep | CJ7 | ||
| 1985 | Jeep | CJ7 | ||
| 1986 | Jeep | CJ7 | ||
| 1976 | Jeep | CJ5 | ||
| 1977 | Jeep | CJ5 | ||
| 1978 | Jeep | CJ5 | ||
| 1979 | Jeep | CJ5 | ||
| 1980 | Jeep | CJ5 | ||
| 1981 | Jeep | CJ5 | ||
| 1982 | Jeep | CJ5 | ||
| 1983 | Jeep | CJ5 | ||
| 1976 | Jeep | CJ7 | Renegade | |
| 1977 | Jeep | CJ7 | Renegade | |
| 1978 | Jeep | CJ7 | Renegade | |
| 1979 | Jeep | CJ7 | Renegade | |
| 1980 | Jeep | CJ7 | Renegade | |
| 1981 | Jeep | CJ7 | Renegade | |
| 1982 | Jeep | CJ7 | Renegade | |
| 1983 | Jeep | CJ7 | Renegade | |
| 1984 | Jeep | CJ7 | Renegade | |
| 1985 | Jeep | CJ7 | Renegade | |
| 1986 | Jeep | CJ7 | Renegade | |
| 1976 | Jeep | CJ5 | Renegade | |
| 1977 | Jeep | CJ5 | Renegade | |
| 1978 | Jeep | CJ5 | Renegade | |
| 1979 | Jeep | CJ5 | Renegade | |
| 1980 | Jeep | CJ5 | Renegade | |
| 1981 | Jeep | CJ5 | Renegade | |
| 1982 | Jeep | CJ5 | Renegade | |
| 1983 | Jeep | CJ5 | Renegade | |
| 1977 | Jeep | CJ7 | Golden Eagle | |
| 1978 | Jeep | CJ7 | Golden Eagle | |
| 1979 | Jeep | CJ7 | Golden Eagle | |
| 1977 | Jeep | CJ5 | Golden Eagle | |
| 1978 | Jeep | CJ5 | Golden Eagle | |
| 1979 | Jeep | CJ5 | Golden Eagle | |
| 1980 | Jeep | CJ5 | Golden Eagle | |
| 1980 | Jeep | CJ7 | Golden Hawk | |
| 1980 | Jeep | CJ5 | Laredo | |
| 1981 | Jeep | CJ5 | Laredo | |
| 1982 | Jeep | CJ5 | Laredo | |
| 1983 | Jeep | CJ5 | Laredo | |
| 1980 | Jeep | CJ7 | Laredo | |
| 1981 | Jeep | CJ7 | Laredo | |
| 1982 | Jeep | CJ7 | Laredo | |
| 1983 | Jeep | CJ7 | Laredo | |
| 1982 | Jeep | CJ7 | Limited | |
| 1983 | Jeep | CJ7 | Limited | |
| 1982 | Jeep | CJ5 | Limited | |
| 1983 | Jeep | CJ5 | Limited | |
| 1985 | Jeep | CJ7 | Laredo | |
| 1986 | Jeep | CJ7 | Laredo |
