Jeep Wrangler JL and Gladiator JT (2018-2022) HEIGH10 10" Touchscreen Radio Plug-and-Play Replacement Kit

RB10JW18B
Multimedia
$1,599.00

customers are viewing this product
Jeep Wrangler JL and Gladiator JT (2018-2022) HEIGH10 10" Touchscreen Radio Plug-and-Play Replacement Kit
Overview

Description

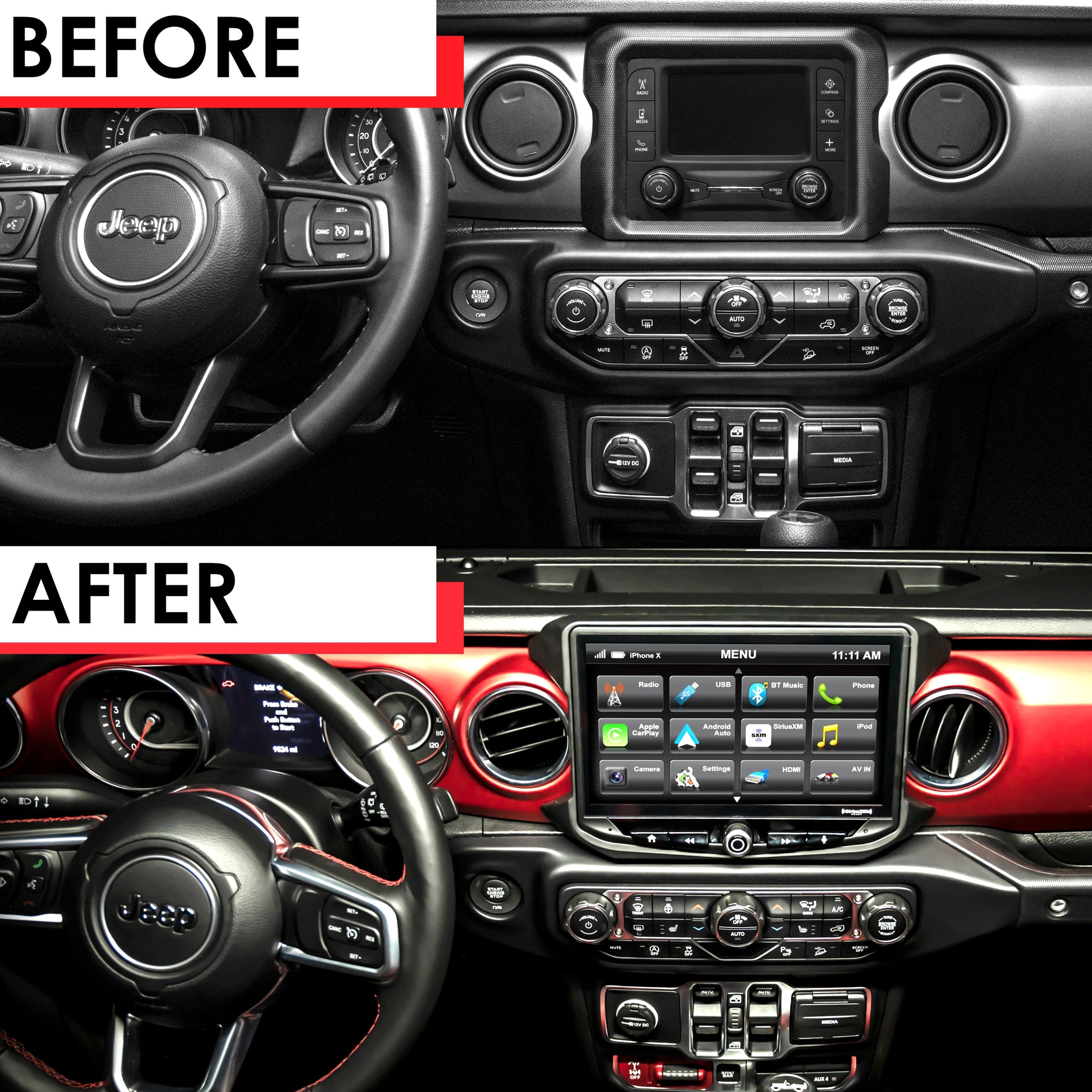

Upgrade your Jeep's radio with a 10-inch infotainment system. Retain all OEM features, add new off-road vehicle gauges, and interact with on-screen climate controls, vehicle settings, and more. All in one easy to install, plug-and-play package.

  • Not compatible in Wrangler 4XE Hybrid models

Features

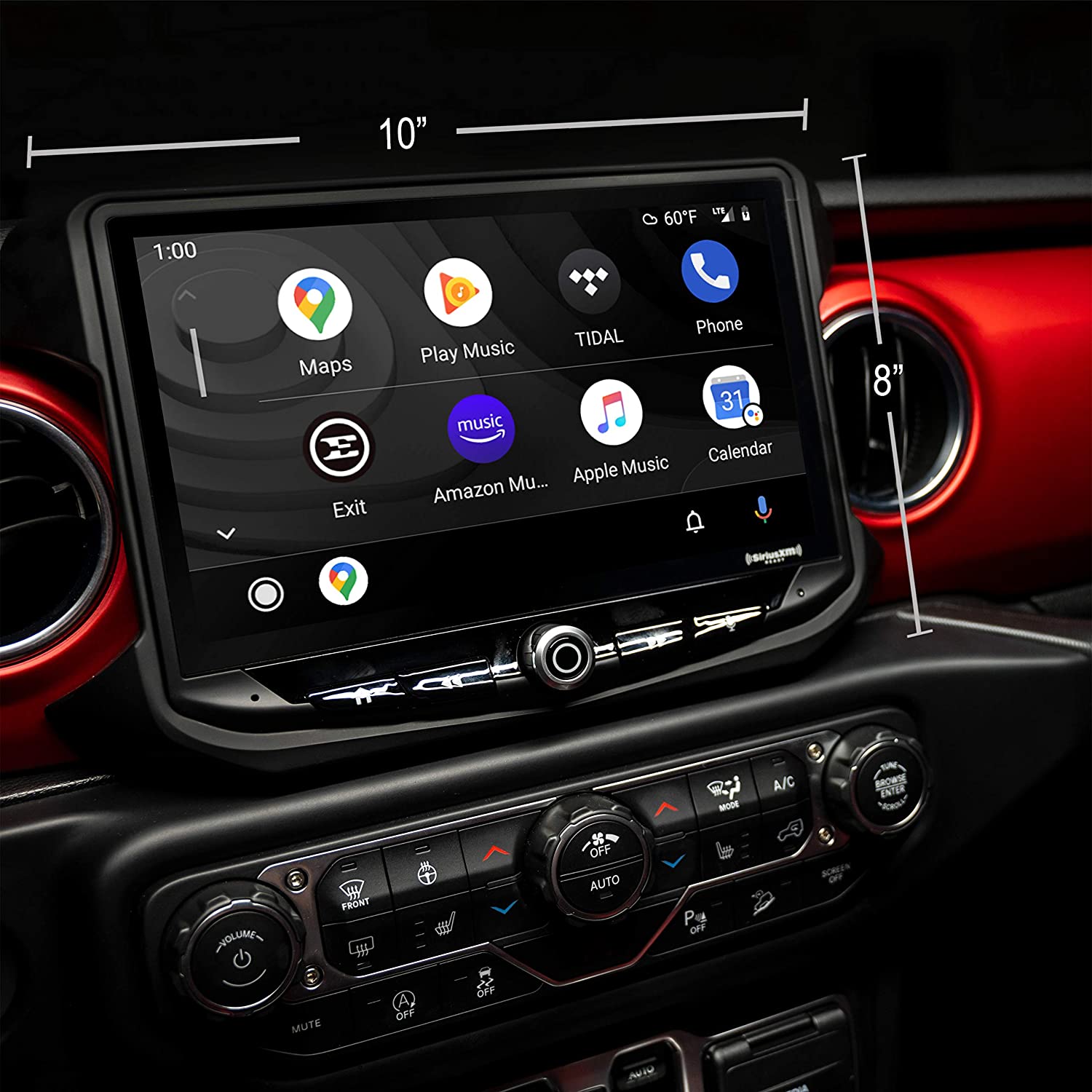

10-Inch Touchscreen
Add a full visual experience to your Wrangler or Gladiator with 16.7 million colors. Customize the illumination & background, pinch & zoom, & anti-glare.

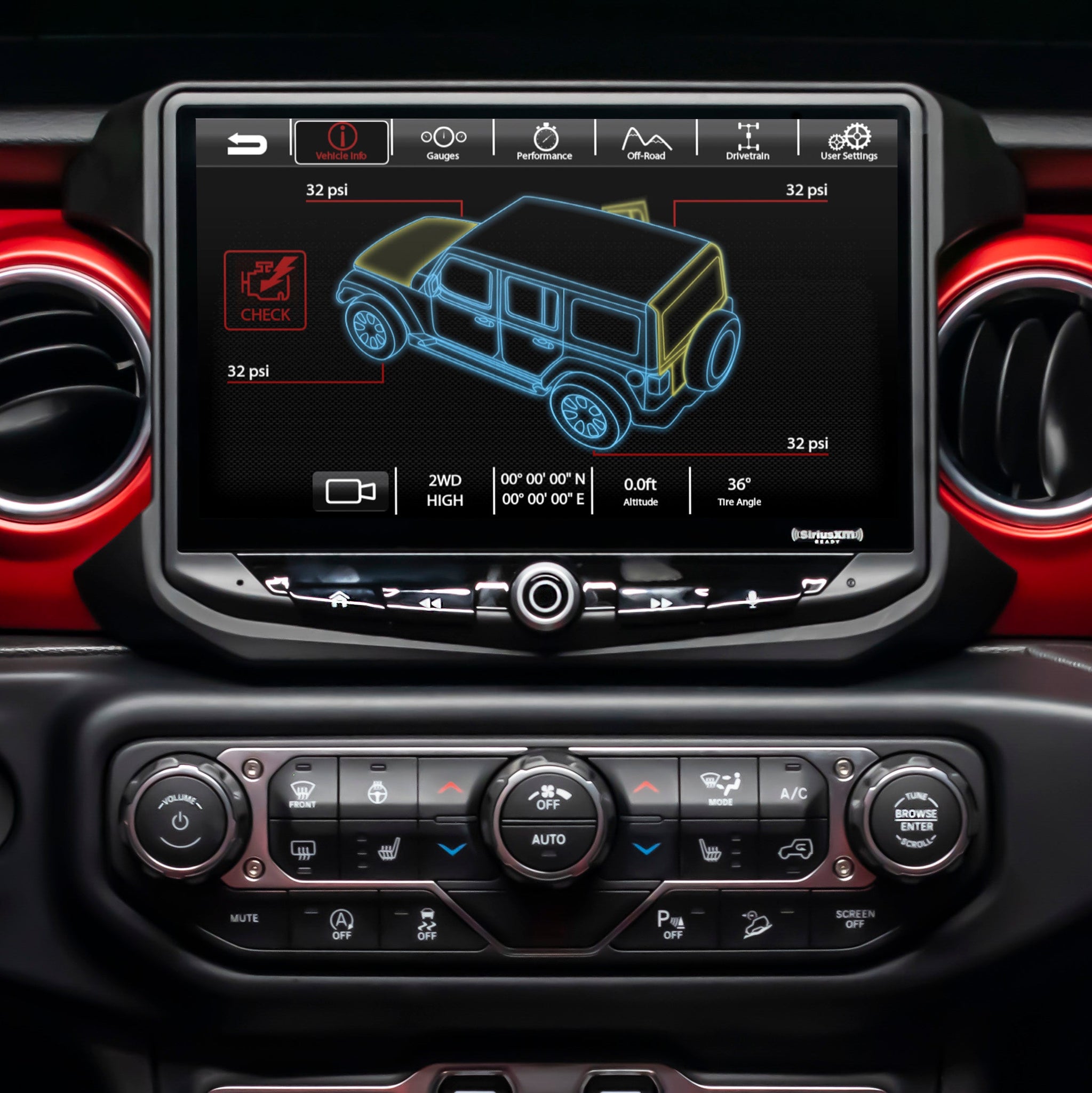

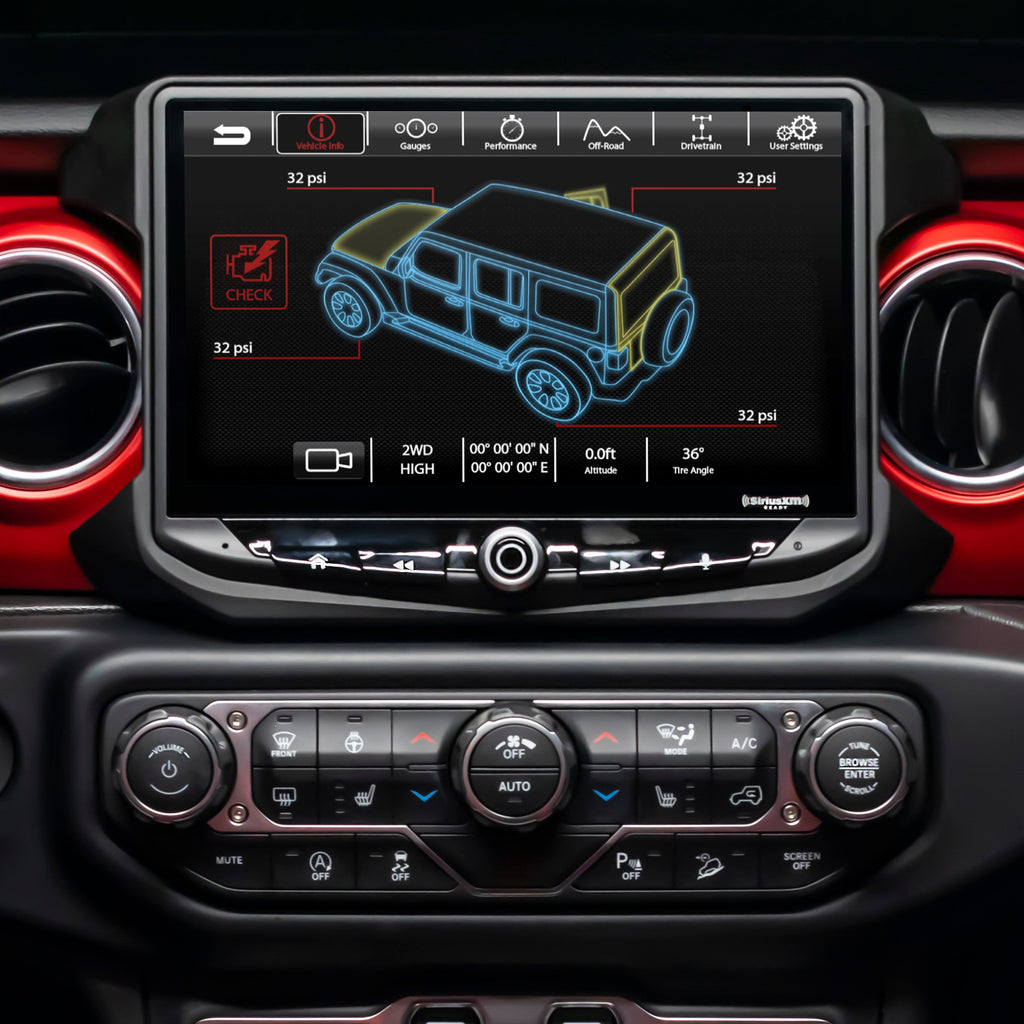

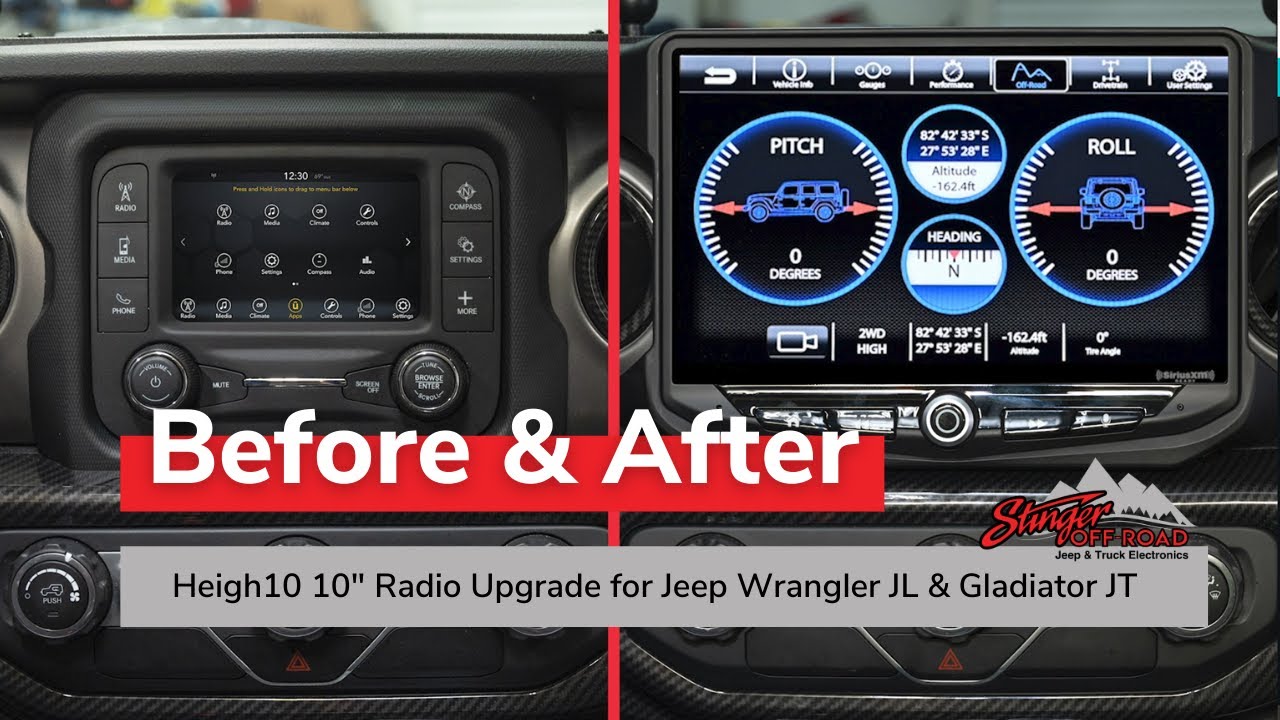

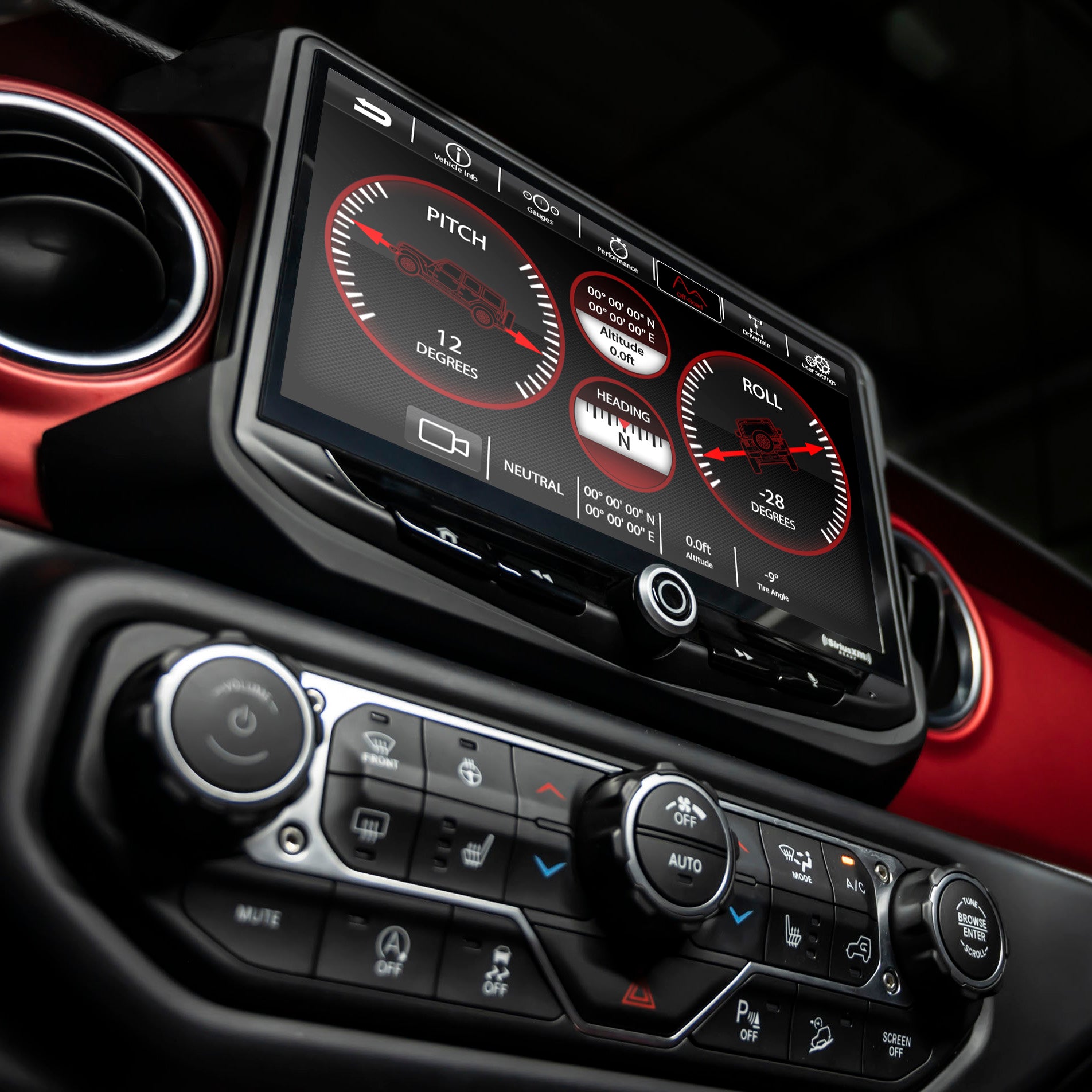

On-Screen Vehicle Information & Gauges
Jeep-specific screens and apps with many user customizations. All enhanced with off-road data including transfer case, current position (latitude/longitude), altitude, steering angle, and more.

Retain OEM Features
Retains features you love in your Jeep.

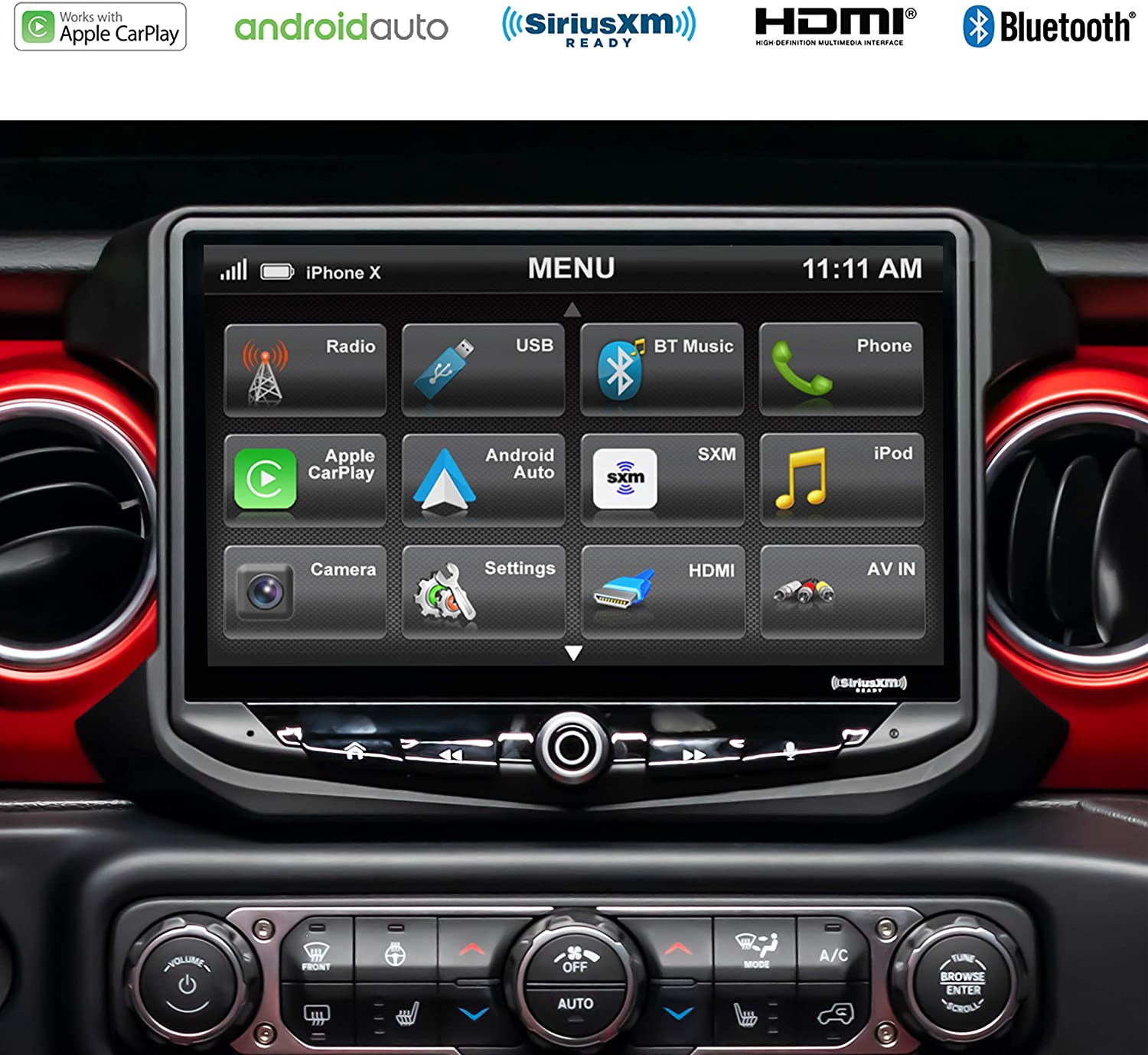

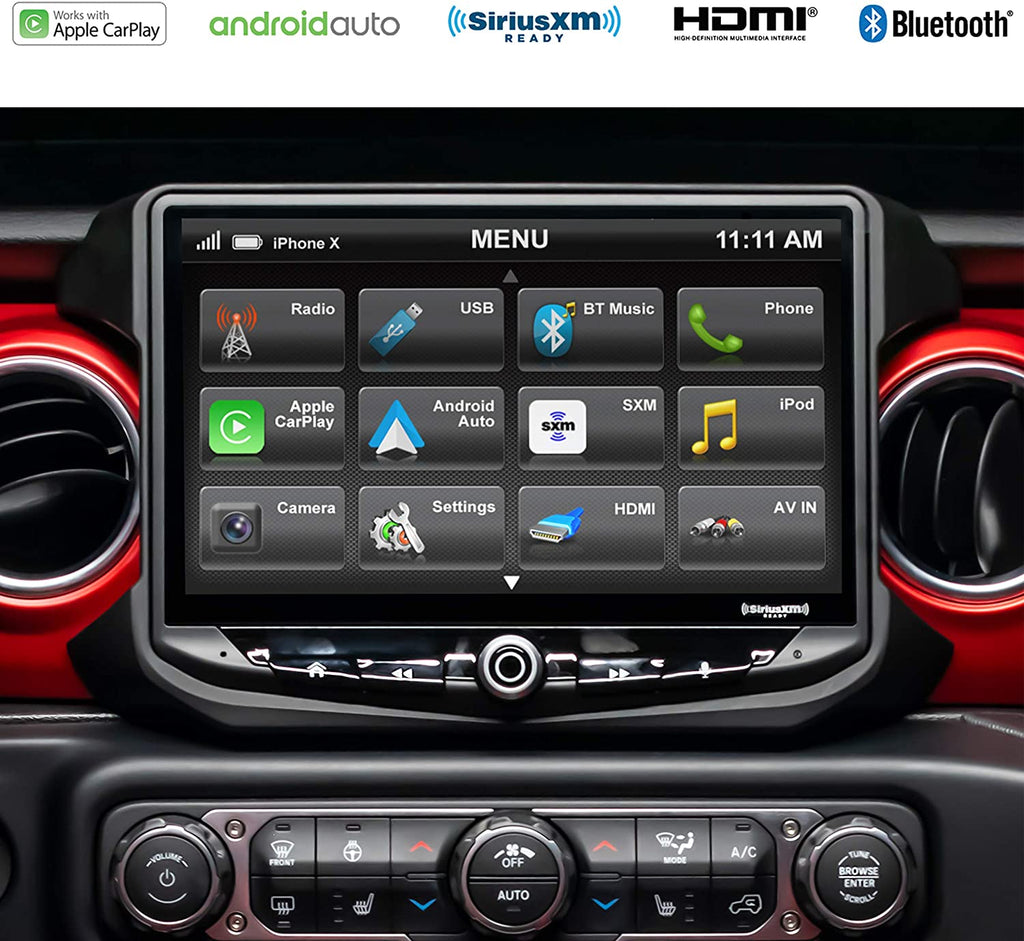

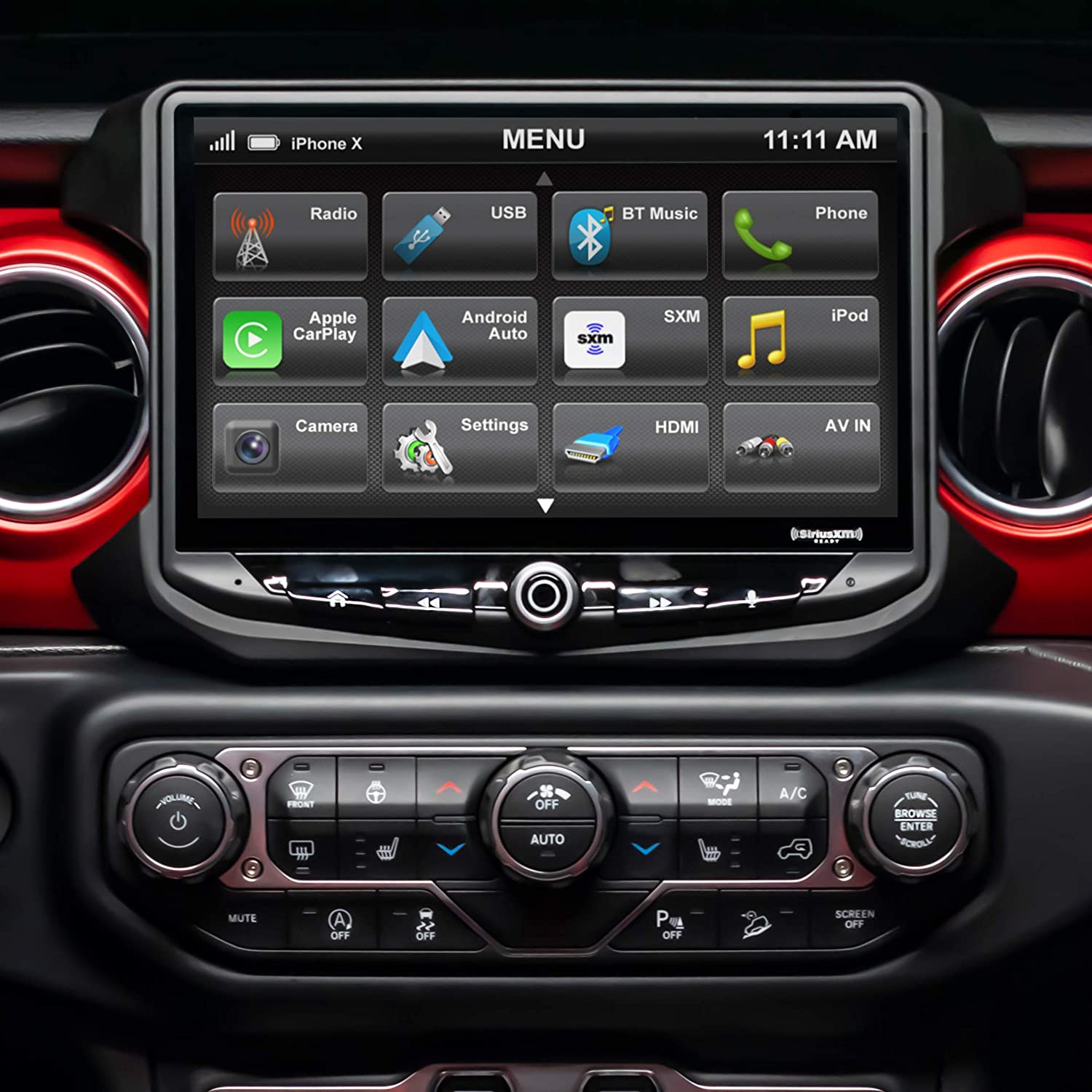

Music, Video, & More

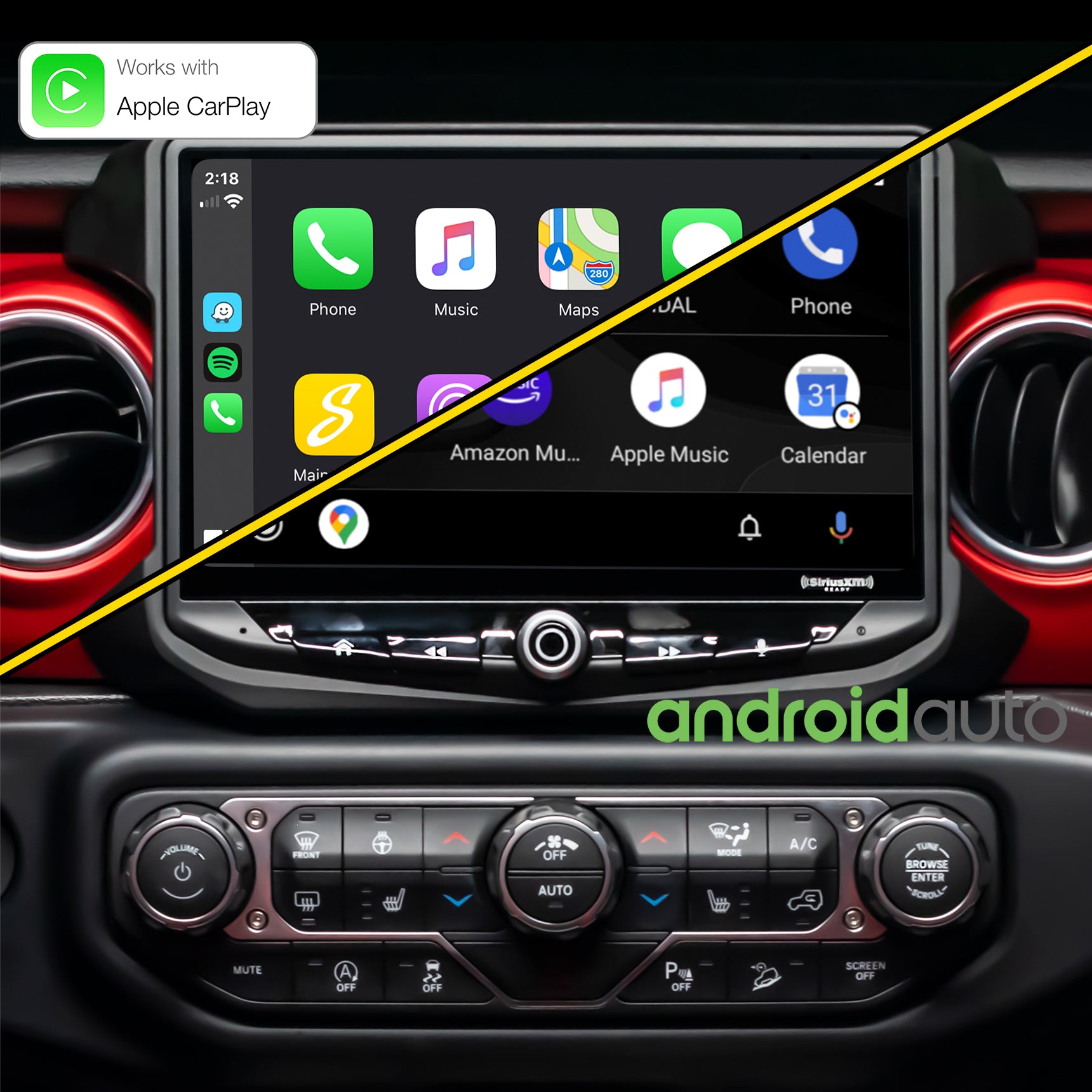

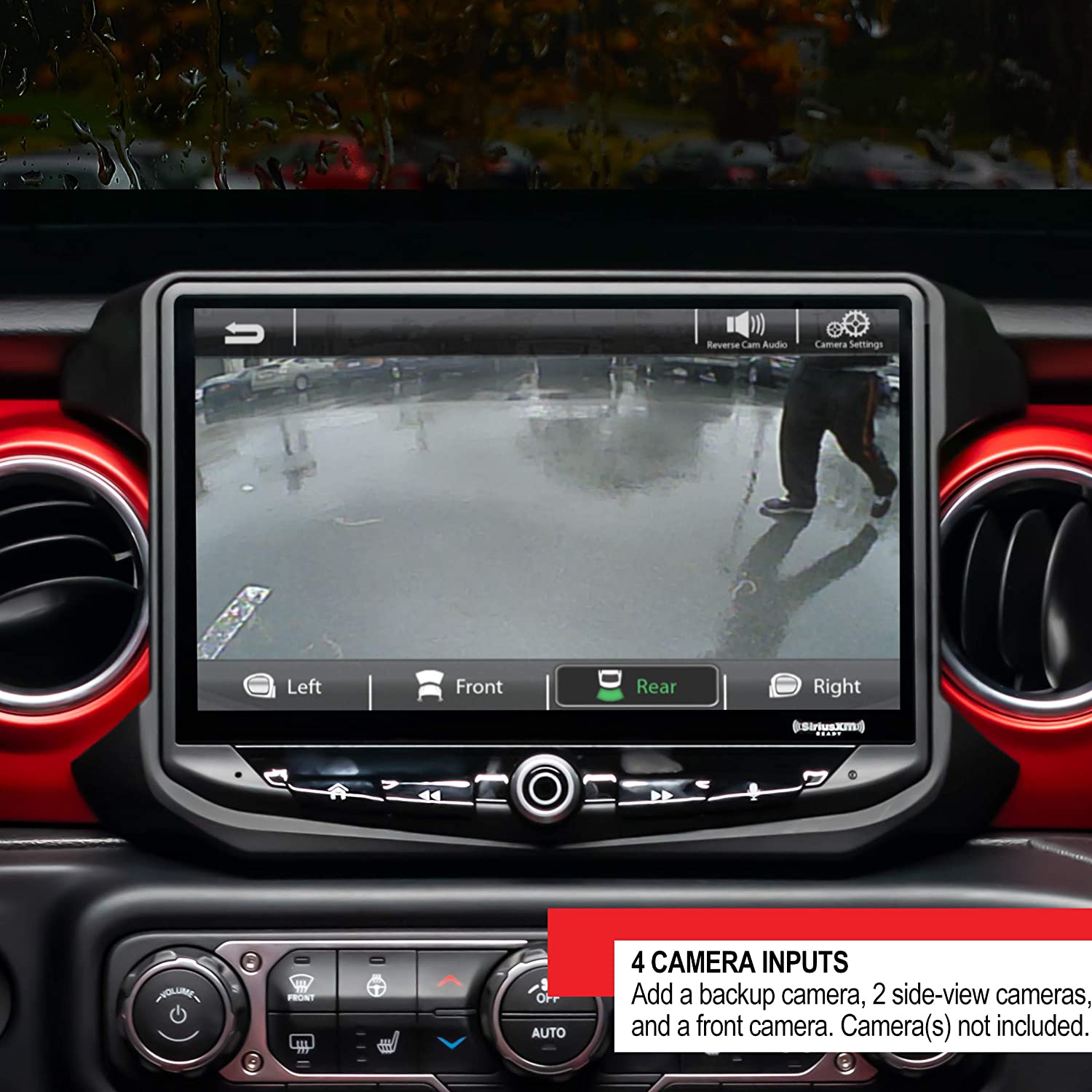

Bluetooth, Android Auto, Apple CarPlay, SiriusXM-ready, HDMI, and 4 camera inputs.

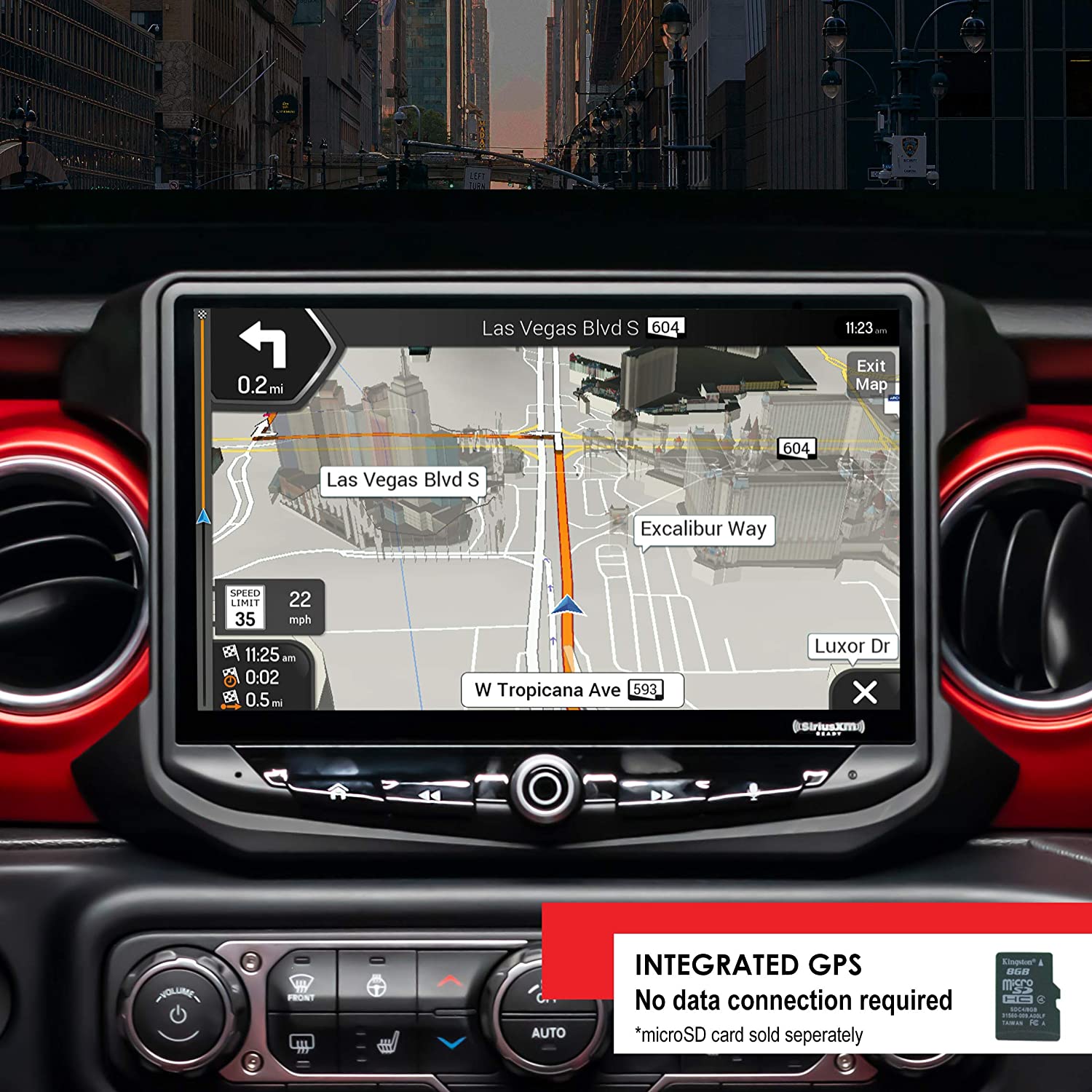

GPS Navigation
An integrated navigation system operates without data connection; GPS microSD card from iGo sold separately.

We're Here To Help
Installation guide with video and pictures included.

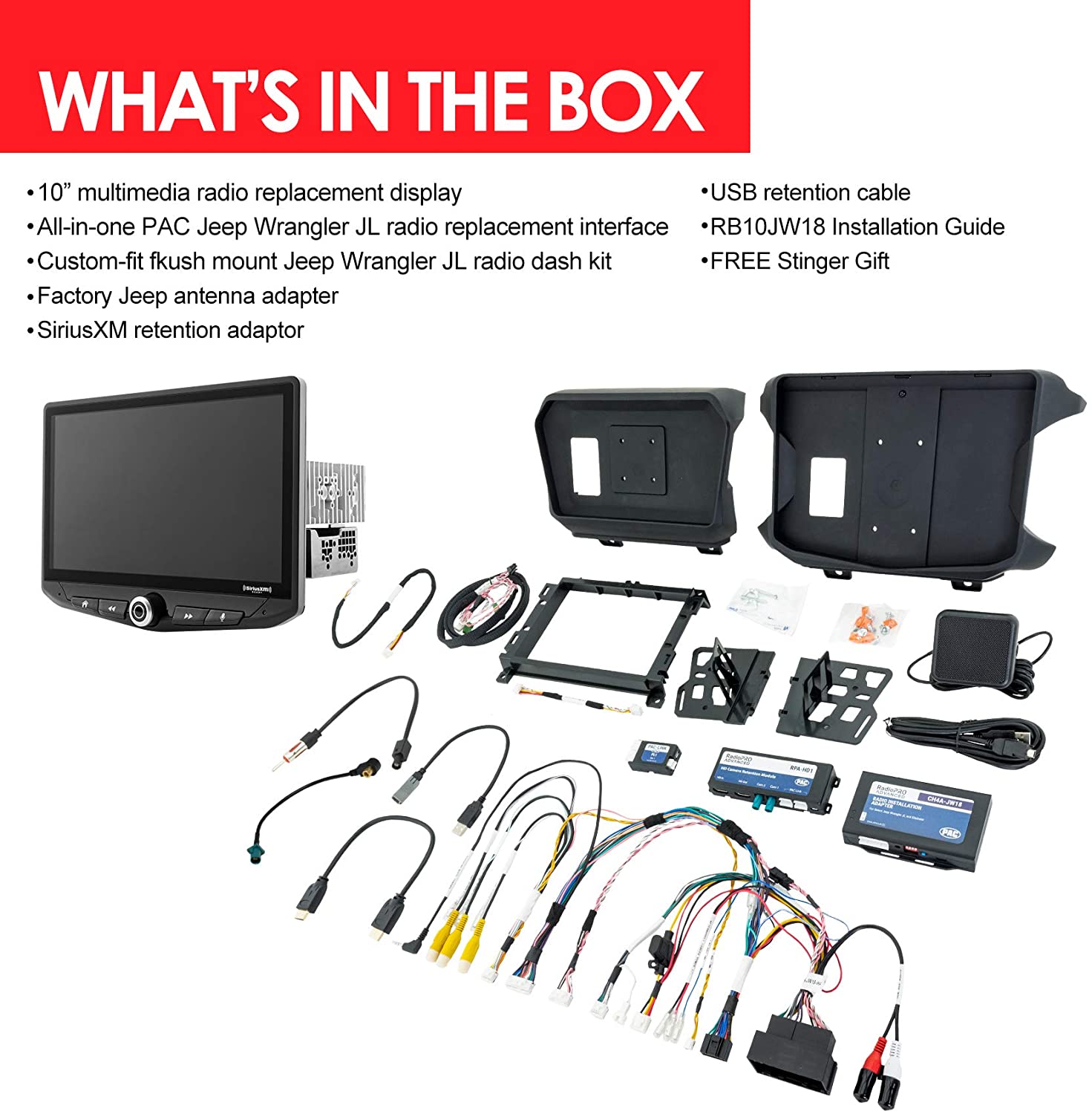

What's In The Box

  • Stunning 10-inch touchscreen display/infotainment system
  • Factory matched radio mounting dash kit
  • Complete vehicle integration module
  • Link Adapter
  • High-definition factory camera retention module
  • Vehicle & radio specific plug-n-play harnessing
  • A satellite antenna adapter (allows you to retain factory-installed SiriusXM antenna, tuner sold separately SXV300V1)
  • AM/FM antenna adapter
  • USB retention cables
  • Chime Speaker
  • Manual
Specifications

GENERAL

  • Recording Resolution: 1024 x 600

  • Screen Size: 10 inches

  • Model Number: RB10JW18B

  • UPC: 609098834353

  • Manufacturer's Warranty - Parts: 1 year

  • Operating Voltage: 9.0VDC to 18VDC

  • Grounding system; Negative Ground

  • Max current consumption: 10A fused

DIMENSIONS

  • Radio Module: 178 mm x100 mm x 116 mm (W x H x D)

  • Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)

DISPLAY

  • 10-inch Diagonal

  • 16:9 aspect ratio

  • 1024 x 600

  • Pixels: 1,843,200

  • Active area 222.72 (W) x 125.28 (H) mm

  • Operating Temperature (C) -20° to 70°

AUDIO

  • Load impedance: 4Ω nominal / 2Ω allowable

  • Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V

  • Audio output level (max): 4.0V preout

  • EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz

  • Gain: ±12dB (2dB/step)

  • HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

  • Slope: 6dB, 12dB, 18dB

  • Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

  • Slope: 6dB, 12dB, 18dB

  • Gain: -14dB to 7dB (1dB/step)

  • Phase: 0 or 180

  • Speaker level: ±9dB (1dB/step)

  • Time Alignment: 0 to 133 step (inch/ms)

FM TUNER

  • 87.9MHz to 107.9MHz

  • Usable sensitive 0dB (mono S/N: 30dB)

  • SNR: 65dB

AM TUNER

  • 530KHz to 1710KHz

  • Usable sensitive 0dB (mono S/N:20dB)

  • SNR 58dB

USB

  • USB 2.0
  • Max current supply 1.5A
  • USB Class: MSC (Mass Storage Class), and MTP (Media Transfer Protocol)
  • File system: FAT32, NTFS

BLUETOOTH

  • V4.2 dual

  • 4dBm Class2

  • 2.4GHz to 2.48GHz

CAMERA(S) VIDEO INPUTS

  • NTSC OR PAL video formats

HDMI INPUT

  • Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p

TOSLINK (OPTICAL)

  • Output: 48khz Variable

BACKGROUND IMAGE (USER)

  • File Format: JPG / PNG

  • Resolution: 1024 x 600

  • File size is not limited

AUDIO/VIDEO FORMATS AUDIO

  • MPEG-1 Audio Layer-3 (.mp3)

  • FLAC (.flac)

  • MPEG-2 Advanced Audio (.aac)

  • MPEG-4 Audio (.m4a)

  • Windows Audio (.wav)

  • OGG Audio (.ogg)

VIDEO

  • QuickTime (.mov)

  • MPEG-4 Video (.mp4)

  • Microsoft AVI (.avi)

  • MPG Video (.mpg)

  • MPEG Video 1/2 (.mpeg)

  • VOB DVD (.vob)

  • Flash Video (.flv)


  • JPEG (.jpg)

  • CompuServe GIF (.gif)

  • PNG (.png)

  • JPEG (.jpeg)

  • Bitmap(.bmp)

New Firmware

Click Here For Radio Firmware Download, Stinger UN1810 Update 09-03-21 Note: For Jeep or RAM Integrated Kits, this release requires Radio Pro Advanced Firmware Version 14, visit https://pac-audio.com/firmware-updates/ for the corresponding firmware download.

Release Notes:  Fixed Bugs

  • Fixes units getting stuck on the boot up screen.
CLICK FOR INSTRUCTIONS ON HOW TO UPDATE YOUR HEIGH10'S FIRMWARE
