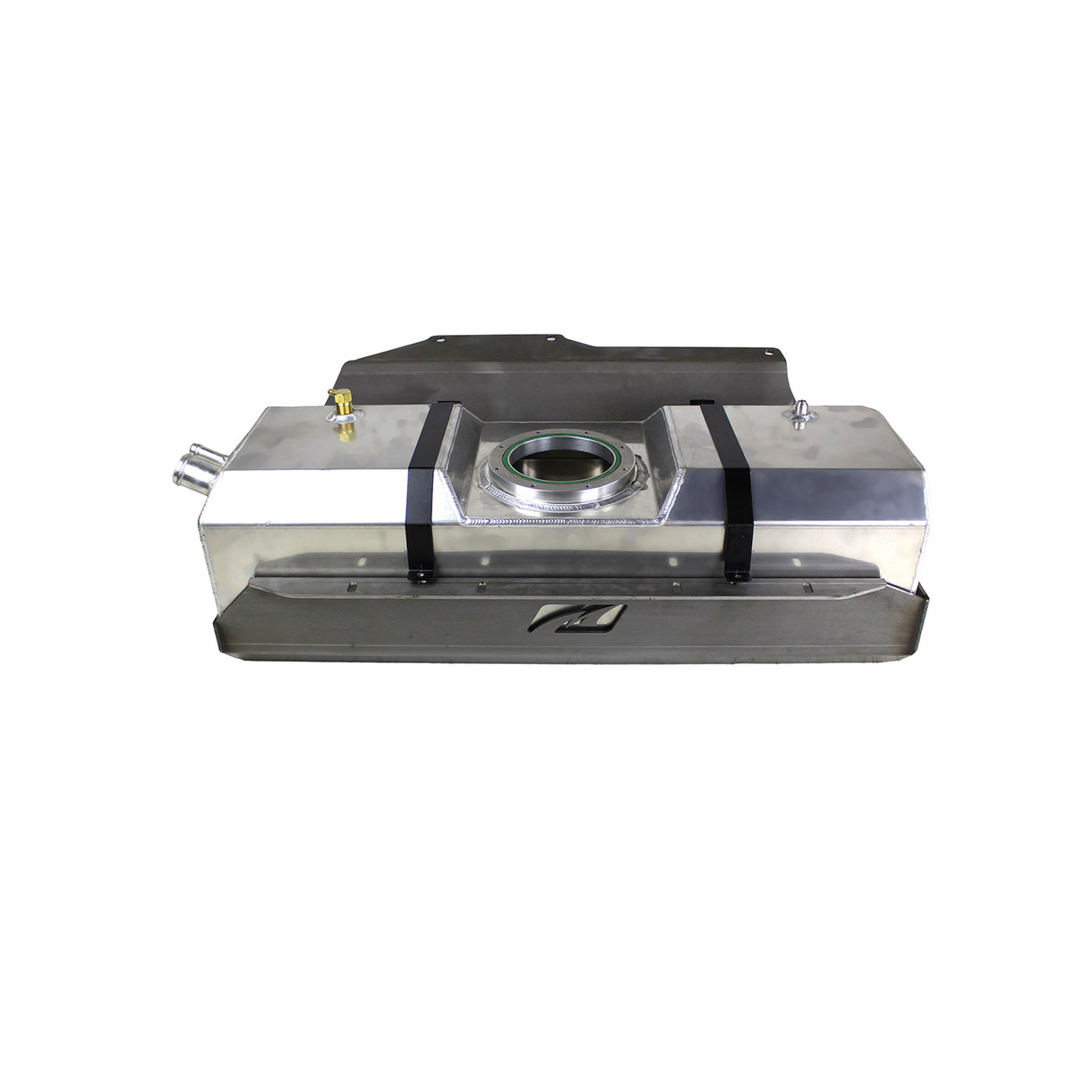

Stretched wheelbase tube fender rock crawling Jeeps have become very common on the trails. The Motobilt Stretched TJ Fuel Cell offers room to keep the tank underneath the Jeep and stretch the wheelbase in the rear up to 6 Inch depending on the axle you are running. The Motobilt Stretch Fuel Cell with skid plate is designed for hardcore wheeling and hold up for many years to come. Like all of the Motobilt tanks they are manufactured in house utilizing state of the art laser cutting and forming technology. We stand behind our tanks and guarantee them against manufacture defect.
Designed as a heavy duty upgrade to 1997-2006 Jeep TJ or LJ, this 14.5 gallon fuel tank features an all aluminum fuel cell constructed from 1/8 Inch thick aluminum sheet that is precision CNC laser cut and CNC press brake formed. The tank is TIG welded for superior weld strength and weld finish. The fuel fill and vent tubes are CNC machined then TIG welded to the aluminum tank body. These machined parts are positioned in the factory location and accept the factory fuel filler hose and vent tube from a 97-02 TJ (not included). TJ's made between 03-06 will need to purchase the older style fuel filler hose and vent.
The top side of the tank also features a roll over valve (included) and one 8-AN fitting for adding your vent tube (vent tube not included). We also include a 3/4 Inch thick machined aluminum mount location for the stock Jeep TJ fuel pump from a 2005-2006 model ONLY. This means if you have an older model TJ you will need to buy a fuel pump and pigtail to work with this fuel cell.
The sealing of the fuel pump is done via an integrated o-ring groove (o-ring not included). The o-ring this is sized for this fuel tight seal also fits a 2007-2018 Jeep JK/JKU fuel tank. The stock TJ fuel pump is securely sandwiched by an upper steel clamping ring and eight (8) 1/4 Inch hex bolts (fasteners included).
The Motobilt TJ Stretch Fuel Cell is fully protected by a heavy duty 3/16 Inch steel skid. The steel skid is fully MIG welded and perfectly mounts to your stock TJ frame. The aluminum fuel tank is secured to the steel skid using two steel hold down straps complete with adjustable fasteners.
The Motobilt TJ Stretch Tank does NOT require a body lift to install. Will NOT work with Motobilt TJ or LJ Back Half Kit.
Specifications:
Notes:
Specifications:
| Country of Origin | US |
| Sold As | Each |
| Availability | Available |
| Thickness | 3/16 Inch |
| Universal | No |
| About |
Motobilt is a manufacturing company located in Ozark Alabama dedicated to producing quality American Made aftermarket parts for Jeeps and other off-road vehicles. Motobilt was founded in 2012 by, an off-road industry pioneer, Dan DuBose. We currently employ around 60 professionals in our 85,000 sq ft plant. We produce our Motobilt product line and manufacture for many other companies in the USA. |
