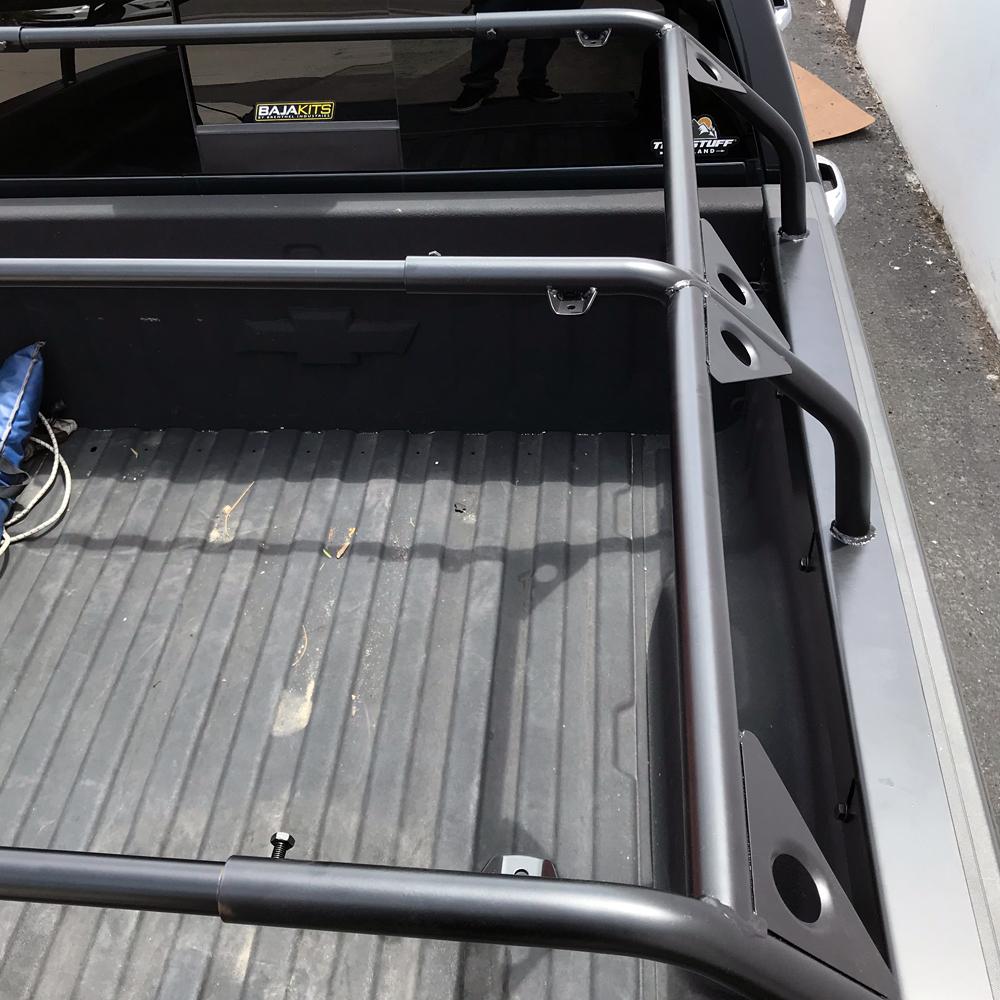

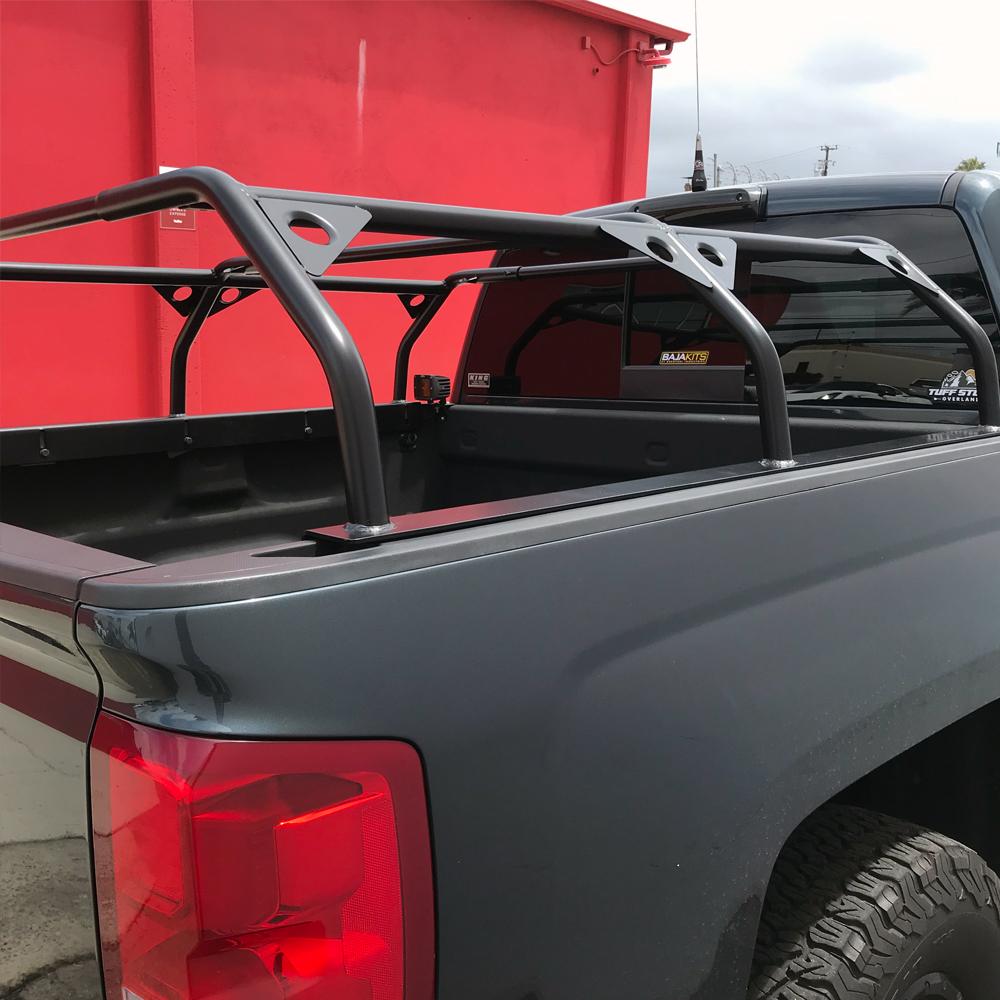

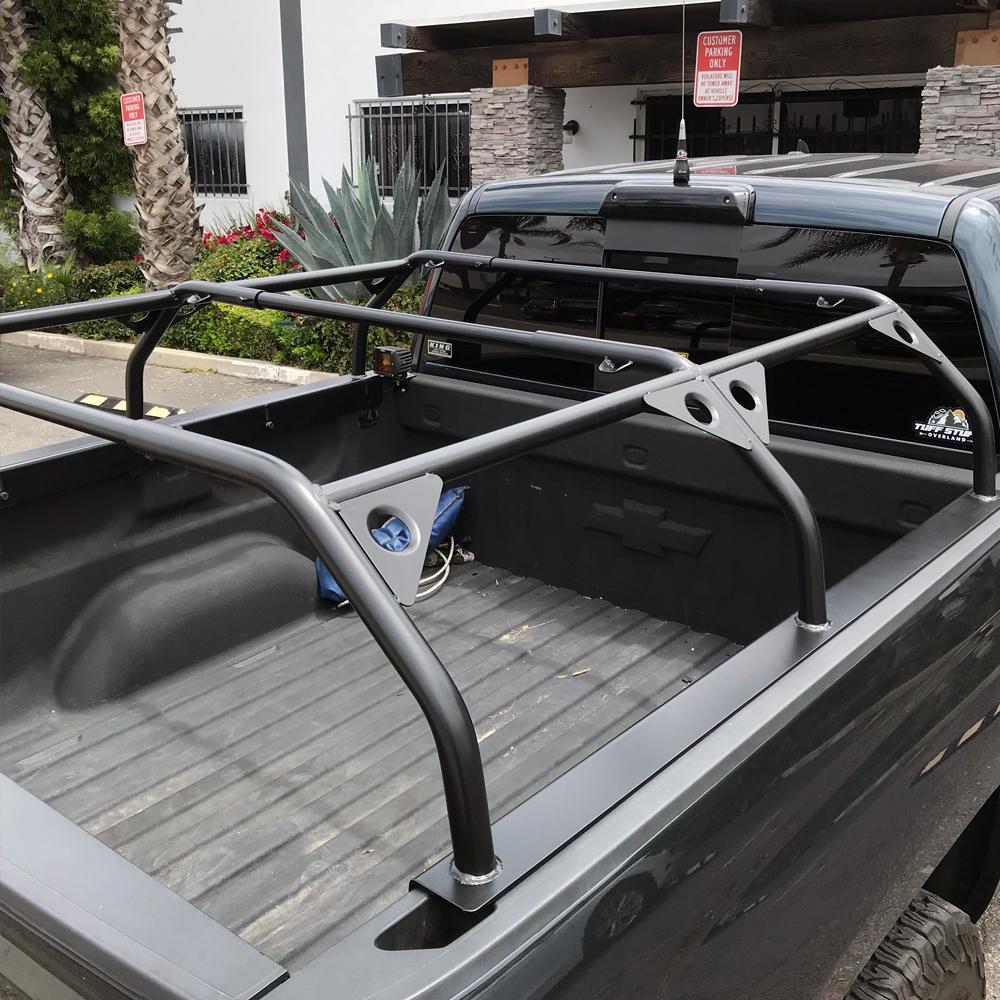

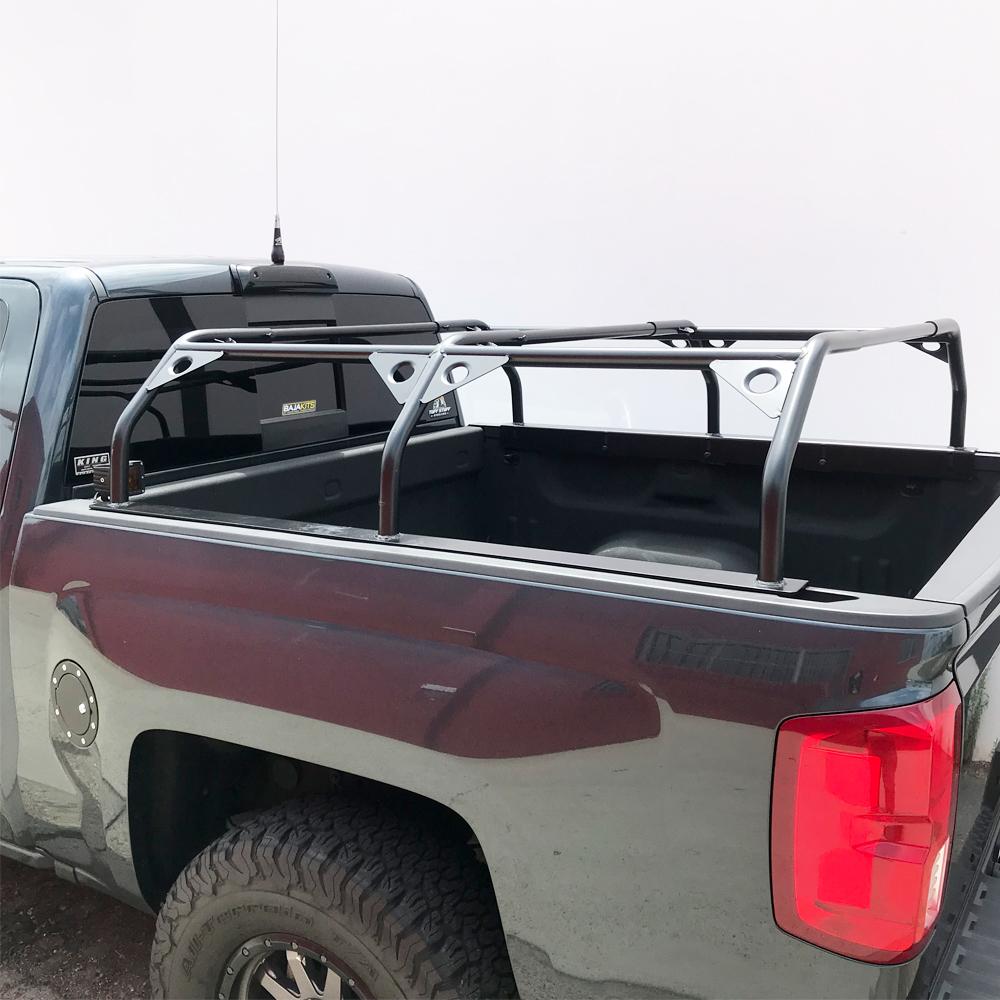

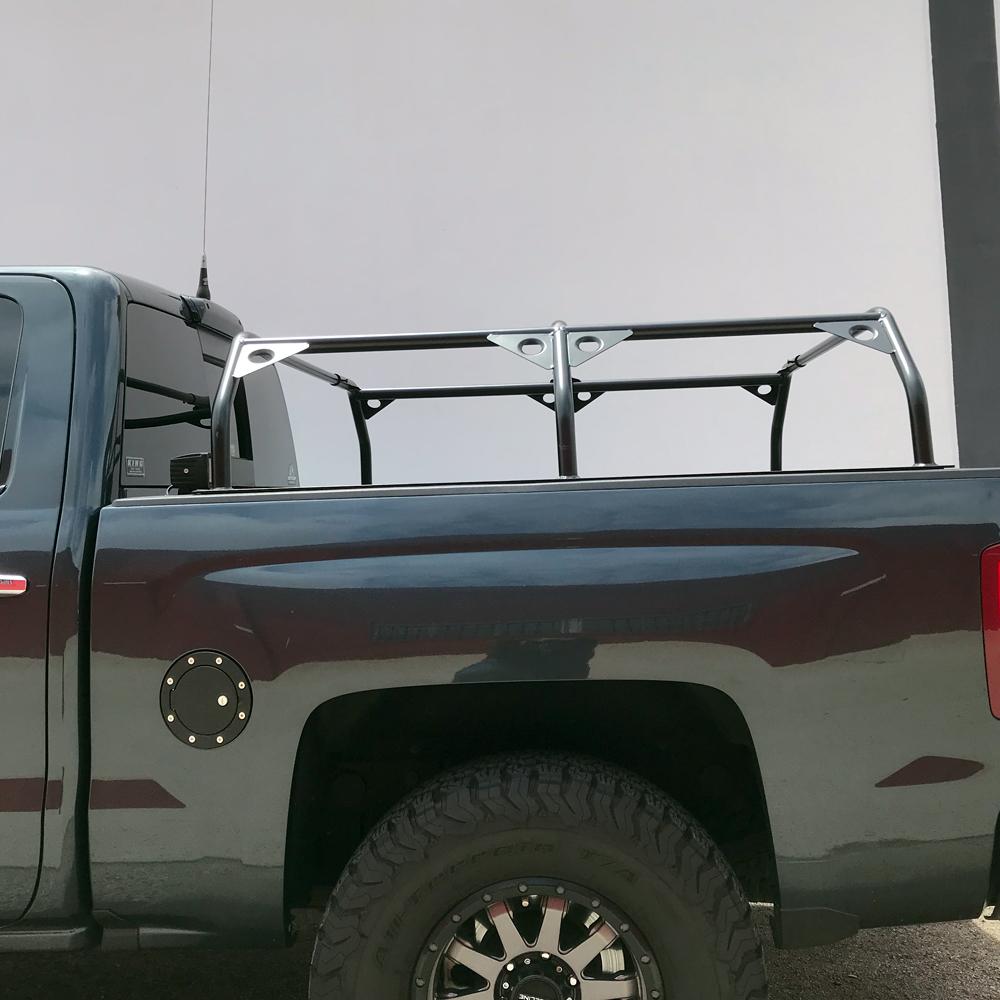

The Tuff Stuff® 51" bed rack is ideal for use with most roof top tents and truck beds. Our bed rack is designed to universally install directly on top of any truck bed rail using our provided pinch plates.

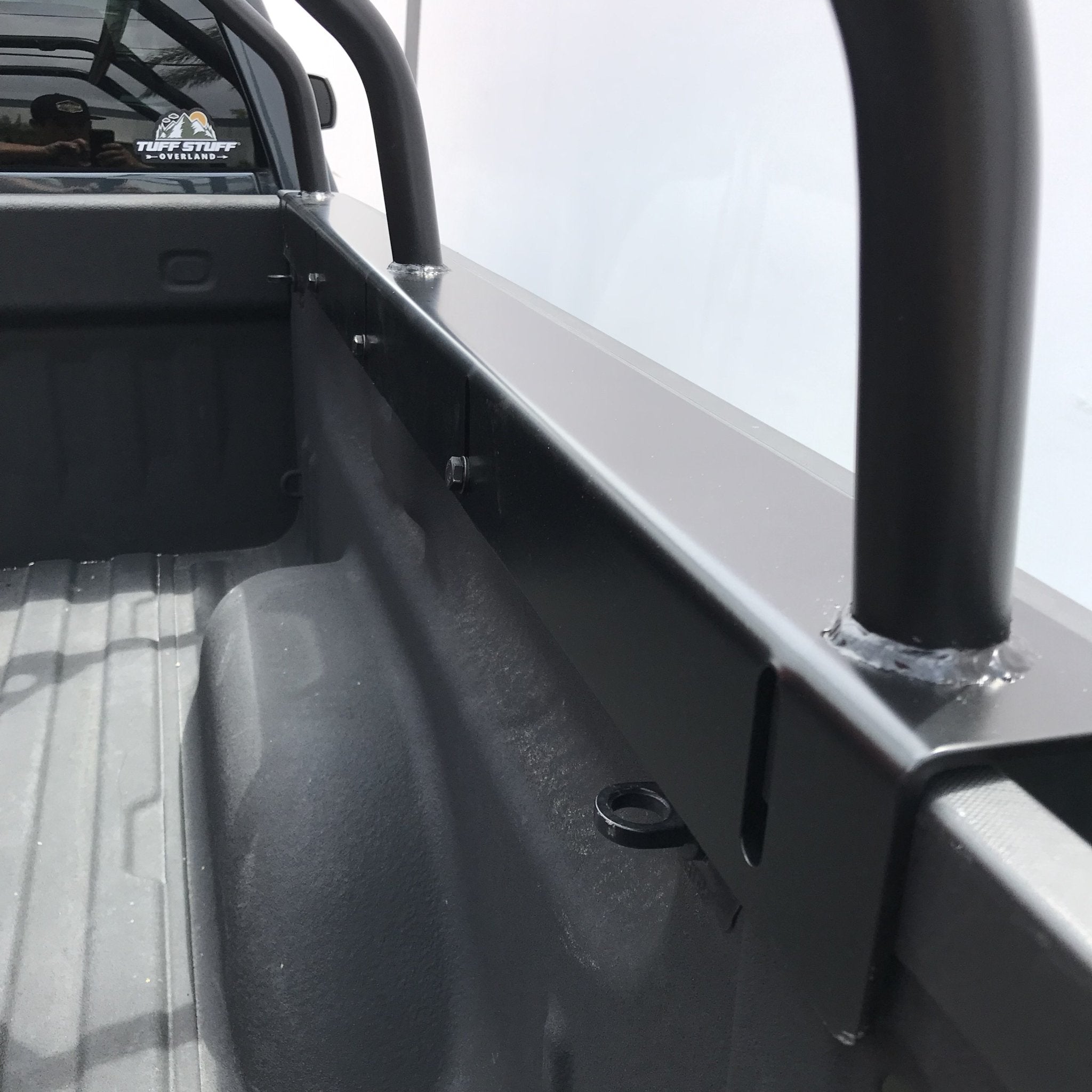

Due to this rack being universal (not made for any specific vehicle) we have included custom pinch plates that will pinch the inner lip of your bed rails. This allows the installation to be performed without drilling holes into the bed rails.
Our bed rack WILL NOT FIT if there has been a tonneau cover, or any other accessories installed that affect the inner walls of the bed rails.

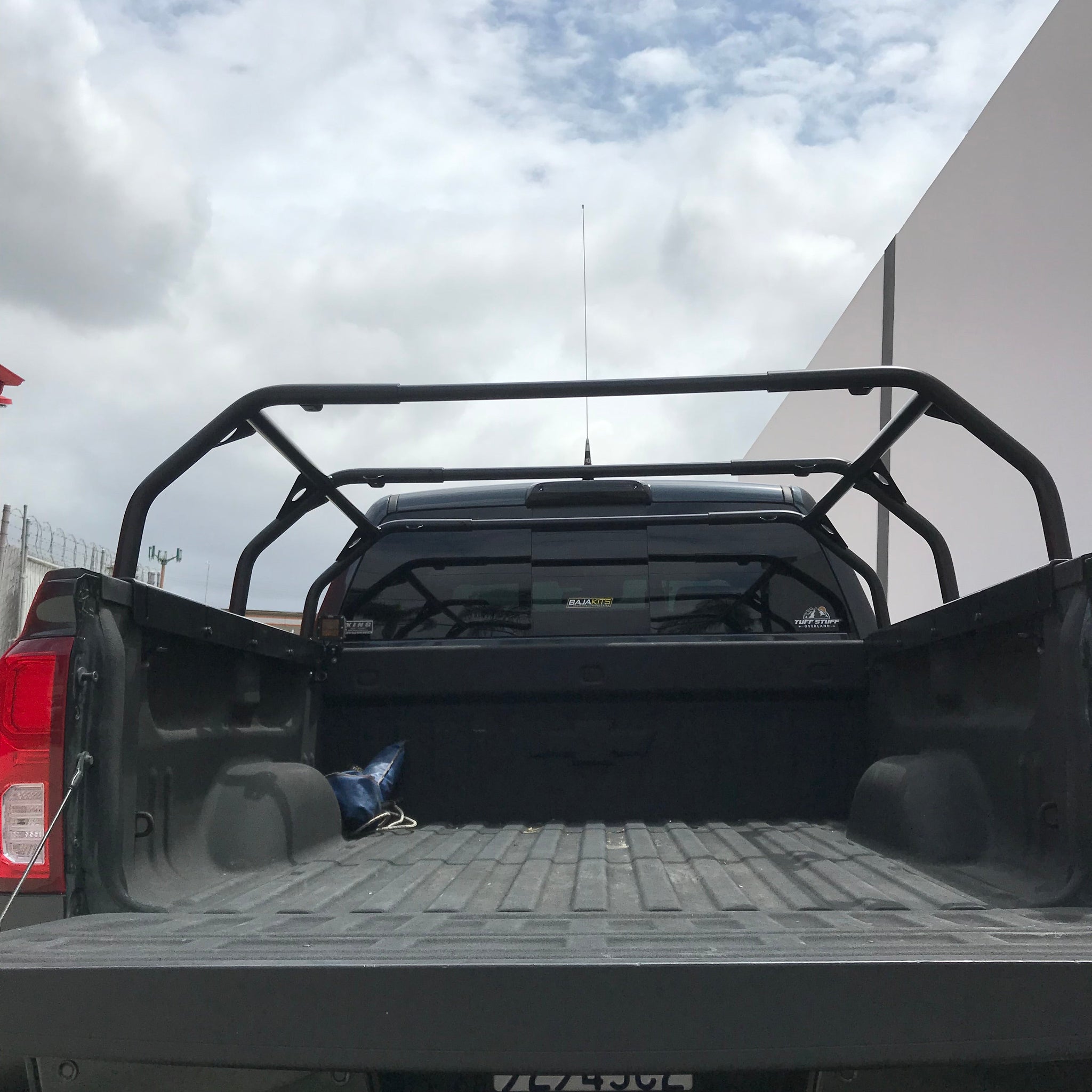

Our rack uses a unique sliding center rail which allows the rack to be installed on various widths of beds from full-size Ford F350’s to mid-size Toyota’s.
For Toyota's using the factory-installed cargo rail system, our rack will perfectly align with your rail and would require the use of custom T-nuts that can accept 3/8″ diameter bolts. These can be purchased as an addon.
Important:
1st generation Ford Raptor beds have no lip to attach the rack, so you will have to use nut-inserts, self-drilling screws, or anchors to install the rack on the bed.
Specifications
Dimensions L/W/H: 51 x 48 x 14.5 (max-width is 68 inches)
Distance from bar-to-bar: 48 inches
Distance from top of bed rail to top of rack: 14.5"
Distance from top of bed rail to bottom of rack: 13"
Tube diameter: 1.5" (the center adjustable tube is 1.25")
Capacity Static: 800 lbs
Capacity Dynamic (Driving down the road): 650 lbs
Powder-coated for a long-lasting finish and protection
Our rack uses a unique sliding center rail which allows the rack to be installed on various widths of beds from full-size Ford F350’s to mid-size Toyota’s.
For Toyota's using the factory-installed cargo rail system, our rack will perfectly align with your rail and would require the use of custom T-nuts that can accept 3/8″ diameter bolts. These can be purchased as an addon.
Important:
1st generation Ford Raptor beds have no lip to attach the rack, so you will have to use nut-inserts, self-drilling screws, or anchors to install the rack on the bed.
Instructions
Remove the two (2) sides from the packing and the two (2) crossbars.
Place the crossbars into the Tubes on both sides of the side brackets, do not lock in place.
Have someone help you place them on your bedsides.
Provided are the "Lock-in Place" brackets that will squeeze the sides to the bed.
Toyota's use the factory-installed racks and we have T-Nuts that can be purchased separately to install on Toyota’s.
Once you have adjusted the sides to the cross brackets lock the nuts down for the cross brackets and tighten the sides.
Videos
Q & A
Can this fit onto any truck?
Yes, this is a universal mounting system.

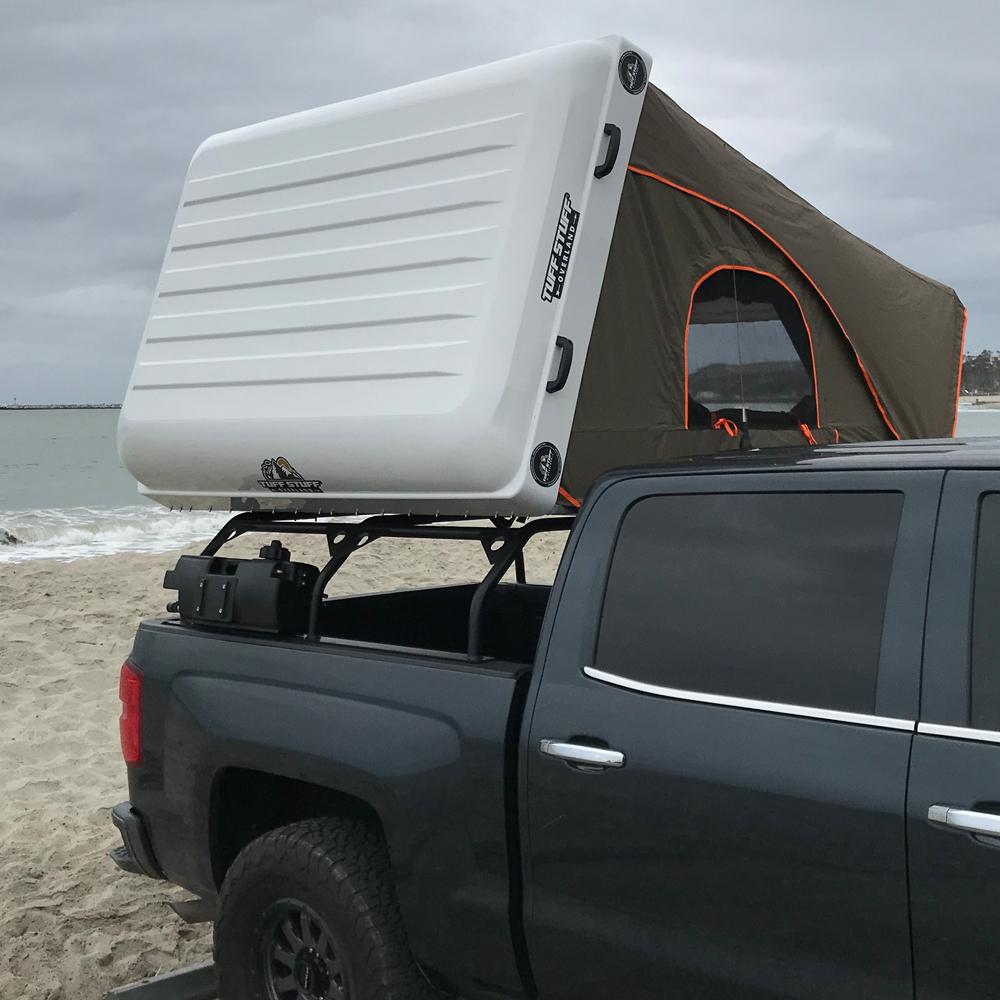

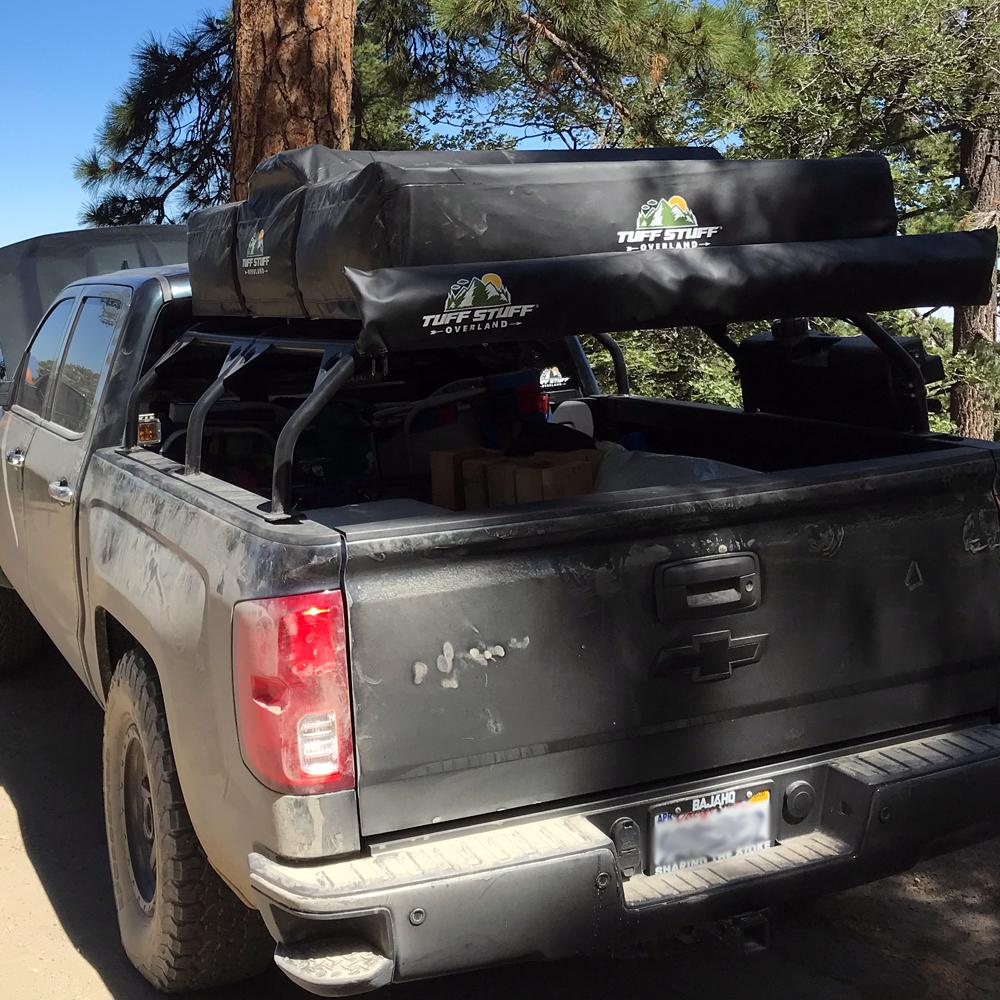

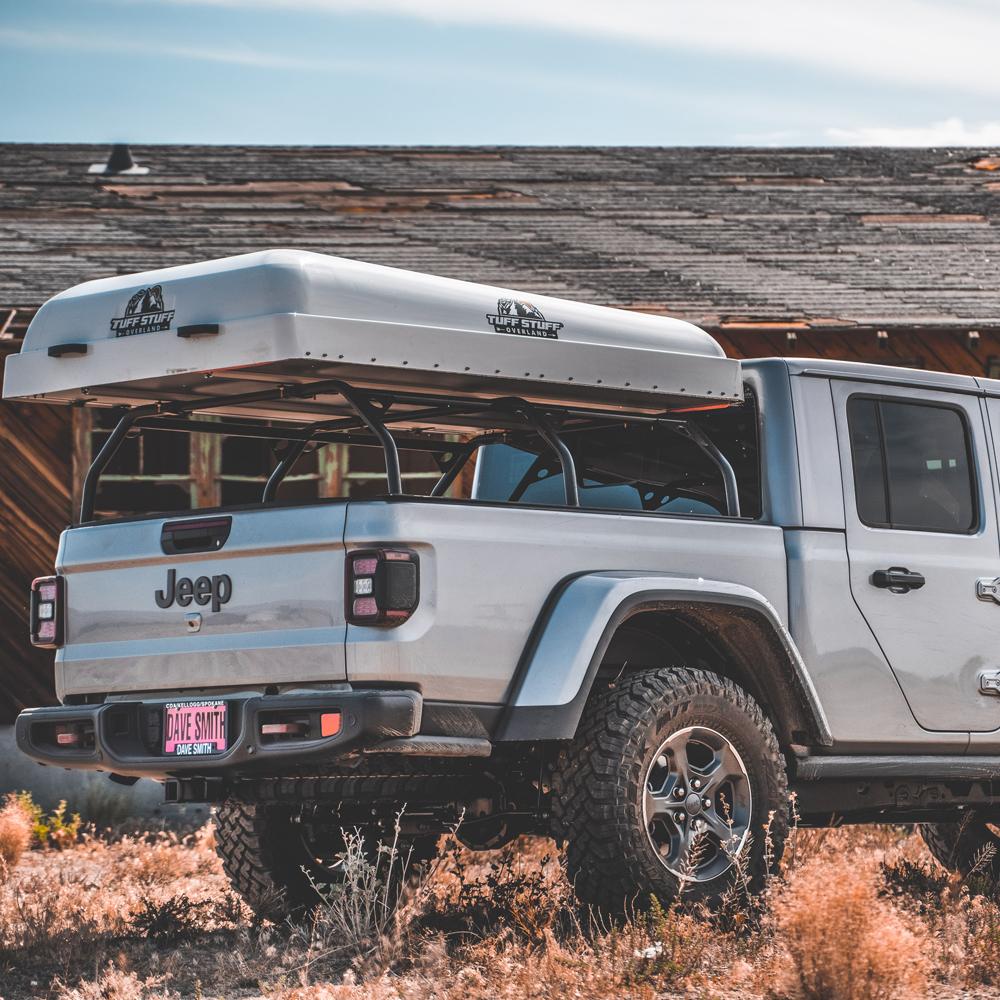

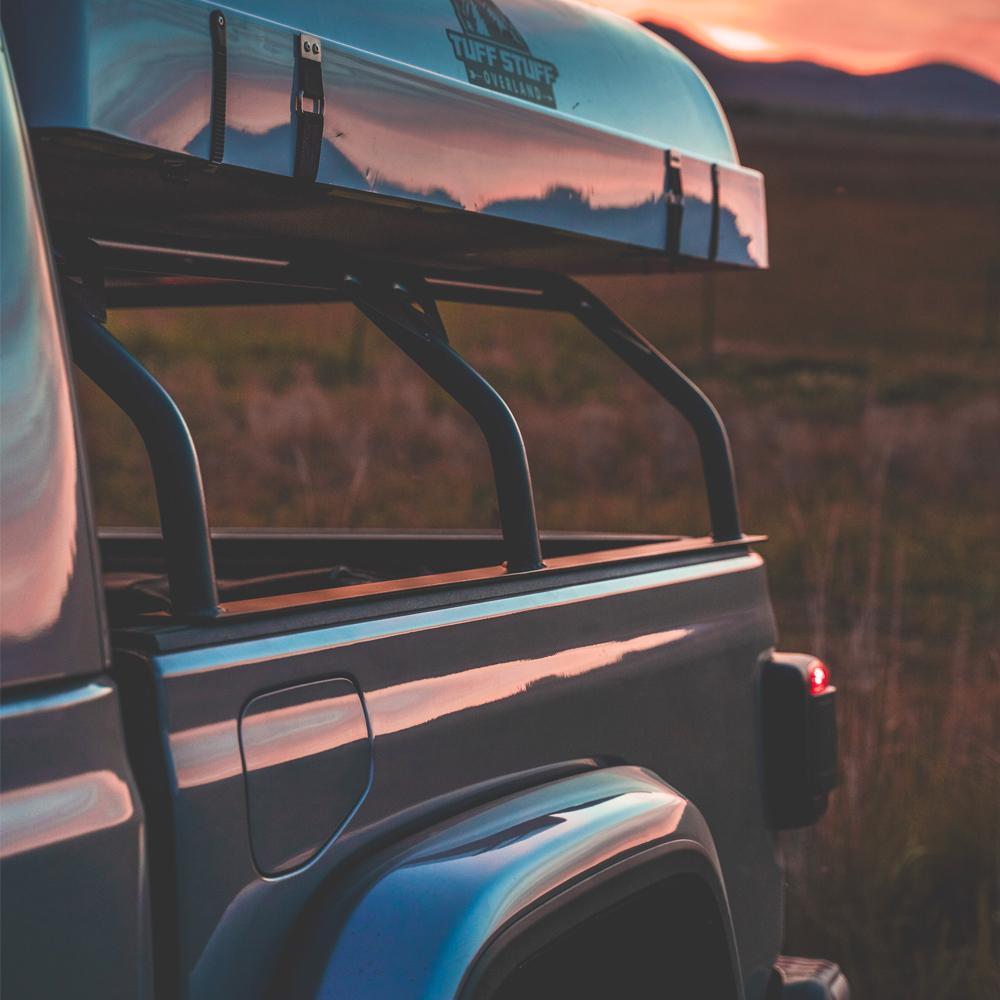

Which Tuff Stuff Overland tents can be used with this rack?
The Elite, Alpha, and Stealth tents will properly fit with this tent. Any other brand tents that are 51" or longer will also mount. Keep in mind, you want all 3 bars supporting the bottom of the tent.
What can I place on top of these crossbars?
They are designed for a Roof Top Tent but you can pretty much mount anything to the top of this rack. Things like lumber, piping, etc.
Can we mount other accessories to the mount?
Absolutely, you can mount sand tracks, farm jacks, RotopaX cans, shovels to the side, and just about anything you need to take on the offroad adventure.
Can I use my tonneau cover and my tent rack at the same time?
No, unfortunately, you have to pick one or the other. We're working on a rack design that will allow for use of both at the same time. If interested, please send us an email and we'll add you to our list.
