X 2-Channel Ultra Compact Class D Amplifier 2 x 140 Watts Rms @ 4-ohm
Secure Checkout
Shop by Categories
Secure Checkout

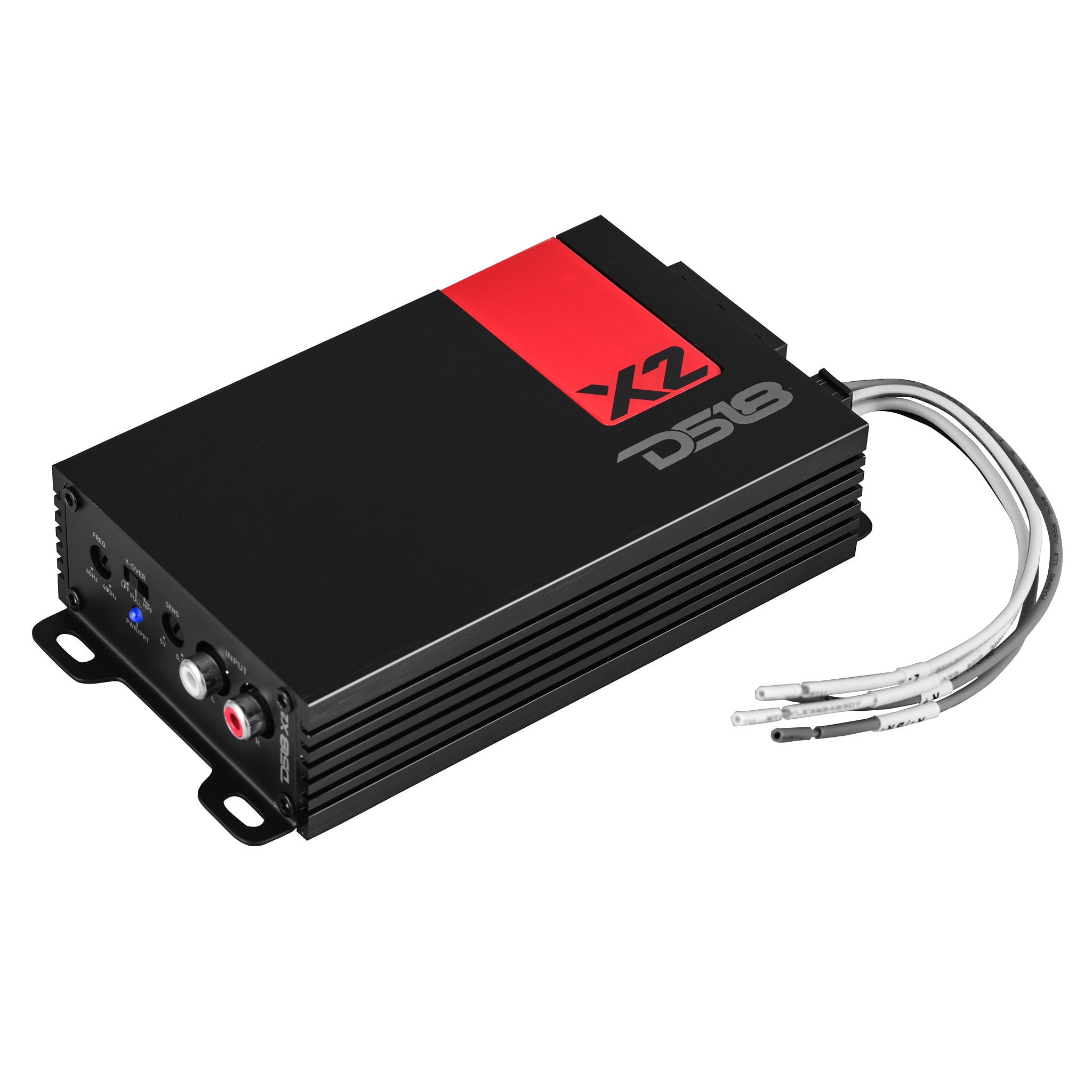

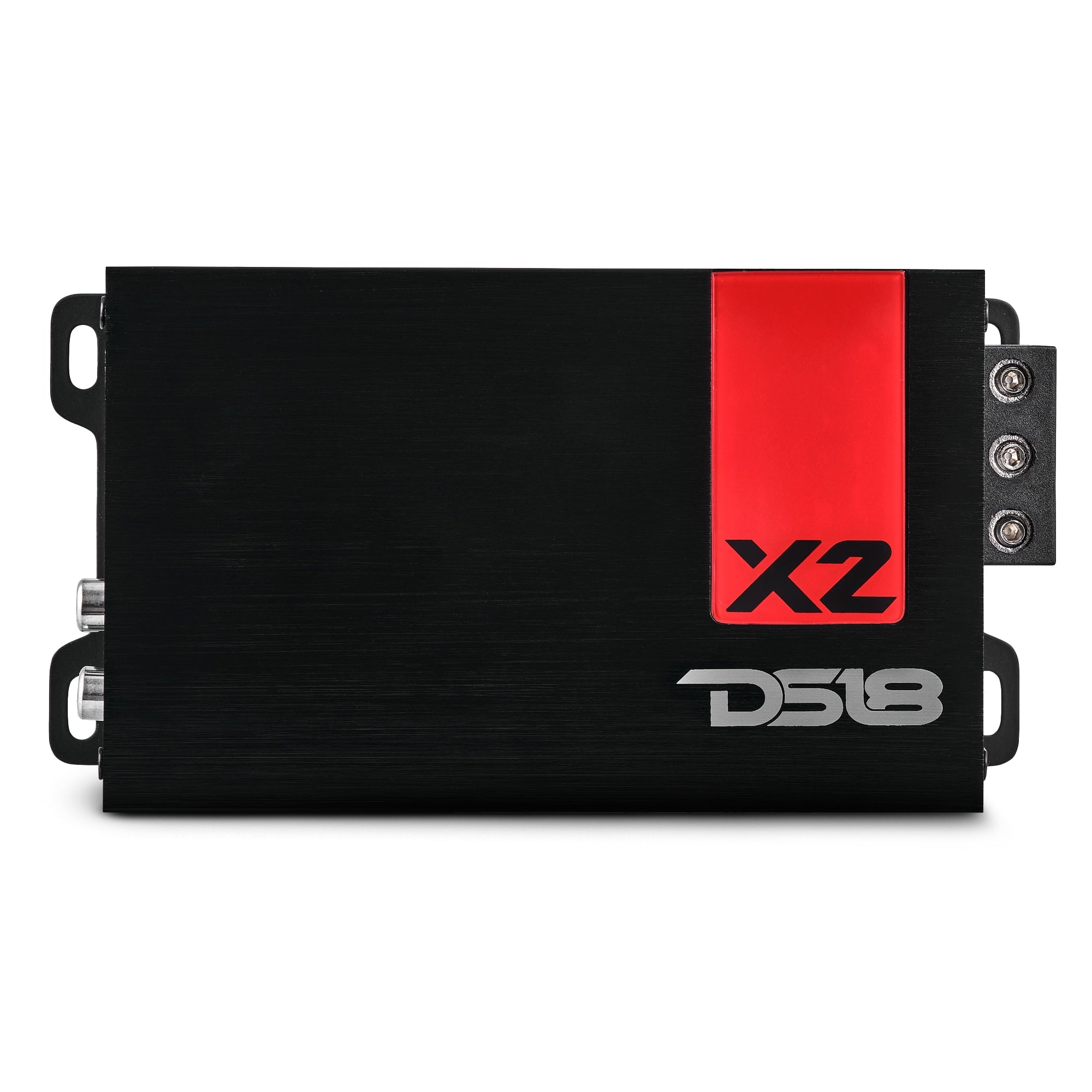

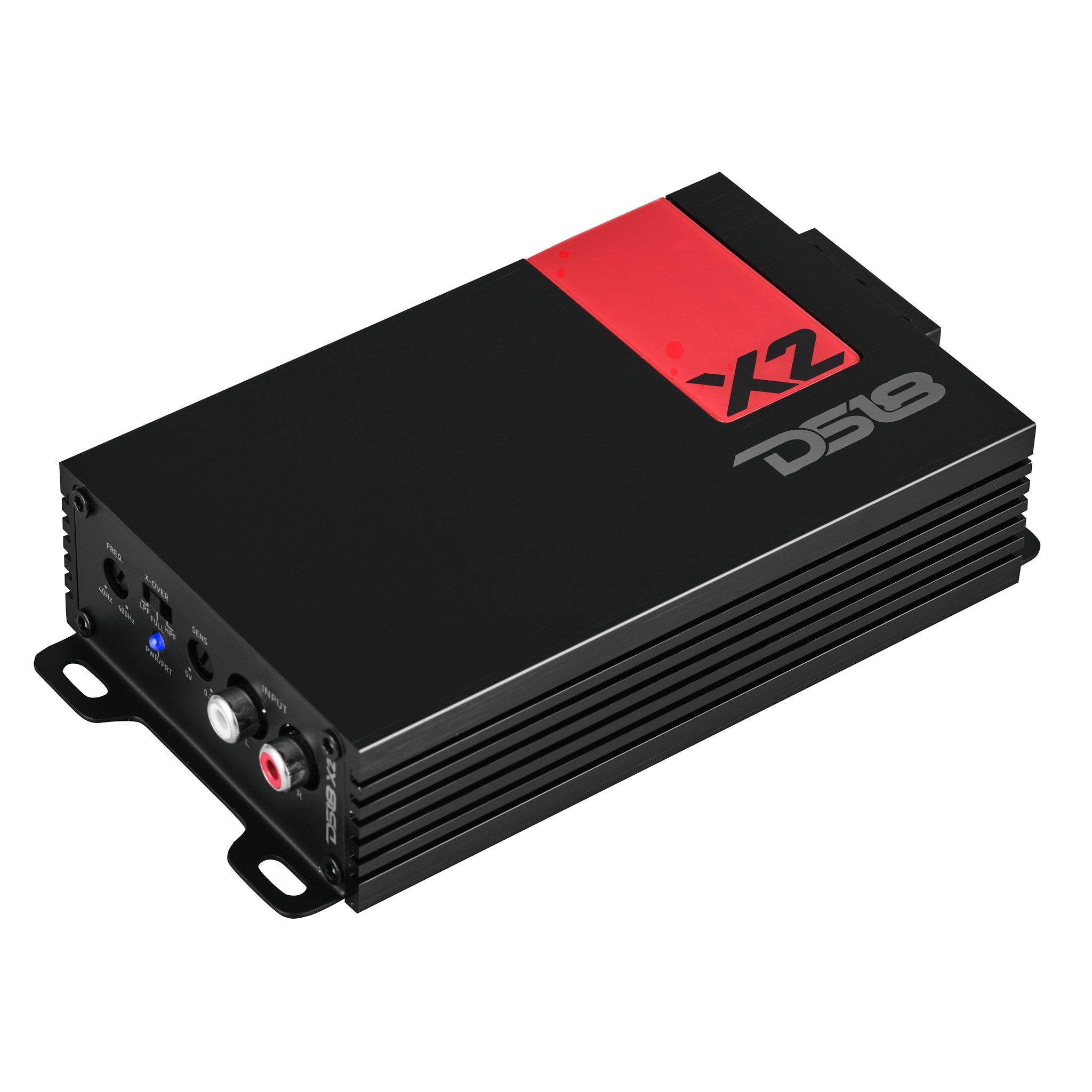

Amazing power and an amazing small footprint is what the DS18 X2 amp is all about. This tiny amp packs a powerful punch all while fitting in the palm of your hand! It is a perfect selection for audiophiles cramming audio in tight spaces. For example, you can fit multiple X series amps in most motorcycle fairings powering an entire system all while safely tucked away.
Small enough to fit in your hand but powerful enough to power four high powered speakers, this little powerhouse pumps out 140 watts RMS x 2CH at 4 ohms and 230 watts RMS x 2CH at 2 ohms which is enough to get super loud sound with great clarity.
Highlights
Great For





| CLASS | CLASS-D |
| AMPLIFIER TYPE | MICRO STEREO FULL RANGE AMP |
| CHANNELS | 2 |
| TOTALWATTS (PEAK) | 1140W |
| RMS POWER @ 4 OHMS | 140W x 2CH |
| RMS POWER @ 2 OHMS | 230W x 2CH |
| RMS POWER @ 1 OHMS | - |
| RMS POWER @ 4 OHMS BRIDGE | 380W x 1CH |
| FREQUECY RESPONSE | 20Hz - 20KHz |
| SIGNAL/NOISE RATIO | >90 dB |
| EFFICIENCY @ 4 OHMS | >80% |
| DAMPING FACTOR | >201 |
| THD % | <0.2% |
| LOW LEVEL INPUT RANGE | 0.2-5V |

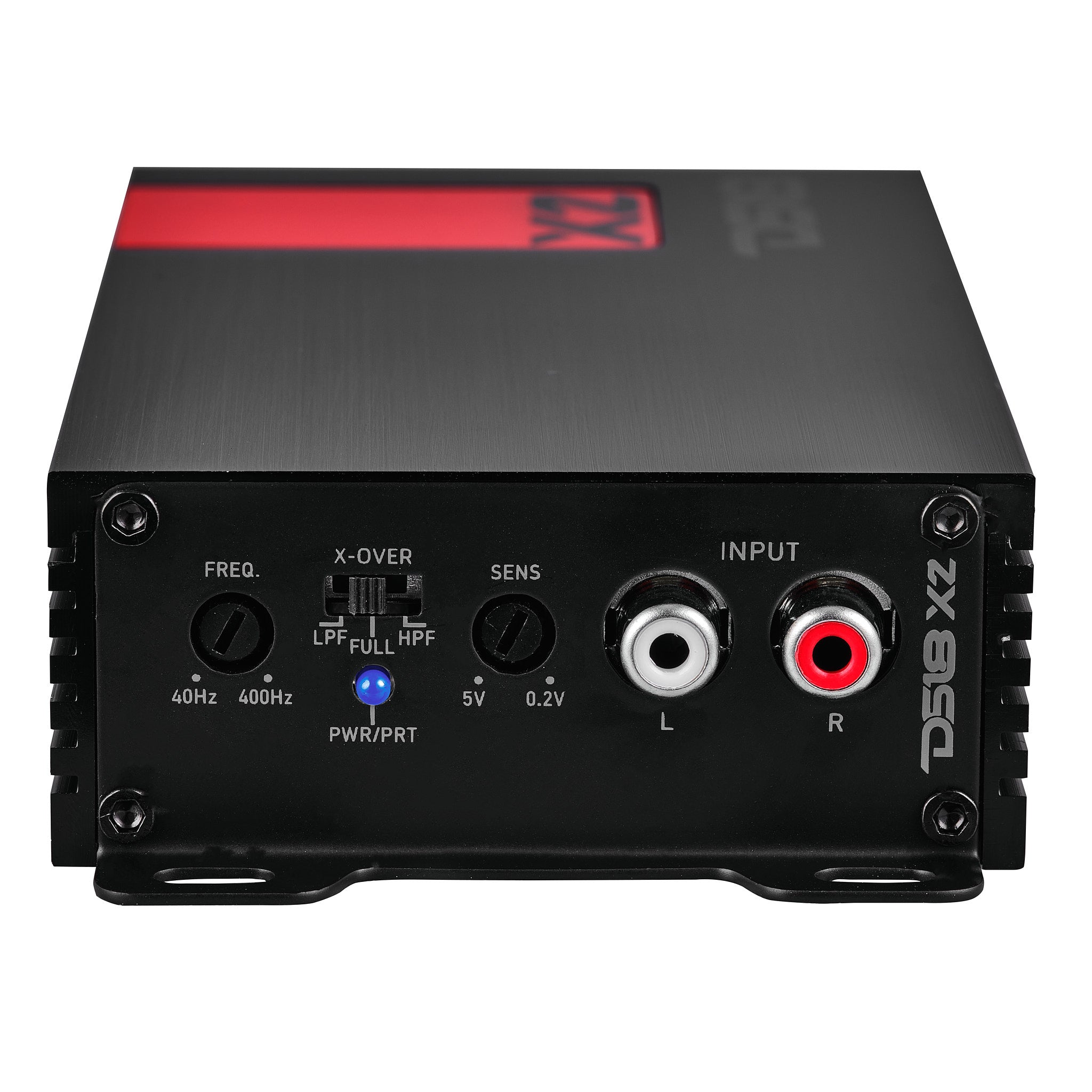

| SELECTABLE X-OVER | LPF/FLAT/HPF |
| X-OVER FILTER RANGE | 40Hz - 400Hz |
| BASS BOOST RANGE | - |
| BASS BOOST FREQUENCY | - |
| INFRASONIC FILTER | - |
| PHASE SELECTOR | - |
| MINIMUM IMPENDANCE | 2 OHMS |
| LED INDICATOR | POWER/PROTECTION |
| POWER INPUT SIZE | 12GA |
| FUSE RATING | 40A |
| REMOTE LEVEL CONTROL | - |
| THERMAL PROTECTION | YES |
| OVER-LOAD PROTECTION | YES |
| DC OUTPUT PROTECTION | YES |
| SHORT CIRCUIT OUTPUT PROTECTIONVOLTAGE INPUT PROTECTION | YES |
| VOLTAGE INPUT PROTECTION | YES |
| DIMENSIONS LxWxH (INCHES) | 5.54 x 3.24 x 1.37" |
| HEATSINK LENGTH | 4.75" |
| COMPACT SIZE TO EASY INSTALLATION FOR ANY APLICATIONS | YES |
| STABLE/RELIABLE FOUR LAYERS TRACES PCB DESIGN | YES |
| SURFACE MOUNT COMPONENT TECHNOLOGY | YES |
| AUDIO PRECISION QUALITY CONTROL VERIFICATION | YES |
| CONFIGURATION 2CH/4CH INPUT SELECTOR | NO |
