ZR 15" Subwoofer 750 Watts Rms DVC 2-Ohm

DS18
ZR15.2D
Car Audio : Subwoofer
$227.95

Secure Checkout

  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

customers are viewing this product
ZR 15" Subwoofer 750 Watts Rms DVC 2-Ohm

DS18 ZR15.2D 15" Car Subwoofer with 1500 Watts 2-Ohm DVC

The ZR subline is an amazing entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.

This 15 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to perfectly match your amplifiers optimal impedance. This model comes with a 2.5 inch aluminum voice coil that handles 750w RMS and 1500w max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout and outside the vehicle.

Highlights

  • Large foam surround giving great XMAX and bass precision while keeping great cone control when the subwoofer is close to maximum power.
  • Great power handling of 750w RMS and 1500w Max through a high strength 2.5 inch aluminum voice coil.
  • Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, DS18 dust cap, and high quality push terminal connectors.
  • Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes making them highly versatile.

    Technical Details
    SPECIFICATIONS
    Nominal Diameter 15”
    Nominal Impedance 2+2 Ohms
    RMS Power Handling 750W
    MAX Power Handling 1500W
    Sensitivity (1w/1m) 82 dB
    Frequency Response 21Hz - 200 Hz
    Recommended Lo Pass Crossover 80 Hz
    MOTOR
    Voice Coil Diameter 2.5" / 61.6mm
    VC Former Material Aluminum
    Winding Material Copper
    Cone Material Non Pressed Paper
    Dust Cap Material PPI
    Surround Material Foam
    Basket Material Steel
    Basket Color/Finish Matte Black
    Magnet Material Ferrite
    Magnet Weight 100 oz
    Displacement Volume 0.11 ft3
    THIELE & SMALL PARAMETERS
    Equivalent Volume 76.5 L
    Excursion (one way) 25mm
    Free Air Resonance 26Hz
    Mechanical Factor 4.34
    Electrical Factor 0.82
    Total Factor 0.69
    Moving Mass 345.9g
    Compliance 75.4µ m/N
    BL Factor 8.58
    Voice Coil Inductance 567.8m mH
    Cone Area 834.69 Cm2
    DC Resistance 1.8 + 1.8 ohm
    Efficiency Bandwidth Product 31.7

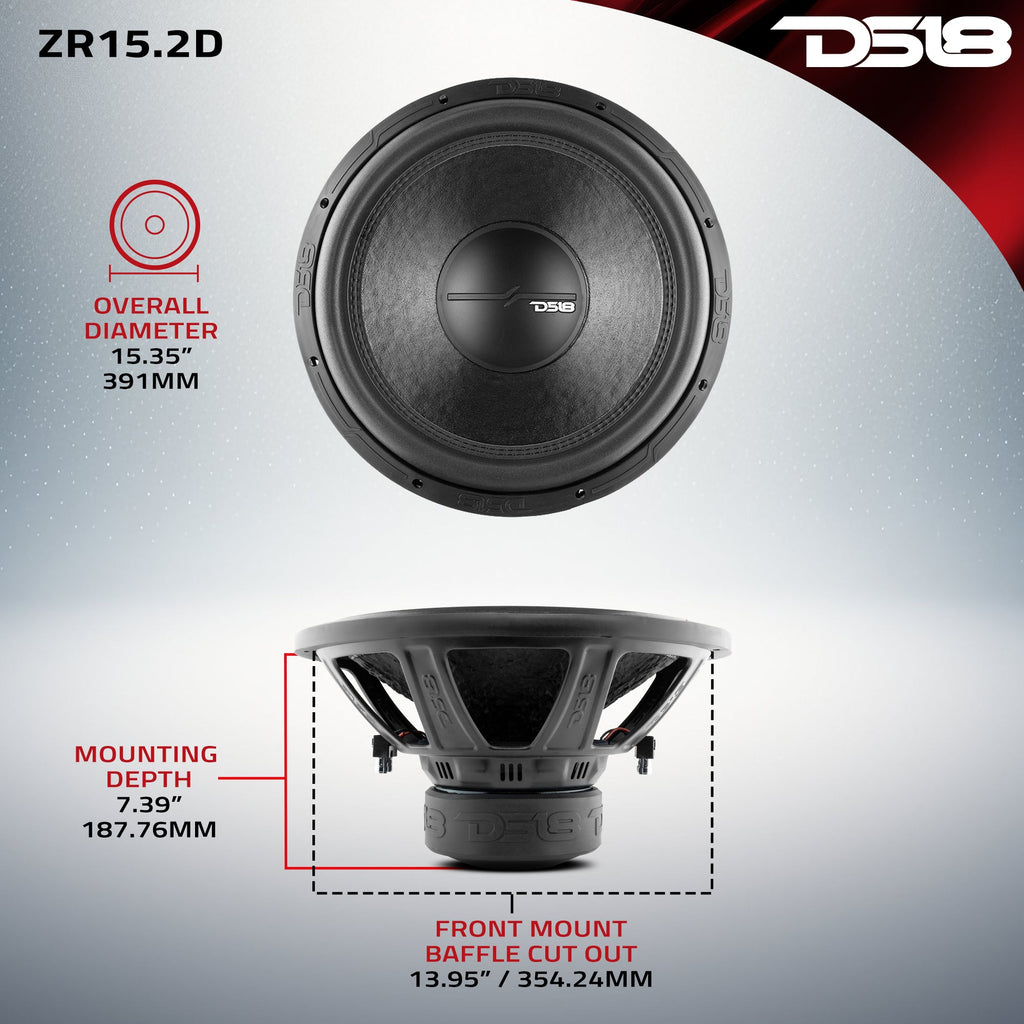

    MEASUREMENTS
    Overall Diameter 15.35” / 391mm
    Overall Depth 8.41”/213.56mm
    Front Mount Baffle Cutout 13.95”/354.24mm
    Mounting Depth 7.39”/187.76mm
    Motor Diameter 6.1" / 155mm


    Box Info
