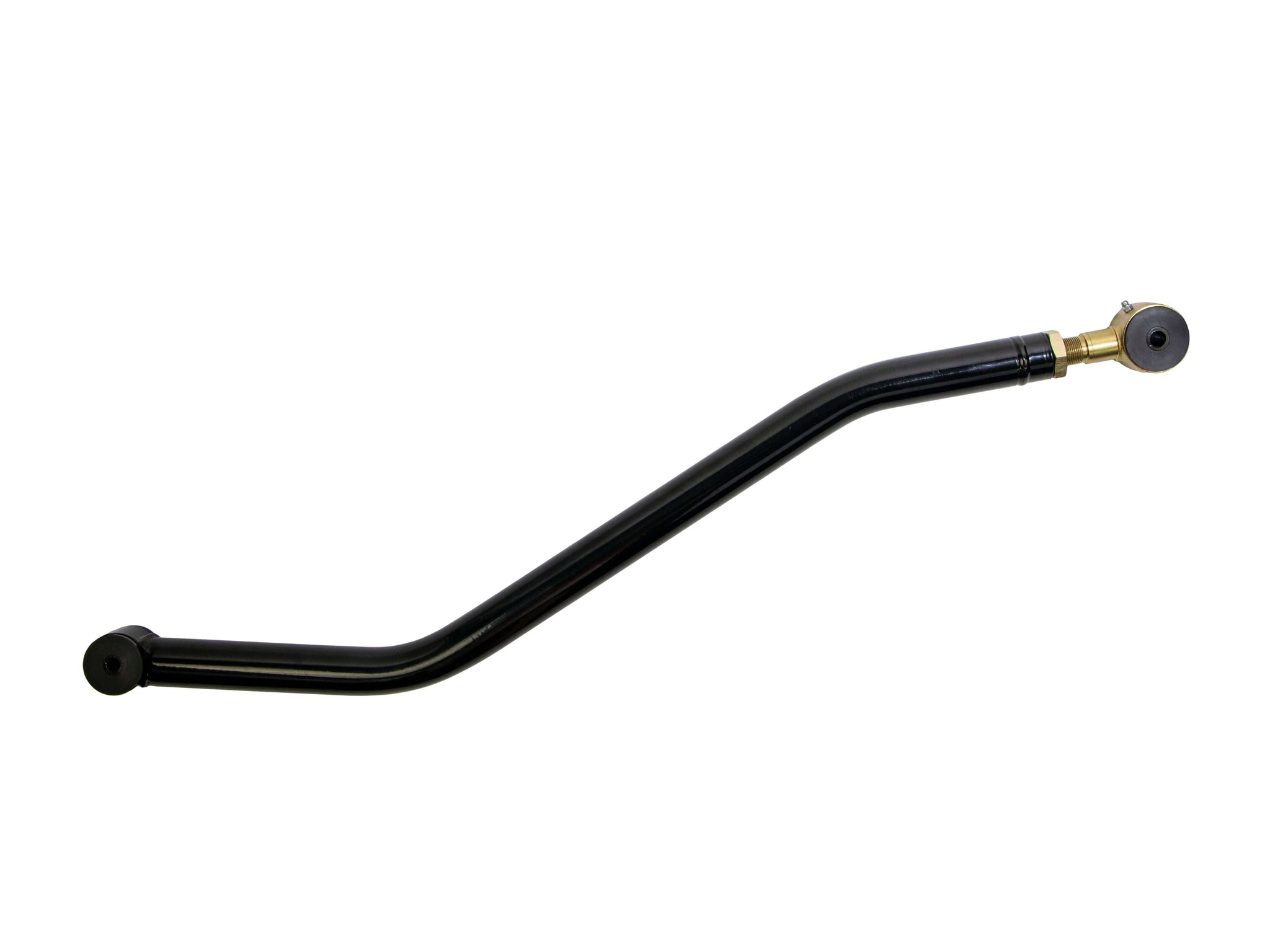

Rusty's Adjustable Front HD Track Bar - 5-8" Lift (XJ, ZJ)
Secure Checkout
Shop by Categories
Secure Checkout
IMPORTANT:
This track bar requires the use of Rusty's HD Track Bar Frame Mount for your application (XJ/MJ/ZJ Applications: RC-TB160-UV). This track bar is NOT compatible with factory track bar mounting location or other after-market track bar mounts.
This product is designed for XJ Cherokee/MJ Comanche and ZJ Grand Cherokee models with 5"-8.5" of suspension lift.
IMPORTANT :
This track bar requires the use of Rusty's HD frame mount and is NOT compatible with the factory frame mount or other aftermarket mounts. If you do not already have Rusty's HD frame mount, we suggest ordering Part # RC-TB200-UV, which includes this track bar and the frame mount as a complete package.
Rusty's suggests that this Track Bar ONLY be used on vehicles with 5" or more of lift. For vehicles with less than 4", we recommend our RC-TB199-UV HD Track Bar.
The Track Bar locates the axle side-to-side in relation to the vehicle's frame. A suspension lift changes the operating angle of the track bar and makes the effective length of the track bar shorter, which shifts the axle off-center. This is very noticeable with lifts over 2 inches. If your vehicle is already lifted, view it from the front and see if the axles are centered underneath the body; more than likely the front axle is shifted over to the driver side.
Most manufacturers include some sort of bracket to lower the track bar mounting point on the frame or raise the track bar's mounting point on the axle. The problem with this method is that the vehicle may get too much or not enough track bar correction using these types of brackets. The additional stress created by the extra leverage of the relocation brackets can also lead to cracks and ultimately failure of the track bar mounts. These brackets also seem to never stay tight and can force the track bar's operating angle to be out of phase with the steering linkage, which creates all sorts of handling quirks.
Due to the popularity of long-travel suspension kits over 5 inches, track bars that use tie-rod style ends wear quicker and limit travel. With the Rusty's HD track bar system, you will get full suspension travel without binding the track bar. The Rusty's track bar eliminates the tie rod end and has poly bushings at both the axle and the frame end. The track bar is constructed from 1.50" x .250" wall DOM tubing, while both the track bar and the frame mount have a durable black powder coat finish.
Fitment Information:
This product is designed for XJ Cherokee/MJ Comanche and ZJ Grand Cherokee models with 5"- 8.5" of suspension lift.
For applications with 2.5"-5" of suspension lift we suggest using Part# RC-TB122-UV.
For applications with (stock height) 0"-2.5" of suspension lift we suggest using Part# RC-TB111-UV.
Replacement Components:
Fixed End Replacement Bushing (Axle Side): R2327-10
Adjustable End Replacement Bushing (Frame Side): R20769-12
OR
Adjustable End Replacement Bushing (Frame Side): R2274-12
Adjustable End Replacement Loop End (Frame Side): SI-200
Please make sure to confirm bushing part numbers of existing bushings before ordering replacement bushings/loopends.
| |
